To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Take out the screws (C) and take down the
3)
dashboard (B).
Undo the screw (D).
4)
Set the burner mount (E) at a distance of at a
5)
distance of 17 mm and tighten the screw (D).
Replace the control panel (B) and the knob (A)
6)
on completion of the operation.
To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Take out the screws (C) and take down the
3)
dashboard (B).
Undo the screw (D).
4)
Set the burner mount (E) at a distance of 20
5)
mm and tighten the screw (D).
Replace the control panel (B) and the knob
6)
(A) on completion of the operation.

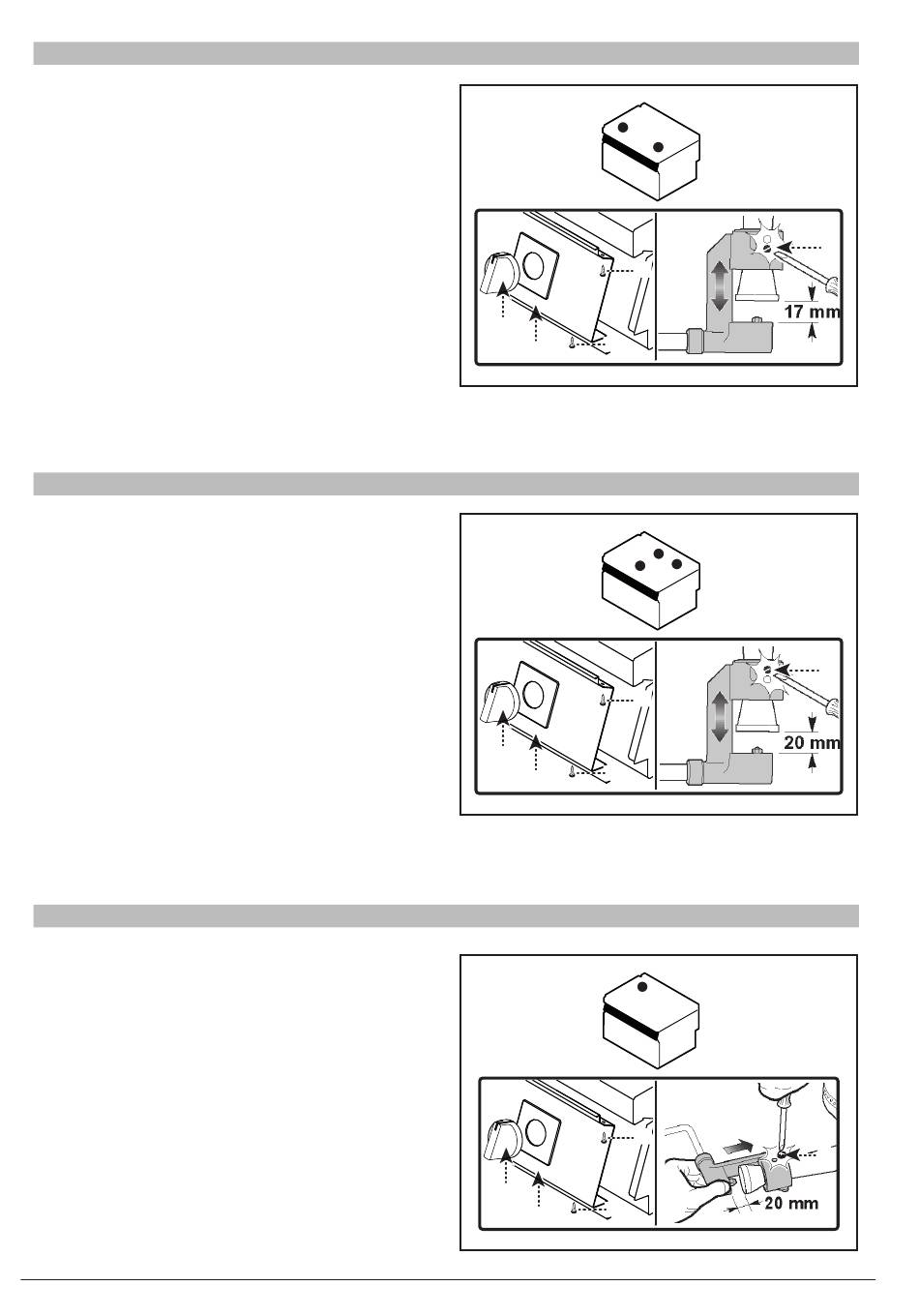

ADJUSTING TOP BURNER PRIMARY AIR (10 KW)
To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Take out the screws (C) and take down the
3)
dashboard (B).
Undo the screw (D).
4)
Set the burner mount (E) at a distance of 20
5)
mm and tighten the screw (D).
Replace the control panel (B) and the knob
6)
(A) on completion of the operation.
16
ADJUSTING TOP BURNER PRIMARY AIR (4 KW)
ADJUSTING TOP BURNER PRIMARY AIR (7 KW)
C
A
C
B
C
A
C
B
C
A
C
B
3301360_inst_GB_rev.2
ADJUSTMENTS
D
D
D
