ESX VISION ANDROID-Serie Installationsanleitung Seite 11

INSTALLATION TIPS
External microphone and 4G/LTE antenna

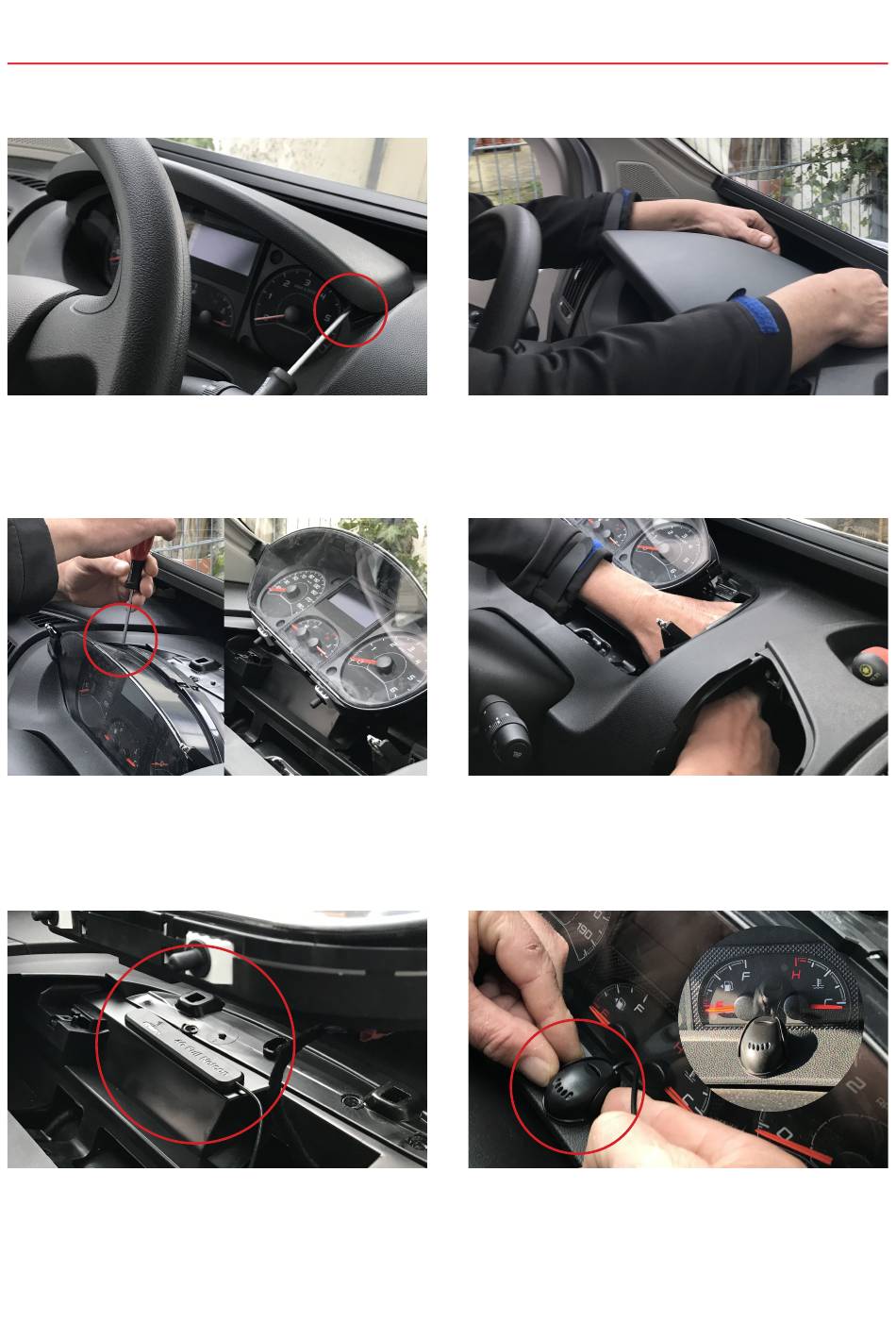

To route the external microphone and the
4G/LTE antenna, you must remove the top
cover of the speedometer display.
Loosen the screws of the speedometer dis-
play on both sides and carefully fold it up-
wards.
Place the 4G/LTE antenna within the ex-
posed area of the dashboard.
Loosen the two screws on the left and right
of the speedometer and then carefully pull
the cover out from the back to the top.
Route the connection cables of the external
microphone and the 4G / LTE antenna from
the radio slot to the speedometer display.
You can place the included external micro-
phone, for example, above the steering col-
umn on the speedometer display.
