INSTALLATION TIPS

The following installation example shows the installation of an ESX Smart Naviceiver in a
Fiat Ducato IV model. Due to the many different equipment variants of the Ducato / Boxer /
Jumper platform, the installation conditions shown may differ from your vehicle.

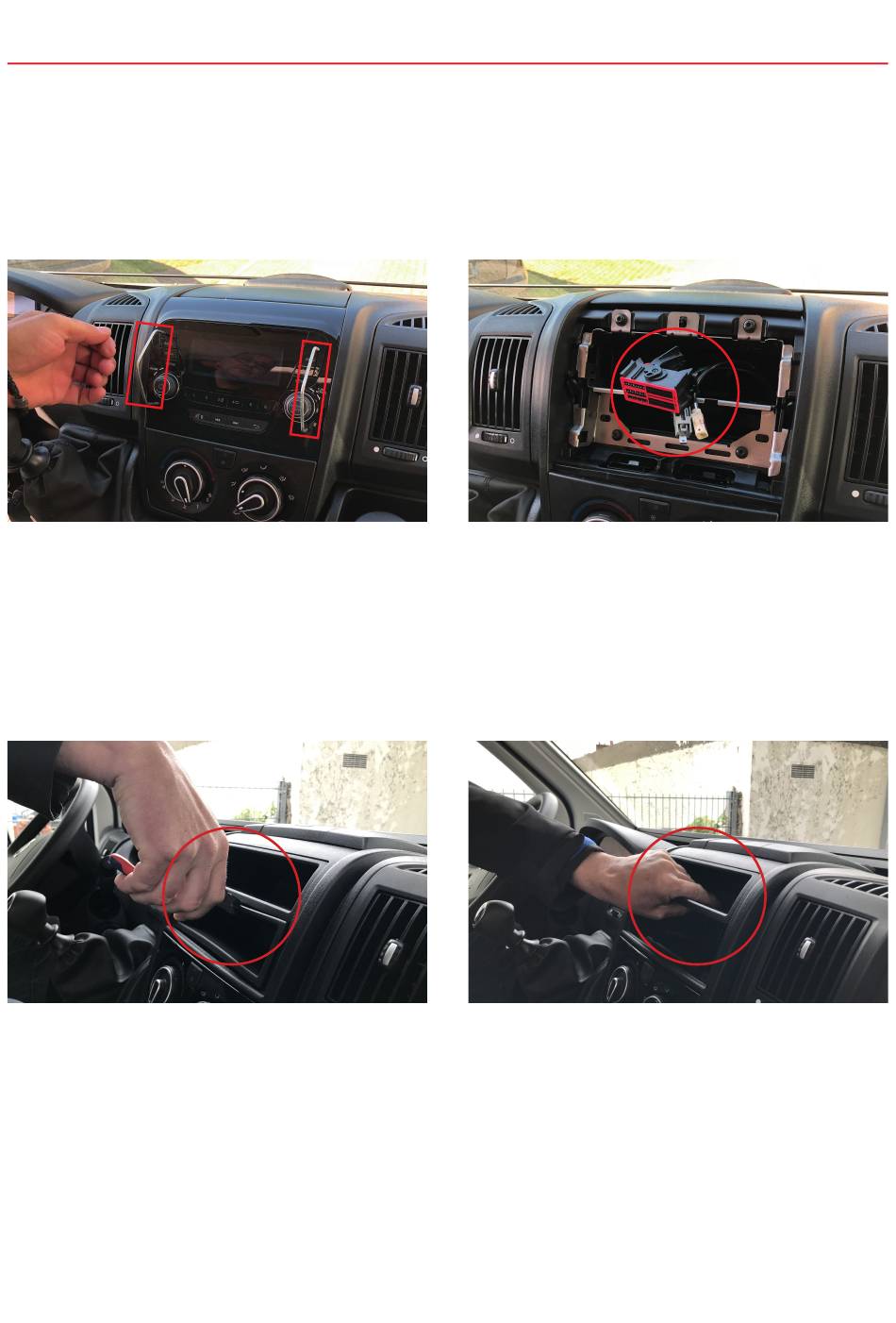

Removing the original radio / navigation device *
First remove the original radio / navigation
device. Use suitable unlocking tools to pull
the device out of the radio slot.
Remove the storage compartments if no original device * is installed.
Remove the lower storage compartment in
the radio slot with pliers.
8
Then pull the cable plug from the original
device and leave it accessible in the radio
slot.
Then pull the upper storage compartment
out of the radio slot.
* Depending on vehicle
