VC-S2000GM

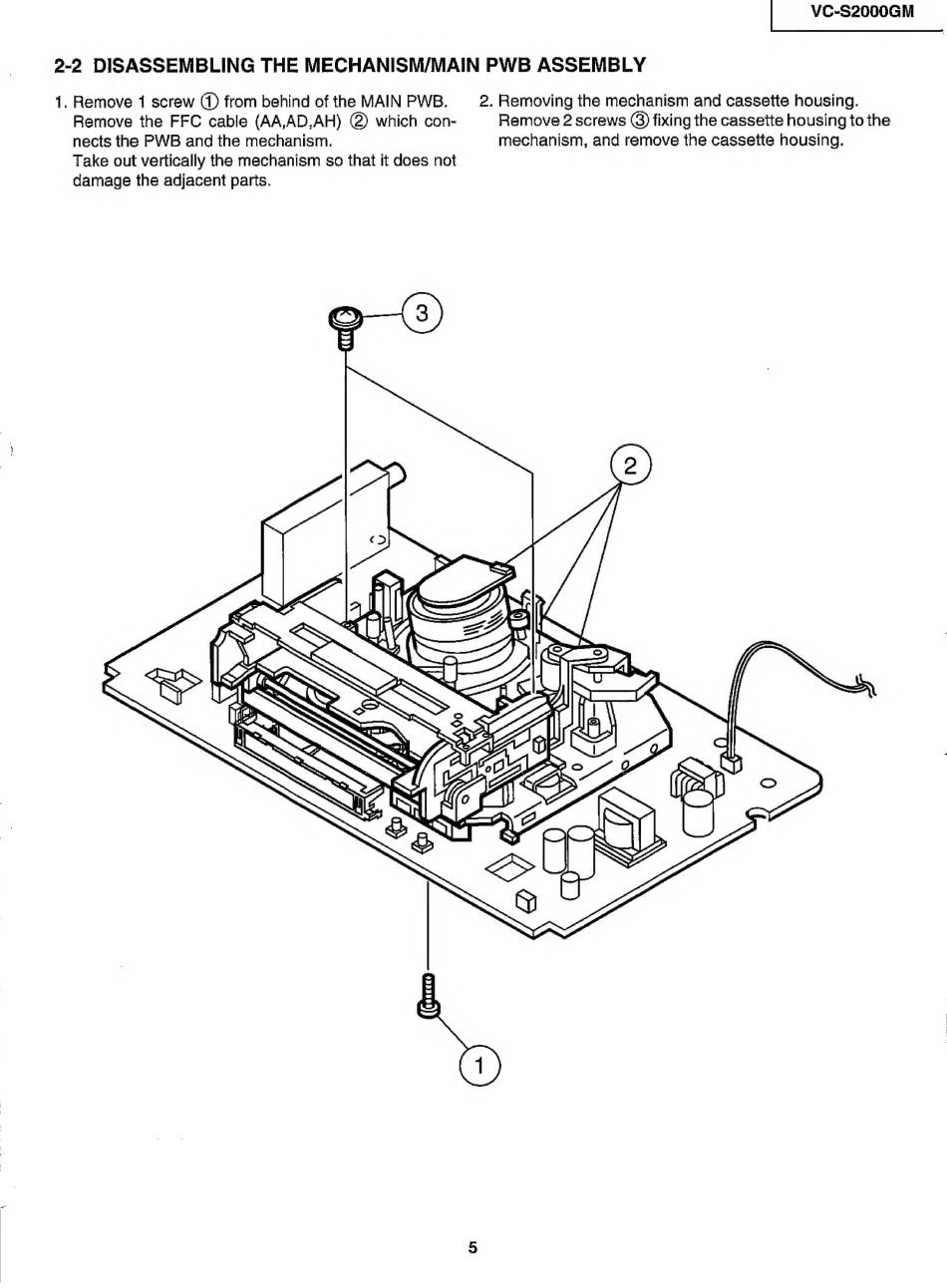

2-2 DISASSEMBLING THE MECHANISM/MAIN PWB ASSEMBLY
. Remove 1 screw (1) from behind of the MAIN PWB.
2. Removing the mechanism and cassette housing.
Remove the FFC cable (AA,AD,AH) @) which con-
Remove
2 screws @) fixing the cassette housing to the
nects the PWB and the mechanism.
mechanism, and remove the cassette housing.
Take out vertically the mechanism so that it does not
damage the adjacent parts.
—_
