--V@-S2000GM |

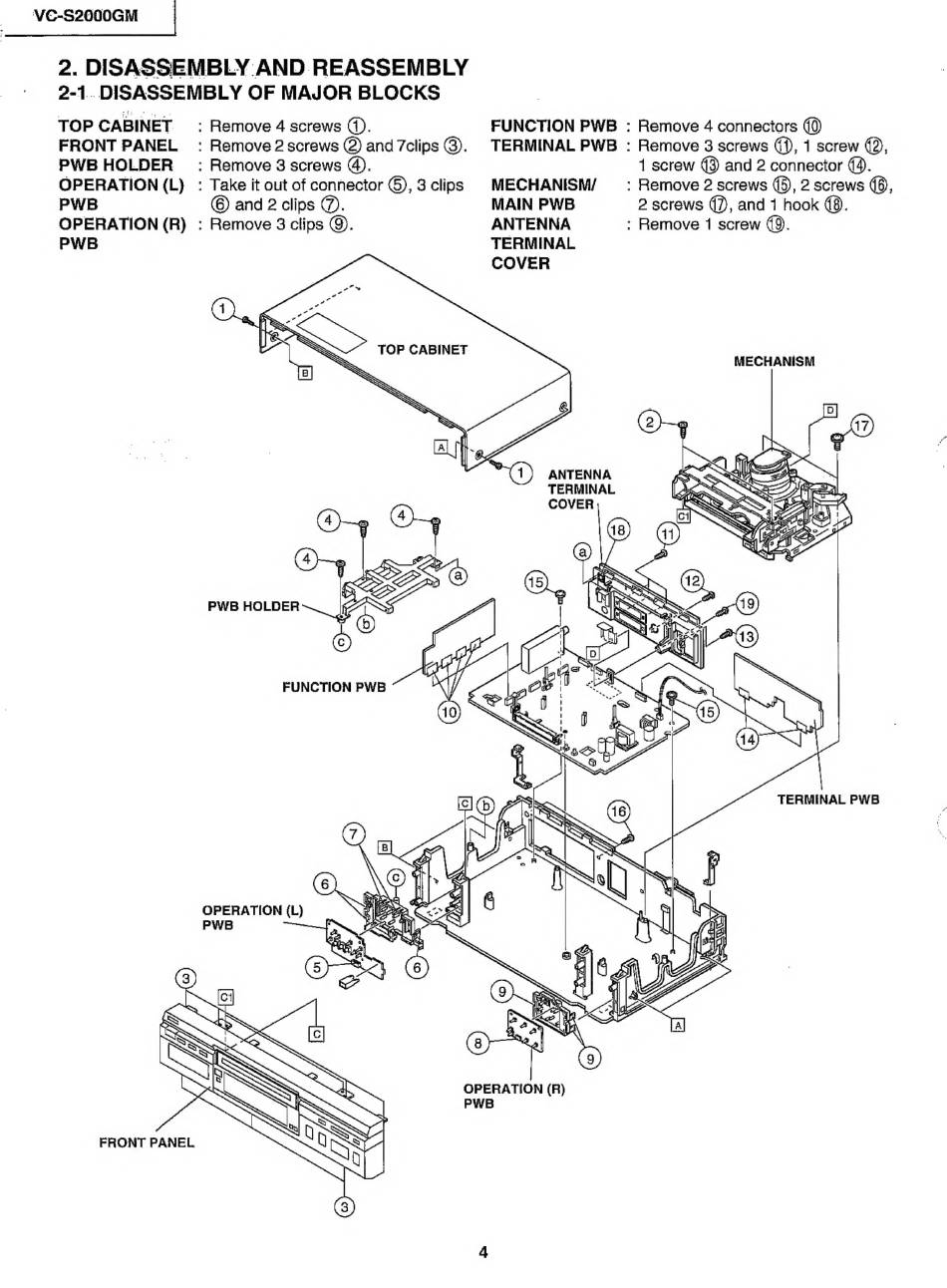

2. DISASSEMBLY AND REASSEMBLY
2-1.. DISASSEMBLY OF MAJOR BLOCKS
TOP CABINET: Remove 4 screws (4). FUNCTION PWB : Remove 4 connectors
FRONT PANEL: Remove2screws @) and7clips @). TERMINAL PWB : Remove 3 screws @}), 1 screw 4),
PWB HOLDER __ : Remove 3 screws @). 1 screw (3 and 2 connector (9.
OPERATION (L) : Take it out of connector @), 3clips MECHANISM/ _ : Remove 2 screws (5, 2 screws (6,
PWB © and 2 clips M. MAIN PWB 2 screws ()), and 1 hook di.
OPERATION (R) : Remove 3 clips @). ANTENNA : Remove 1 screw @9.
PWB TERMINAL
COVER
MECHANISM
ANTENNA
TERMINAL
TERMINAL PWB
OPERATION (R)
PWB
FRONT PANEL
