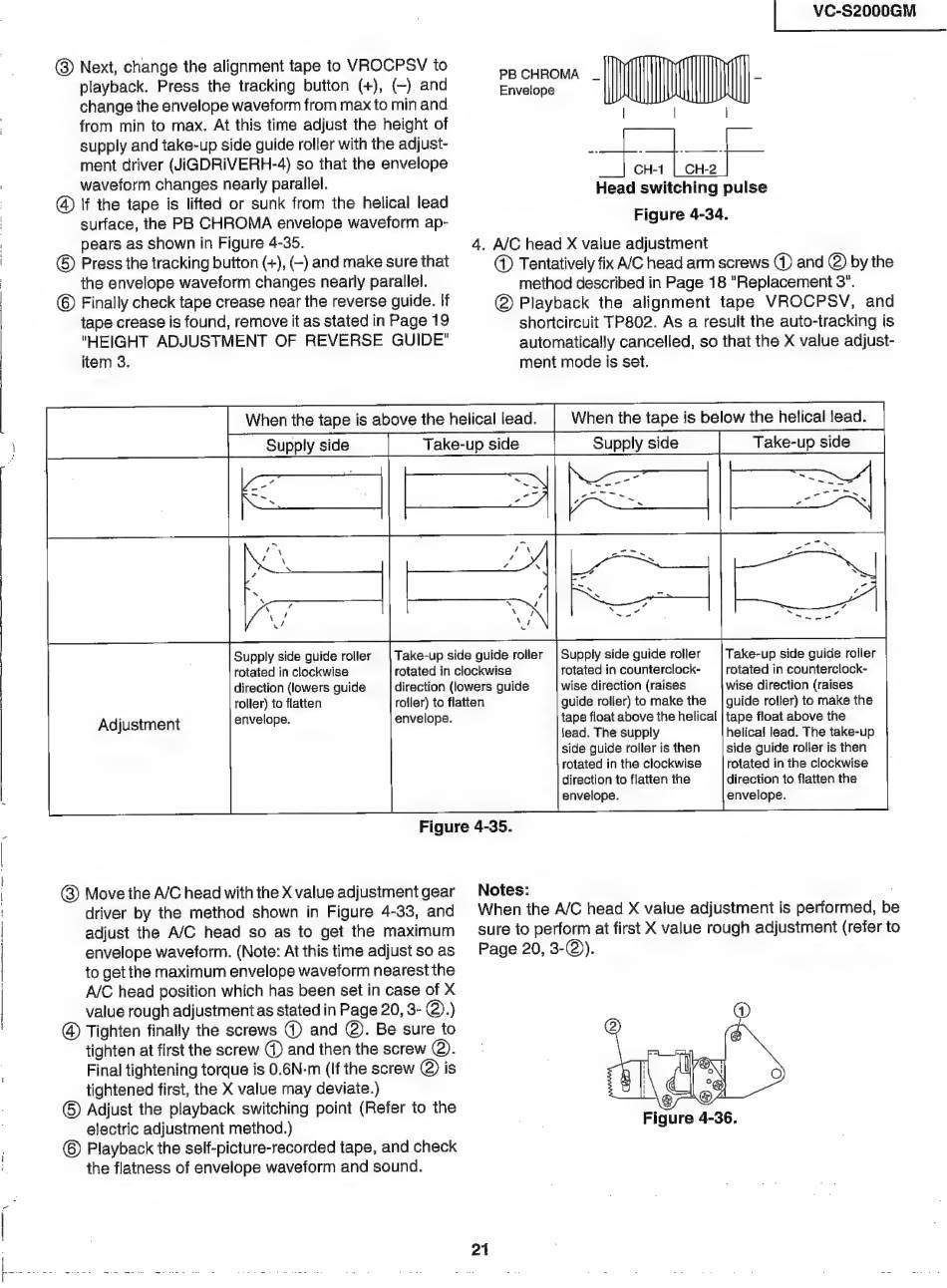

@) Next, change the alignment tape to VROCPSV to
playback. Press the tracking button (+), (~) and
change the envelope waveform from max to min and
from min to max. At this time adjust the height of
supply and take-up side guide roller with the adjust-
ment driver (JiGDRiIVERH-4) so that the envelope
waveform changes nearly parallel.
@) If the tape is lifted or sunk from the helical lead
surface, the PB CHROMA envelope waveform ap-
pears as shown in Figure 4-35.
&) Press the tracking button (+), (-) and make sure that
the envelope waveform changes nearly parallel.
© Finally check tape crease near the reverse guide. If
tape crease is found, remove it as stated in Page 19
"HEIGHT ADJUSTMENT OF REVERSE GUIDE"
item 3.
Supply side guide roller
rotated in clockwise
direction (lowers guide
roller) to flatten
envelope.
envelope.
| VC-S2000GM
PB CHROMA
Envelope
| | |
CH-1 CH-2 |
Head switching pulse
Figure 4-34,
4, A/C head X value adjustment
When the tape is above the helical lead.
Supply side
-Take-up side Supply side
Take-up side
Adjustment
Take-up side guide roller
rotated in clockwise
direction (lowers guide
rofler) to flatten
@ Tentatively fix A/C head arm screws (1) and @) by the
method described in Page 18 "Replacement 3".
@ Playback the alignment tape VROCPSV, and
shortcircuit TP802. As a result the auto-tracking is
automatically cancelled, so that the X value adjust-
ment mode is set.
When the tape is below the helical lead.
Supply side guide roller
rotated in counterclock-
wise direction (raises
guide roller) to make the
tape float above the helical
lead. The supply
side guide roller is then
rotated in the clockwise
direction to flatten the
envelope.
Take-up side guide roller
rotated in counterclock-
wise direction (raises
guide roller) to make the
tape float above the
helica! lead. The take-up
side guide roller is then
rotated in the clockwise
direction to flatten the
envelope.
Figure 4-35.
@) Move the A/C head with the X value adjustment gear
driver by the method shown in Figure 4-33, and
adjust the A/C head so as to get the maximum
envelope waveform. (Note: At this time adjust so as
to get the maximum envelope waveform nearest the
A/C head position which has been set in case of X
value rough adjustment as stated in Page 20, 3- @).)
@ Tighten finally the screws () and @). Be sure to
tighten at first the screw (@ and then the screw @).
Final tightening torque is 0.6N-m (If the screw @) is
tightened first, the X value may deviate.)
©) Adjust the playback switching point (Refer to the
electric adjustment method.)
© Playback the self-picture-recorded tape, and check
the flatness of envelope waveform and sound.
