Torque Reaction

When the HandTorque
Square Drive and must be allowed to rest squarely against a solid object or surface adjacent to the bolt to be
tightened (see Figure 2).
Where the standard reaction plate is not suitable, it may be possible to adapt it. Refer to your Norbar
distributor for advice.
Reaction
Clockwise Operation
Reaction
Clockwise Operation
is in operation, the Reaction Plate rotates in the opposite direction to the Output
®
Torque
Torque
Anti-Clockwise Operation
Anti-Clockwise Operation

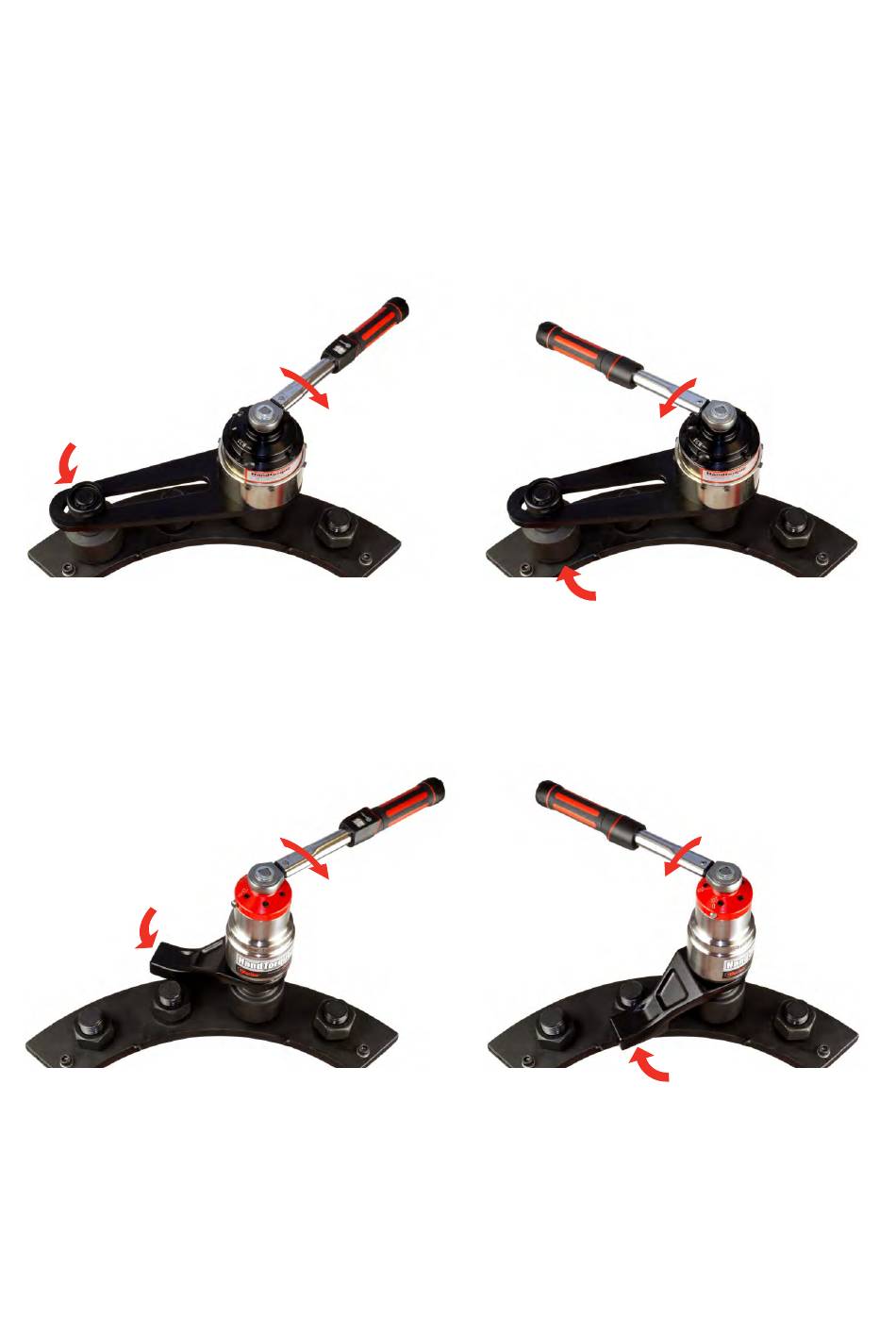

FIGURE 2
Torque
Reaction
Torque
Reaction
5
