UNIT INSTALLATION

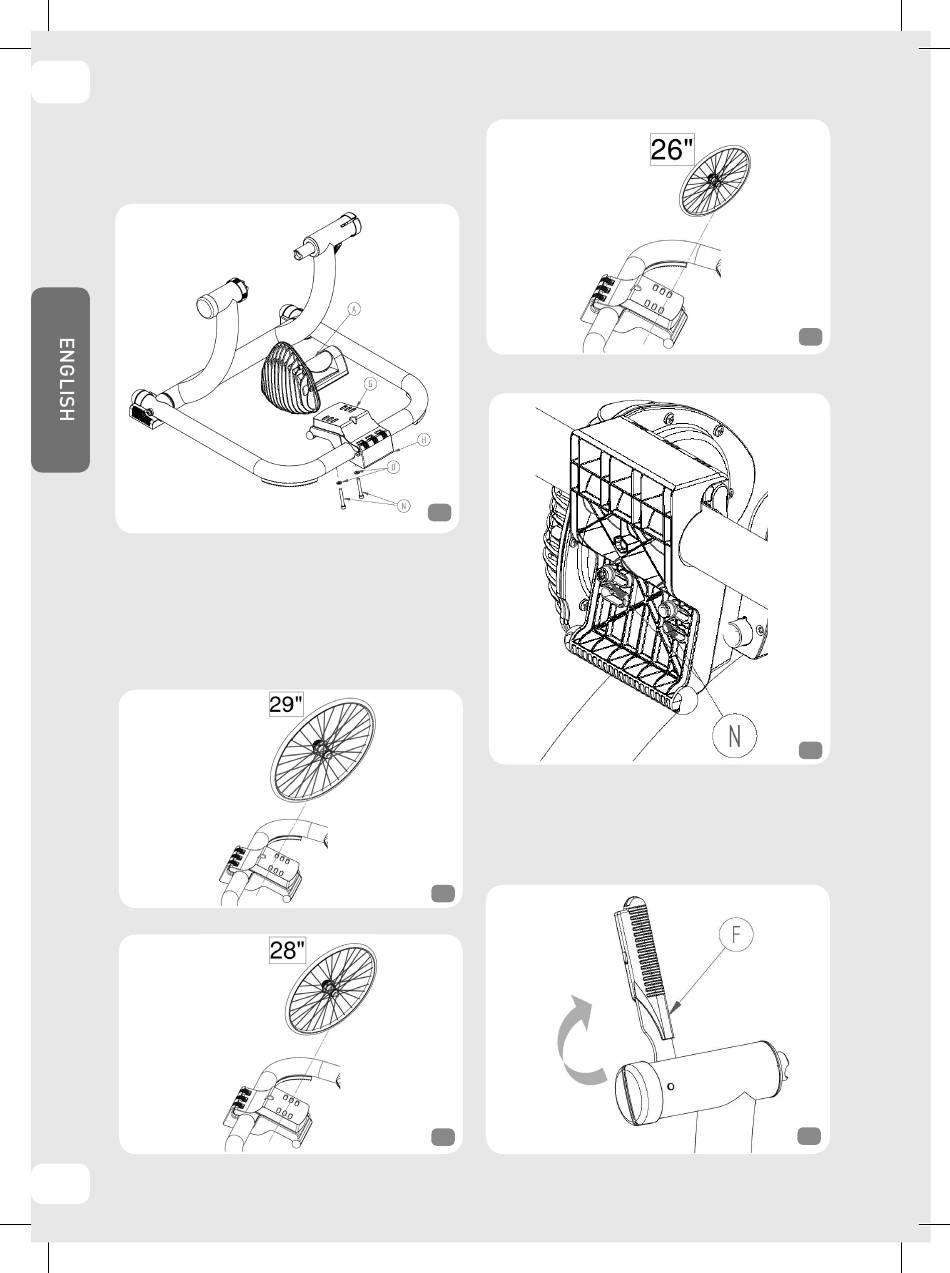

• Fix the resistance unit on the base (G, H) with
screws (N) + washers (O) (fig. 4).
• On the base (G) the are three pairs of holes; use
the various holes according to the diameter of the
bicycle wheel:
for 29" wheels, pair of rear holes (fig. 5);
for 28" wheels, pair of middle holes (fig. 6);
for 26" wheels, pair of front holes (fig. 7).
16
• Tighten down the screws (N) (fig. 8).
4

FITTING THE BICYCLE

• Make sure the quick release of the bicycle rear
wheel is properly fixed.
• Turn the lever (F) to the "open" position (fig. 9).
5
6
7
8
9
