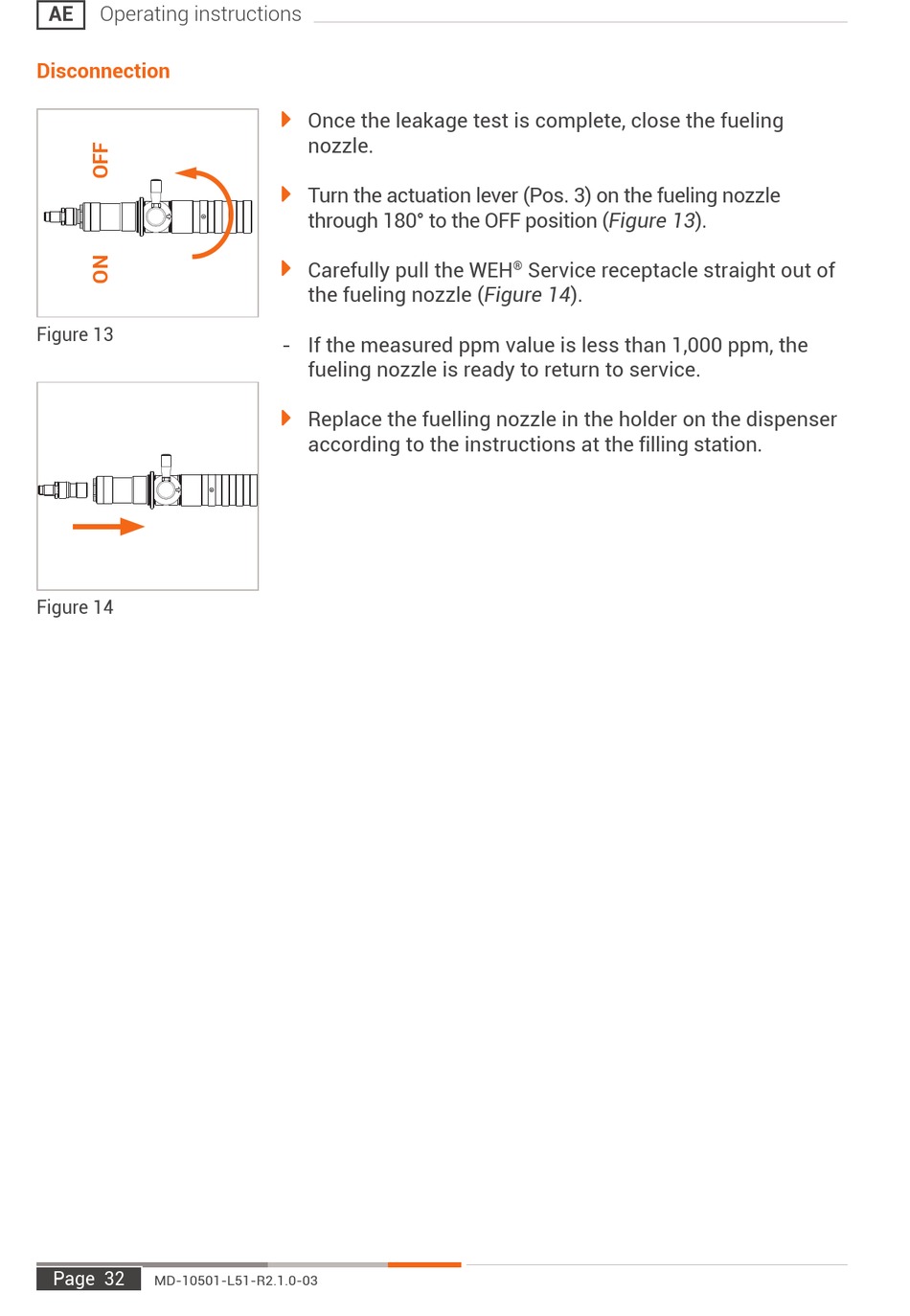

Weh TK26 CNG Betriebsanleitung Seite 32

AE Operating instructions
Disconnection
Figure 13
Figure 14
Page 32
MD-10501-L51-R2.1.0-03
Î
Once the leakage test is complete, close the fueling
nozzle.
Î
Turn the actuation lever (Pos. 3) on the fueling nozzle
through 180° to the OFF position (Figure 13).
Î
Carefully pull the WEH
the fueling nozzle (Figure 14).
- If the measured ppm value is less than 1,000 ppm, the
fueling nozzle is ready to return to service.
Î
Replace the fuelling nozzle in the holder on the dispenser
according to the instructions at the filling station.
Service receptacle straight out of
®
