SEGMENTO Kombikit KKS
3 Description: SEGMENTO KKS combination kit
SEGMENTO combination kit for the pressure-tight external sealing of � 150 mm core drillings. Repla-
ceable sealing elements to accommodate cables of varying diameters ranging from � 5 to 31 mm.

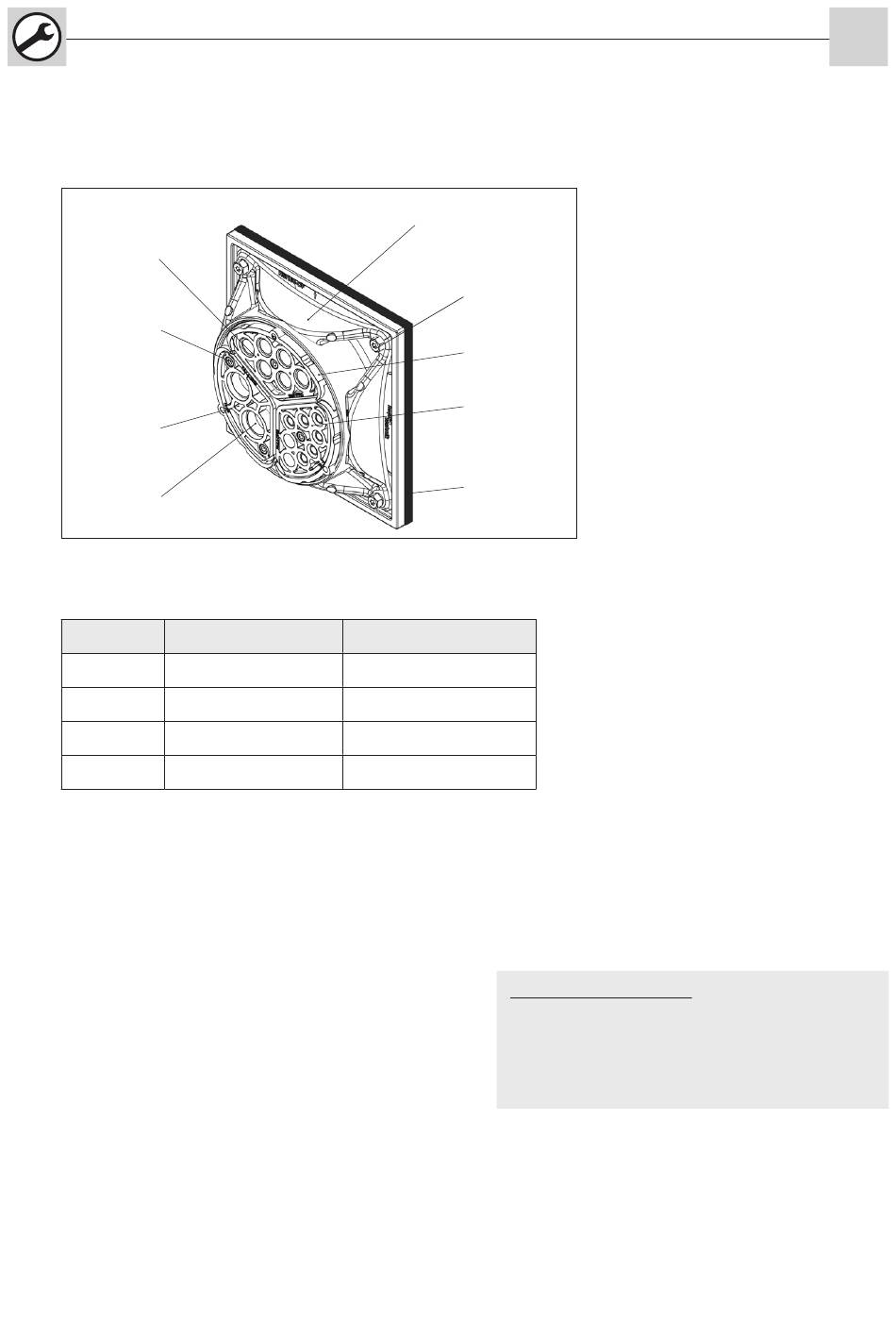

E.g.: SEGMENTO KKS combination kit
Segment
SEG 6/21
M6 Allen
screw
Segment
SEG 2/31
Blind plug
The following cable diameters can be covered:
Table
Type Number of cables Cable diameter
SEG 2/31
SEG 3/26
SEG 6/21
SEG 8/15
4 Scope of delivery
The scope of delivery for the SEGMENTO KKS combination kit includes:
1 HSI 150-DF aluminium flange with flange seal and fastening elements
1 HSI 150-S3 system cover
1 GMS „SEGMENTO" lubricant (Art.No. 2300310000)
3 segments of your choice; the following segments are available:
• Segment SEG 2/31 incl. blind plug
• Segment SEG 3/26 incl. blind plug
• Segment SEG 6/21 incl. blind plug
• Segment SEG 8/15 incl. blind plug
5 Required tools and aids
To install the SEGMENTO KKS combination kit correctly, you will need the following tools and aids in
addition to the usual tools:
Cloth
Cable cleaner
Accessories:
BSS assignment template
SLS6 G(D) flexible socket wrench
DMS torque screwdriver
HSI150-DF
20 - 31 mm
2
20 - 26 mm
3
15 - 21 mm
6
5 - 15 mm
8
SXR 10 x 80 long
shaft dowel incl.
stainless-steel screw
HSI150-S3
system cover
Segment
SEG 8/15
Flange seal
Ordering examples:
KKS 336 contains the following segments:
2x SEG 3/26, 1x SEG 6/21
KKS 238 contains the following segments:
1x SEG 2/31, 1x SEG 3/26, 1x SEG8/15
5-20 Nm / A/F13 torque spanner
GMS „SEGMENTO" lubricant (Art.No. 2300310000)
(not included in scope of delivery in case of re-
trofitting)
