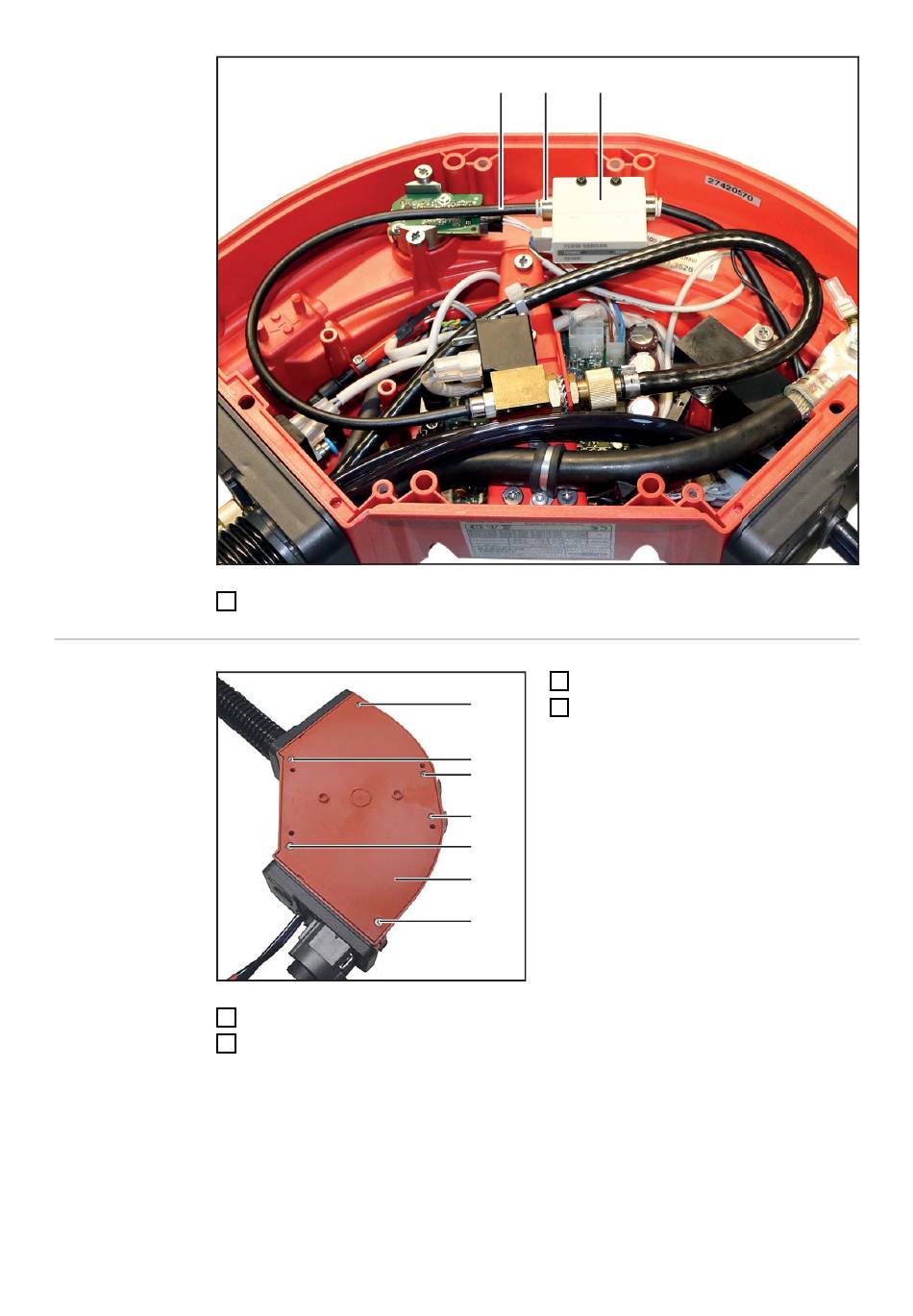

Connect the gas hose (1) to the IN connection socket (14) of the gas sensor (6)
Screw the device to the robot (4 x Allen screws M6 x 60 mm)
Establish connections to the other system components
(1)
(14)
(6)
Fit the cover (2)
1
(1)
Secure the cover with six TX25
2
screws (1)
Tightening torque = 3 Nm
(1)
(1)
(1)
(2)
(1)
