(15)
(1)
(2)
(1)

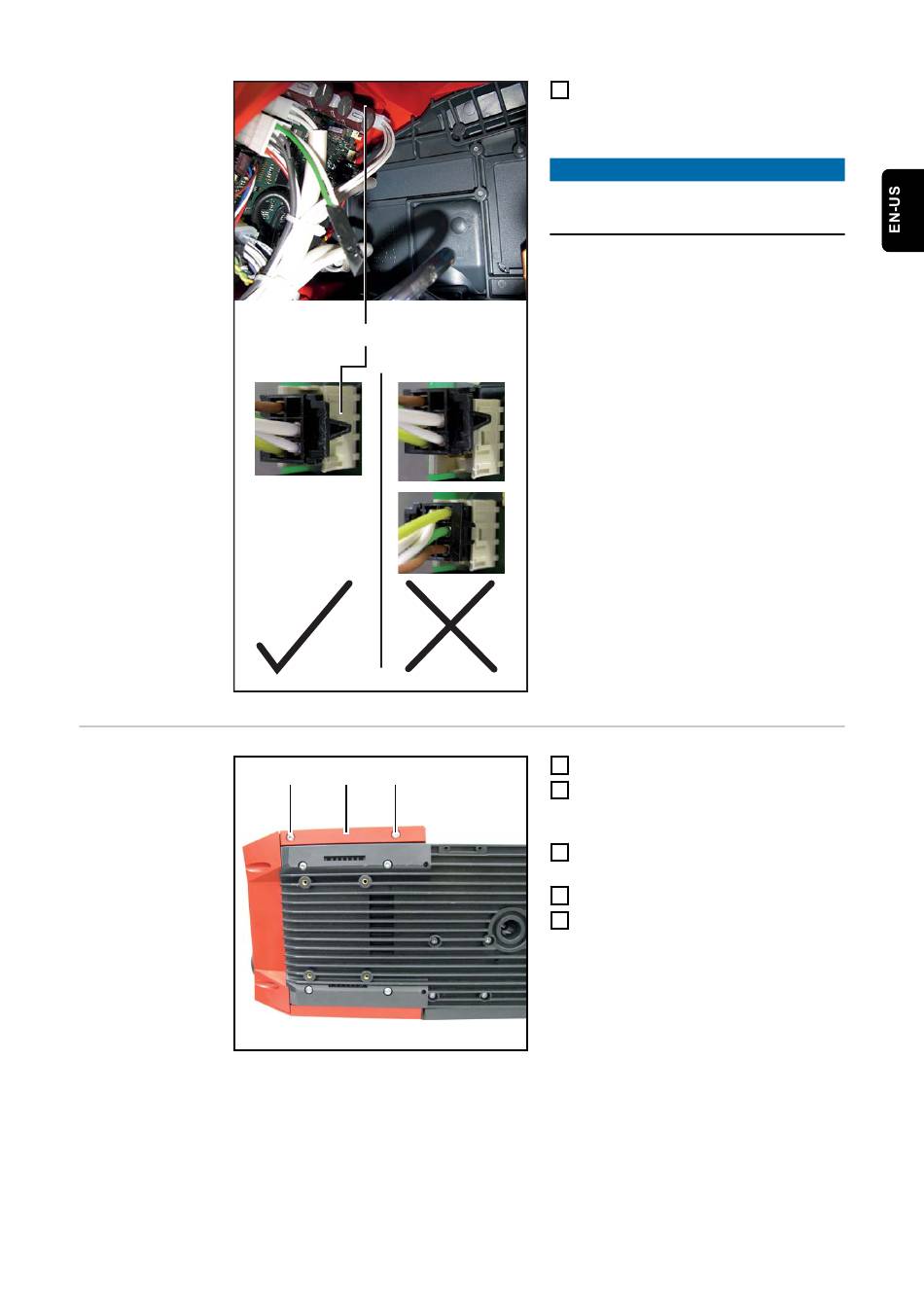

Plug the connector of the cable sup-
8
plied (15) into the wirefeeder
-
on PC board SR 63, socket X15
NOTE!
Plug in the connector (15) only as
shown in the enlarged view.
Fit the side panel (2)
1
Tighten two 5 x 14 mm screws (1)
2
using TX 25 screwdriver
-
Tightening torque = 1.9 Nm
Return wire-feed unit to its original
3
position
Insert wirespool or basket-type spool
4
Restore connections to other system
5
components
35
