Installation posi-
NOTE!
tion
The installation below is illustrated based on the right-hand version of the SB 60i
R.
The installation process for the left-hand version of the SB 60i R is the same, however
the relevant components/connections are in different positions. The main process steps
are always the same:
1
2
3
4
5
For more details on installation, see the following section.
44
Remove the gas solenoid valve installed in the device
Install the new gas solenoid valve
Install the gas sensor
Connect the IN connection socket of the gas sensor to the gas solenoid valve using
a gas hose
Connect the OUT connection socket of the gas sensor to the welding torch connec-
tion (FSC) using a gas hose

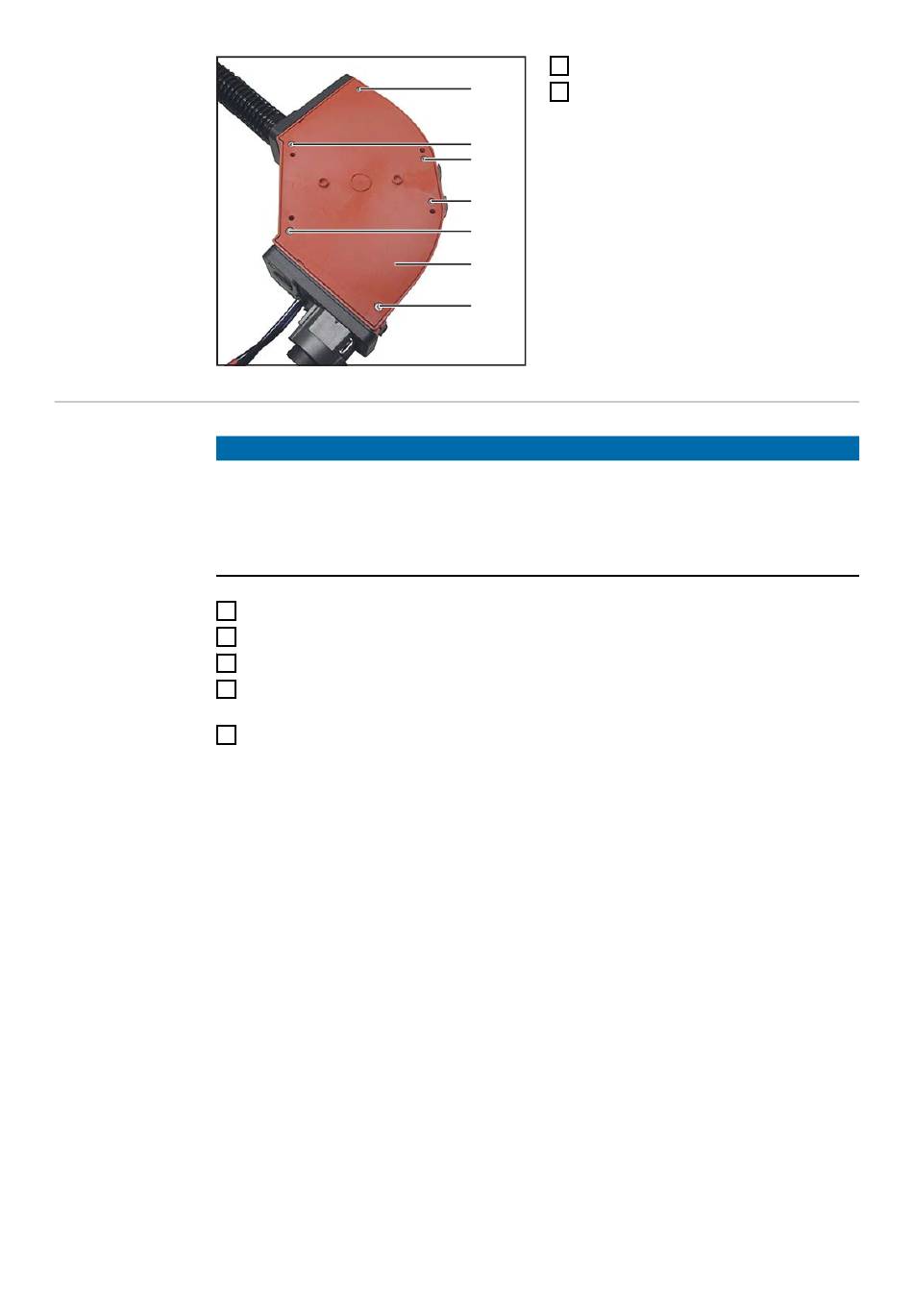

Undo the six TX 25 screws (1)
4
(1)
Remove cover (2)
5
(1)
(1)
(1)
(2)
(1)
