Installing the
OPT/i WF gas
flow sensor into
SB 60i R

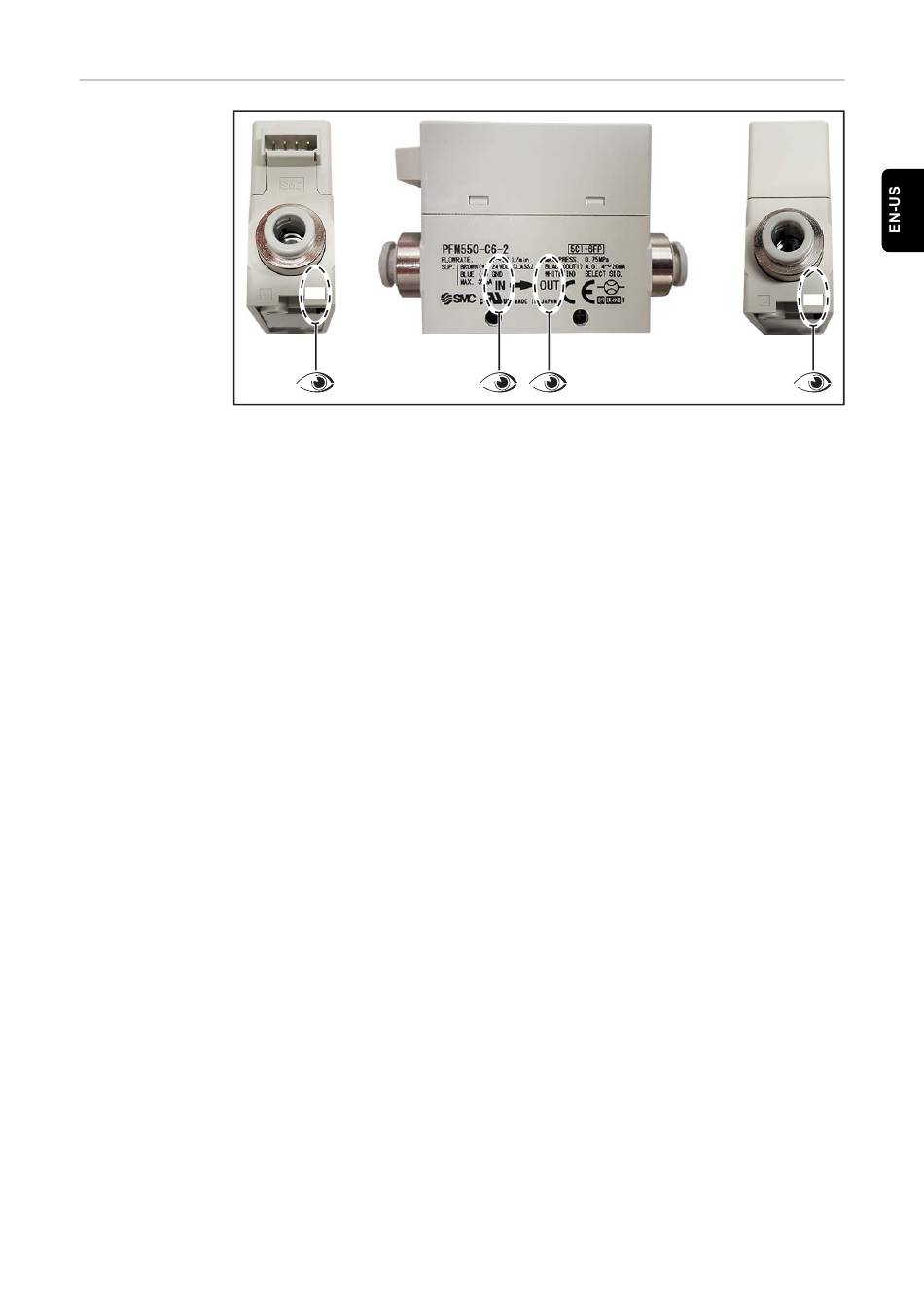

The gas sensor (6) must always be connected to the gas solenoid valve / welding torch
connection (FSC) using gas hoses as described below
-
-
-
IN
Gas sensor connection socket IN -> Gas solenoid valve (11)
Gas sensor connection socket OUT -> Welding torch connection (FSC)
For more information see "Installation overview" at the start of the section "Installing
the OPT/i gas controller: SB 60i R"
OUT
45
