Fronius OPT/i WF Installationsanleitung Seite 39

(7)

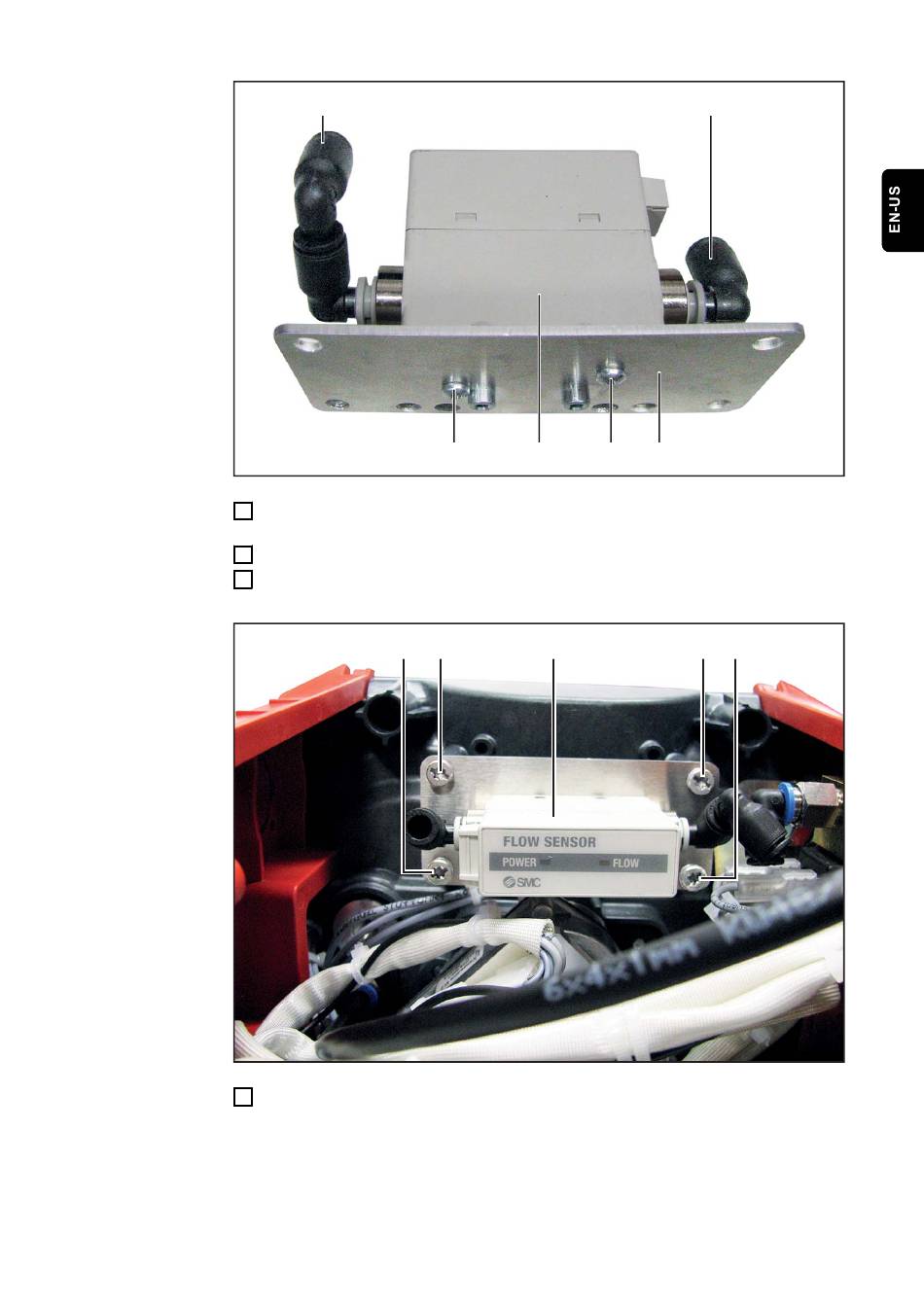

If necessary: connect the prepared connection pieces (7) to the gas sensor (8) as
2
shown
If necessary: connect the connection piece (9) to the gas sensor (8)
3
Place the gas sensor (8) onto the holding plate (10) as shown and secure using the
4
two Phillips-head screws (11)
(12)
Insert the gas sensor (8) plus holding plate into the wirefeeder and secure using the
5
four TX20 screws (12)
- Tightening torque = 2.5 Nm
(11) (8) (11)
(12) (8)
(9)
(10)
(12) (12)
39
