Preparatory Work; Installing The Opt/I Wf Gas Flow Sensor Into Wf 15/25/30I - Fronius OPT/i WF Installationsanleitung

Preparatory work

Installing the
OPT/i WF gas
flow sensor into
WF 15/25/30i
32
(1)
(1) (2)
Disconnect all connections on the
1
wire-feed unit from all other system
components
Take wirespool or basket-type spool
2
off the wire-feed unit
Place the wire-feed unit on a suitable
3
base

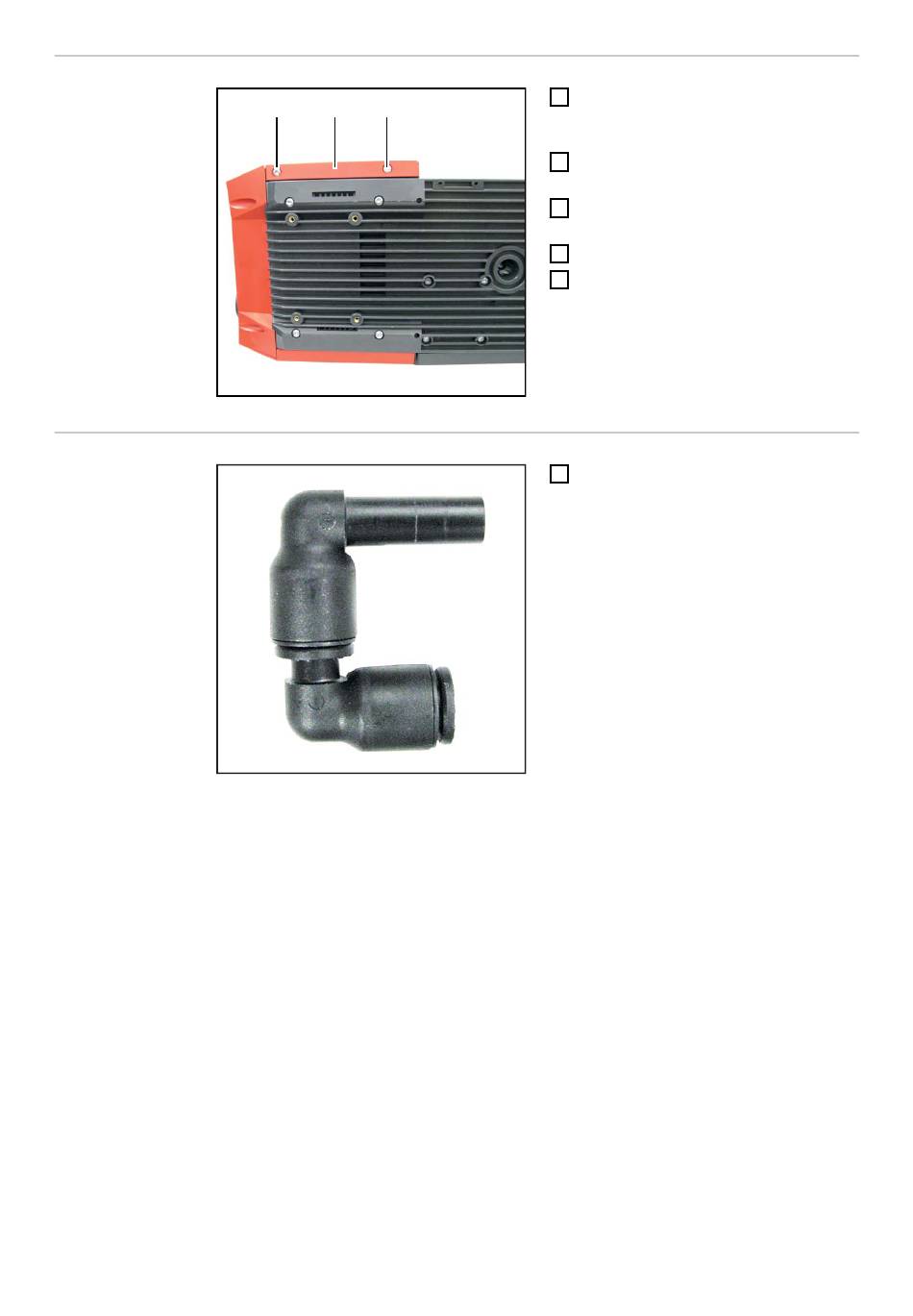

Undo two TX 25 screws (1)
4
Remove the right side panel (2)
5
Plug two connection pieces into each
1
other as shown (repeat for each set of
two pieces)
