GB

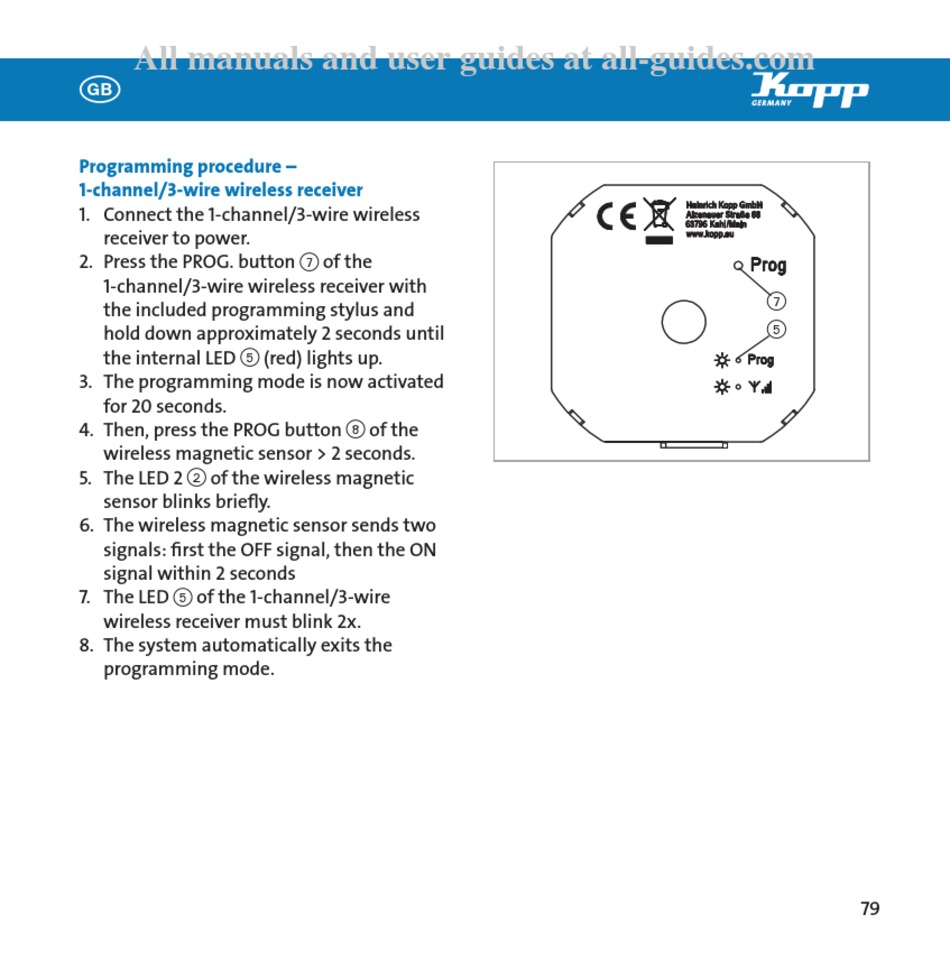

Programming procedure –
1-channel/3-wire wireless receiver
1. Connect the 1-channel/3-wire wireless
receiver to power.
2. Press the PROG. button 7 of the
1-channel/3-wire wireless receiver with
the included programming stylus and
hold down approximately 2 seconds until
the internal LED 5 (red) lights up.
3. The programming mode is now activated
for 20 seconds.
4. Then, press the PROG button 8 of the
wireless magnetic sensor > 2 seconds.
5. The LED 2 2 of the wireless magnetic
sensor blinks briefly.
6. The wireless magnetic sensor sends two
signals: first the OFF signal, then the ON
signal within 2 seconds
7. The LED 5 of the 1-channel/3-wire
wireless receiver must blink 2x.
8. The system automatically exits the
programming mode.
7
5
