GB

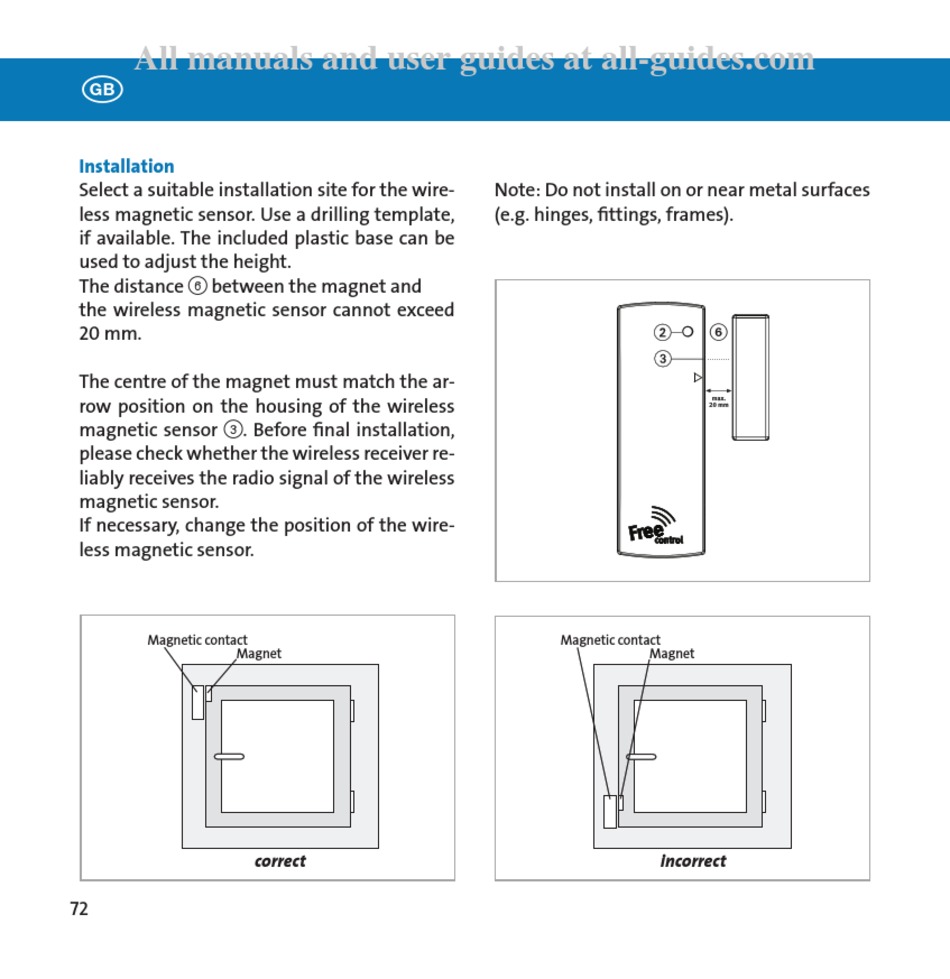

Installation

Select a suitable installation site for the wire-
less magnetic sensor. Use a drilling template,
if available. The included plastic base can be
used to adjust the height.
The distance 6 between the magnet and
the wireless magnetic sensor cannot exceed
20 mm.
The centre of the magnet must match the ar-
row position on the housing of the wireless
magnetic sensor 3 . Before final installation,
please check whether the wireless receiver re-
liably receives the radio signal of the wireless
magnetic sensor.
If necessary, change the position of the wire-
less magnetic sensor.
Magnetic contact
Magnet
72
Magnetic contact Magnetic contact
Magnet
correct
correct
Note: Do not install on or near metal surfaces
(e.g. hinges, fittings, frames).
Magnetic contact
Magnet Magnet
incorrect
incorrect
