D

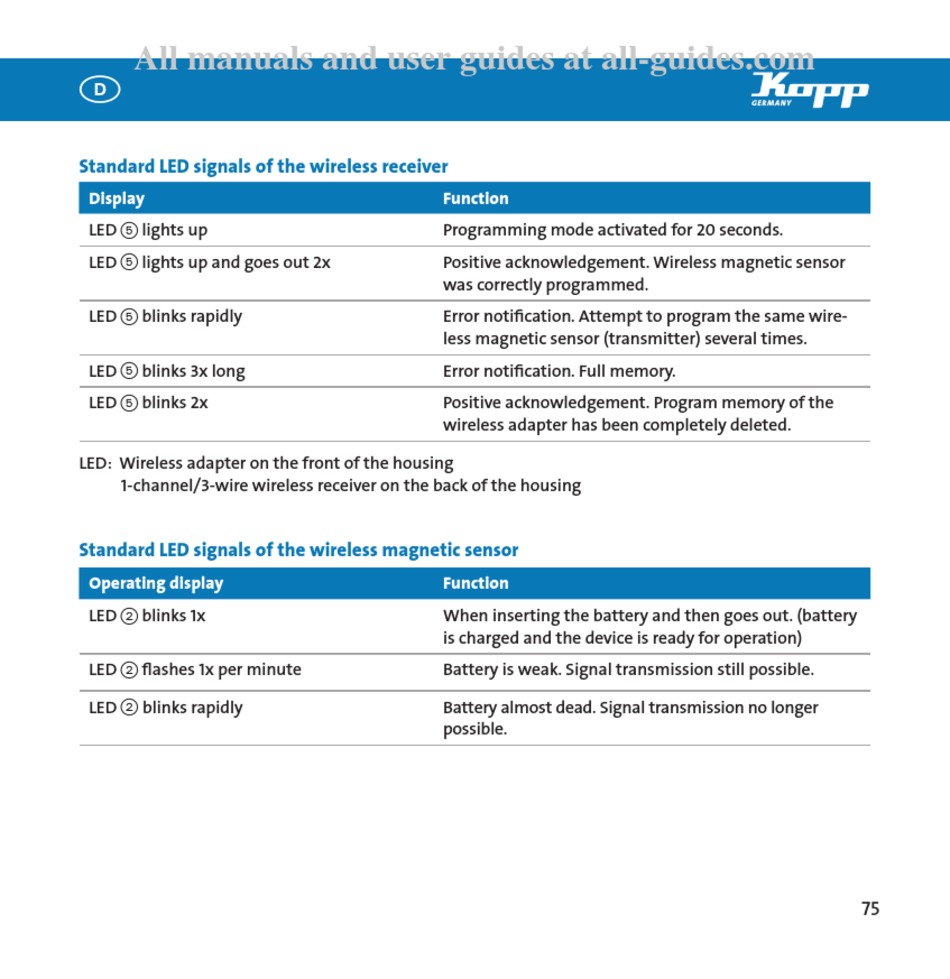

Standard LED signals of the wireless receiver
Display
LED 5 lights up
LED 5 lights up and goes out 2x
LED 5 blinks rapidly
LED 5 blinks 3x long
LED 5 blinks 2x
LED: Wireless adapter on the front of the housing
1-channel/3-wire wireless receiver on the back of the housing
Standard LED signals of the wireless magnetic sensor
Operating display
LED 2 blinks 1x
LED 2 flashes 1x per minute
LED 2 blinks rapidly
Function
Programming mode activated for 20 seconds.
Positive acknowledgement. Wireless magnetic sensor
was correctly programmed.
Error notification. Attempt to program the same wire-
less magnetic sensor (transmitter) several times.
Error notification. Full memory.
Positive acknowledgement. Program memory of the
wireless adapter has been completely deleted.
Function
When inserting the battery and then goes out. (battery
is charged and the device is ready for operation)
Battery is weak. Signal transmission still possible.
Battery almost dead. Signal transmission no longer
possible.
75
