Desk/Wall kit WSDK 50P
The desk and wall kit WSDK 50P (powder-coated steel) can be used as desk bracket for plas-
tic stations and plastic expansion modules of the WS series (in surface mount version), e.g.
for using the station as desk station,
or for inclined mounting on the wall, e.g. for the loudspeaker modules WSLM 5x.
Mounting
The desk/wall kit mounting holes of the surface mount kit WSSH 50P have to be broken out
Then screw the surface mount kit onto the WSDK threaded holes of the desk/wall kit using
the screws in the extent of supply.

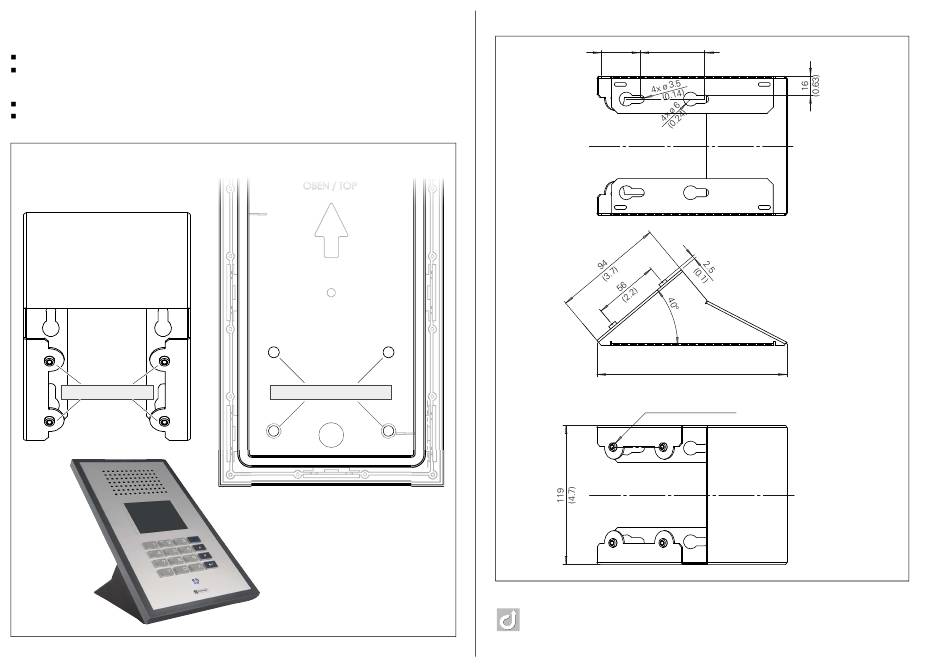

Desk/Wall kit WSDK 50P
(Top view)
WSDK threaded holes
Surface mount kit WSSH 50P (plastic)
(Front view)
Desk/Wall kit mounting holes
Picture:
WSDK 50P as desk bracket
for station WS 810P (with
surface mount kit WSSH 50P)
for use as desk station
Measurements
Measurements in mm (inch), not scale!
33 55
(1.3) (2.17)
4x M4 x 4 mm (0.16 in)
Manufacturer's reference
The components may be only installed by authorised engineers.
Please keep this description in safe custody!
Type: D-BZ-WSDK50P, Version: 1.0/1109
162.3
(6.4)
