Door speaker ELA-100
9
5
ON
a b T T L
1 2 3 4

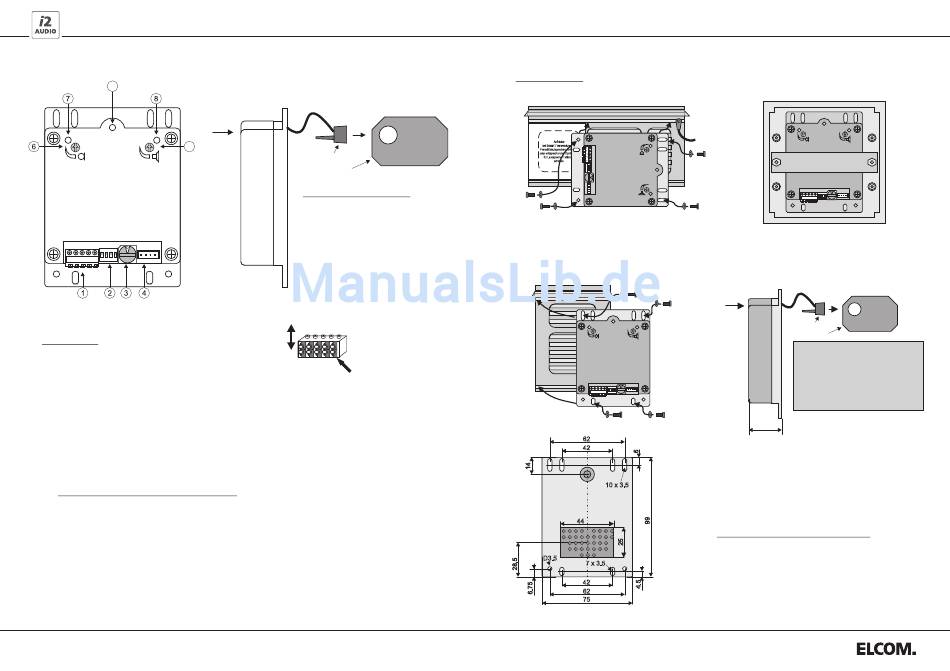

Description:
1.
Plug-able terminal clamps
Terminal a/b: ELCOM i2-BUS
Terminal T/T: Door release with relay contact (NO) (max. 24V/1A)
Terminal L:
Light button terminal (opposite pole to terminal a or b)
2.
Operating Mode Switches
Switch 1: OFF = Audio Door Station
Switch 2: OFF = Door Opening Only During Connection
Switch 3: OFF = Acknowledgement Tones Turned Off
Switch 4: No function
3.
Rotary Coding Switch
(red)
Settings 0-9: Addresses for door speaker in primary strand
Settings A-F: Addresses for door speaker in auxiliary strand (side entrance)
NOTE: Addresses may not be given twice in a line.
4.
Connection for i2-BUS button expander (BTE-116)
5.
Volume control
6.
Microphone control
7.
Green LED:
Speech Connection
8.
Red LED:
Outgoing Call
9.
Opening to push out the microphone
AN_ELA-100_EN_110216
Microphone
Foam rubber
Installation: Mailbox System
To improve the accustic properties, the
microphone should be pushed forward
and attached directly to the sound
opening with the enclosed foam rubber.
Connect the conductor:
Simply insert the conductor.
(Solid conductor 0.4 - 0.8 mm)
Loosen the conductor:
Press the orange button.
Remove the conductor.
ON = Video Door Station
ON = Door Opening at all Times
ON = Acknowledgement Tones Turned On
Installation
ELCOM intercom grille
Installation on the ELCOM intercom grille
using the ELCOM attached screws (M3x8).
ELCOM intercom grille
ON
a b T T L
1 2 3 4
62
42
10 x 3.5
44
D3.5
7 x 3.5
42
62
75
Technical additions and printing errors do not constitute grounds for any claims to damages.
Hotline: hotline@elcom.de
Art.Nr.: 0221103
ESTA / MODESTA Stationen
mounting bracket
ON
a b T T L
1 2 3 4
installation with mounting bracket
door electronics slot
Microphone
Foam rubber
Make sure of a free sound in/output
for the microphone and speaker. To
improve the acoustic performance,
the microphone can be pushed out
with a screwdriver, and can be
attached with foam rubber directly to
the intercom grille opening.
27,5
Please note our illustrated Installation instructions
for proper installation of the
Door speaker in various Bell plates
or letterboxes e.g. RENZ, or JU.
You can find these at our download area:
http://www.elcom-portal.de/webexplorer/
ELA_Anleitungen_Briefkasten_Einbau
