Button expander BTE-116
BUS
1
1
2
2

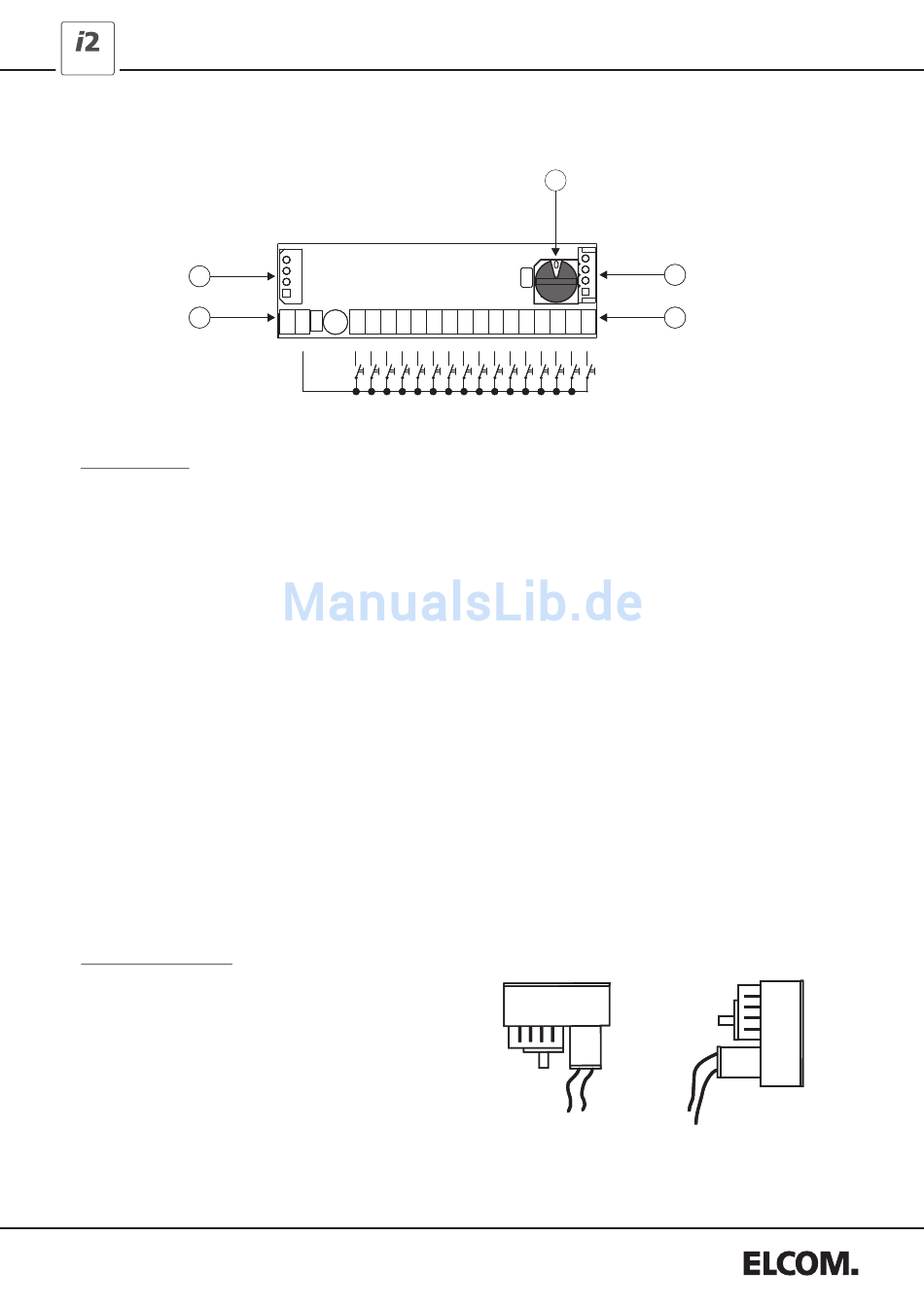

Description:
1.
Socket output
The data output of the BTE-116 is connected with the door speaker or with data input
of the previous BTE (cascading).
2.
Terminal clamps (G)
Terminals G/G are internally connected to each other and connect the joint wiring of the call buttons.
der Ruftaster.
3.
Terminal clamps (0 ... F)
The call buttons are connected to terminals 0-F. The terminal designation corresponds to the participant
address in the telephone (blue rotary coding switch/blue terminal).
4.
Socket input
The data input accommodates an additional BTE-116 (cascading). A maximum of 16 BTE-116s can be
cascaded (16x16 = 256 participants).
5.
Rotary coding switch (black)
Group address 0-F (In the event of multiple cascaded BTE-116s, each BTE must be given a different
address). This setting corresponds with the setting on the telephone.
Montagehinweis:
The BTE-116 has to be installed
overhead or on edge in the flush
mounted box or rather on the doorbell panel.
The cable inputs have to radiate downwards
of the BTE; therefore you avoid potential damages
due to damp by condensing dampness
on the cables.
See adjoining drawing.
Size of the BTE-116: 76 x 24.5 x 20mm
Technical additions and printing errors do not constitute grounds for any claims to damages.
Art.Nr.: 0221104
