Final tasks
1
2
14
(1)
7
Mount control panel using 2 TX25 5x14 mm screws
Tightening torque = 1.5 Nm
Mount left panel using 3 TX25 5x12 mm screws
Tightening torque = 3 Nm

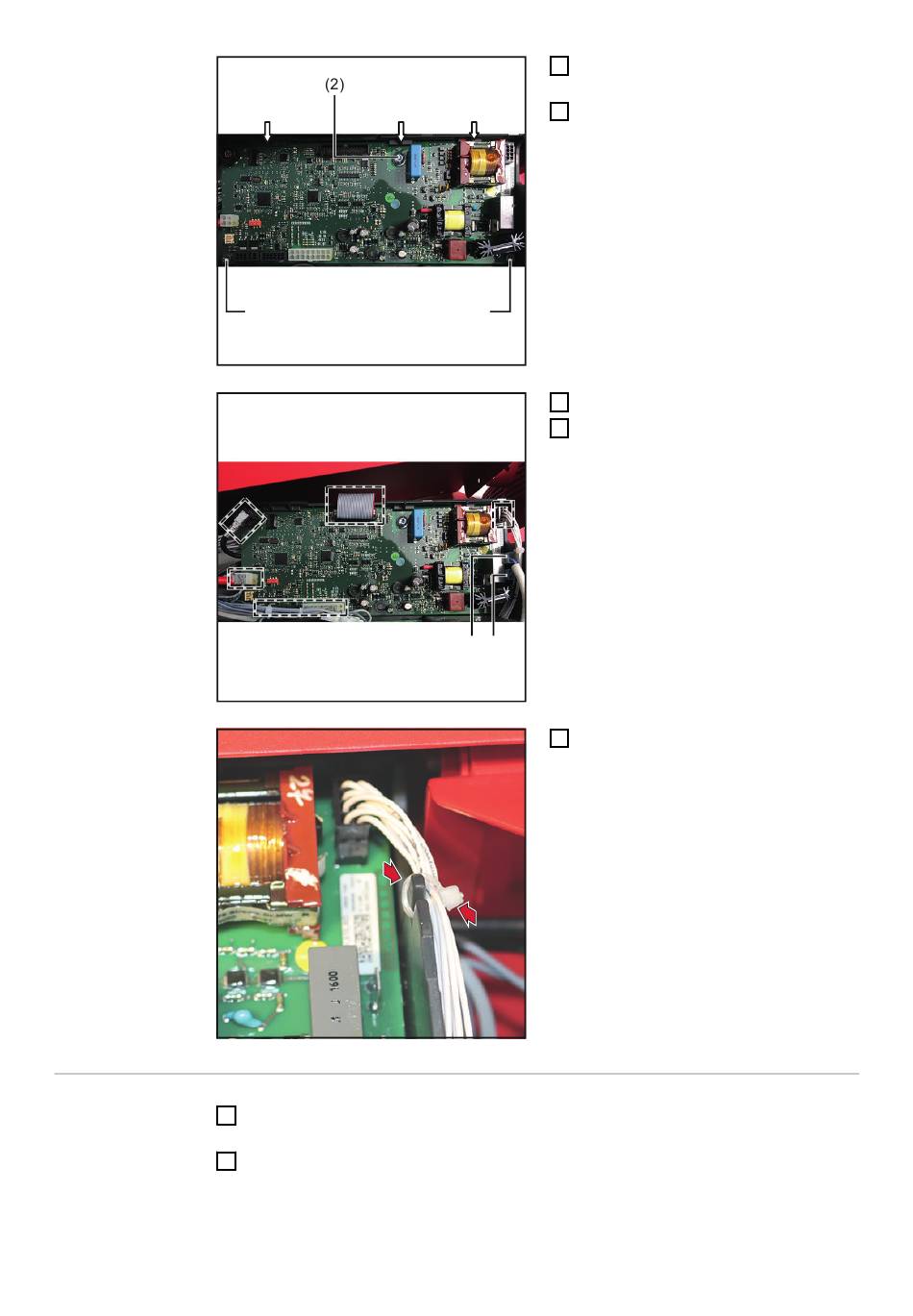

Insert 2 TX20 4x12 mm screws (1)
2
Tightening torque = 1.2 Nm
Insert TX25 5x12 mm screw (2)
3
Tightening torque = 2.1 Nm
(1)
Connect all lines as shown.
4
Connect flat plug X1 (3) and flat plug
5
X2 (4)
(3) (4)
Ensure cables are laid correctly after
6
installing PC board TPC220:
the cable tie must be placed over the
plastic protrusion as shown.
7
