Fronius OPT/i Ethernet iWave190i Installationsanleitung Seite 11

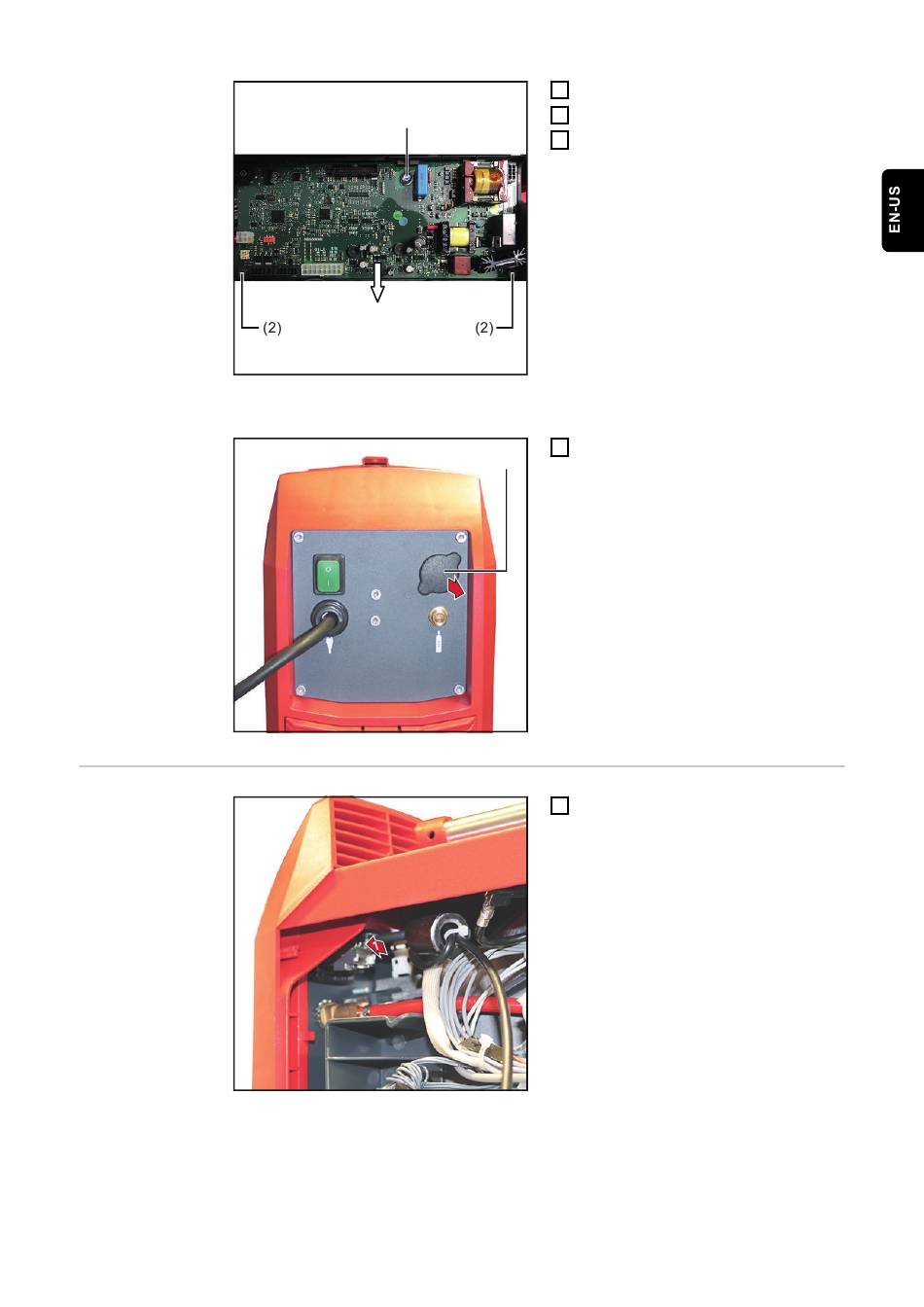

Remove dummy cover
Installing OPT/i
Ethernet iWa-
ve190i/230i
2
3
(1)
4
1
(1)
1
1
Remove TX25 5x12 mm screws (1)
Remove 2 TX20 4x12 mm screws (2)
Fold TPC220 PC board on the bottom
upward and remove from the PC
board holder
Remove dummy cover (1) from the in-
side out
Insert Ethernet connector into the ope-
ning from the inside to the outside
