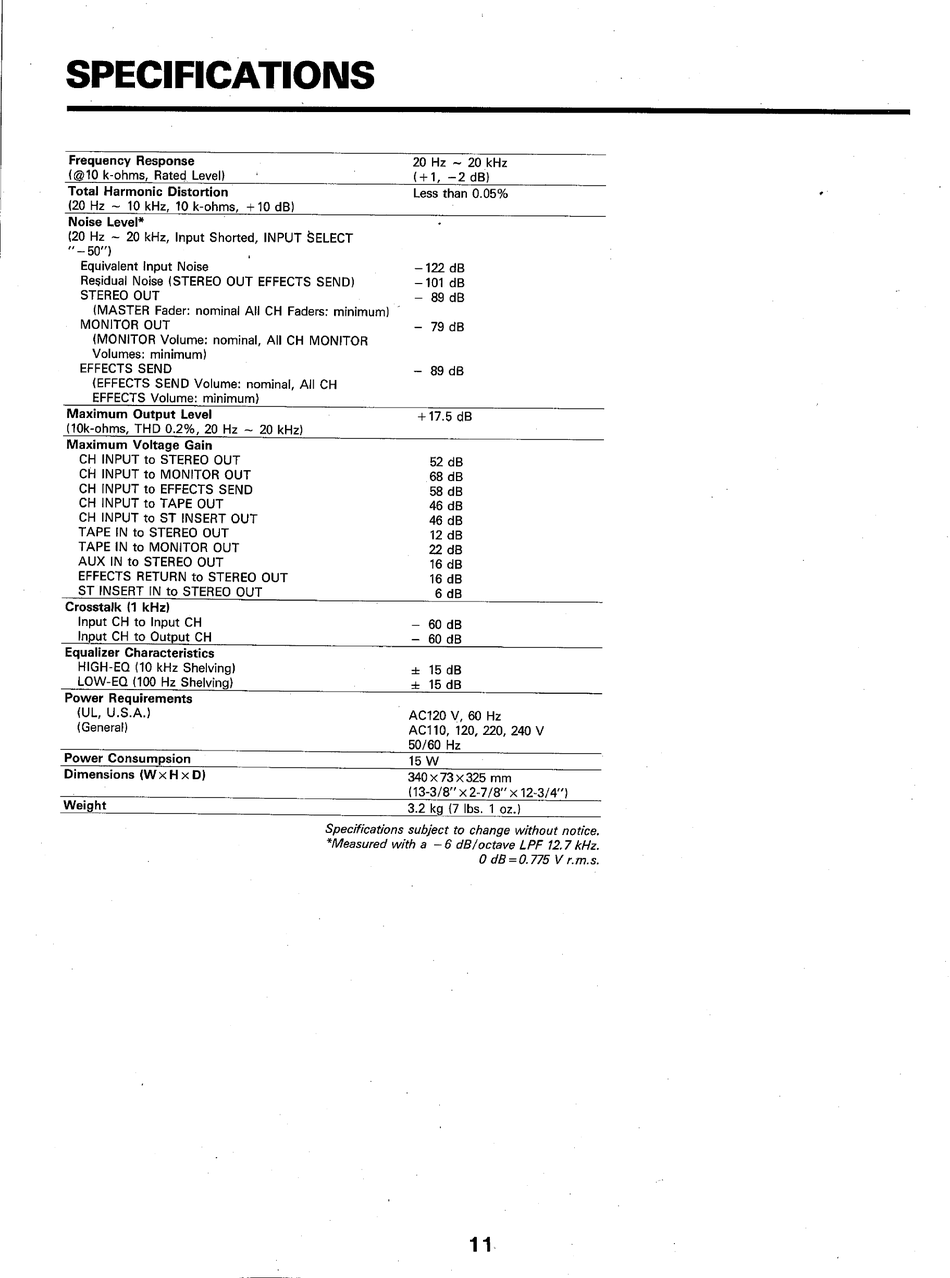

SPECIFICATIONS
Frequency Response 20 Hz - 20 kHz
(@10 k-ohms, Rated Level) _ | (+1, -2 dB)
Total Harmonic Distortion Less than 0.0596
(20 Hz ~ 10 kHz, 10 k-ohms, + 10 dB)
Noise Level* |
(20 Hz — 20 kHz, Input Shorted, INPUT SELECT
"--50") ,
Equivalent Input Noise — 122 dB
Residual Noise (STEREO OUT EFFECTS SEND) — 101 dB
STEREO OUT | — 89 dB
(MASTER Fader: nominal All CH Faders: minimum) `
MONITOR OUT — 79 dB
(MONITOR Volume: nominal, All CH MONITOR
Volumes: minimum) |
EFFECTS SEND — 89 dB
(EFFECTS SEND Volume: nominal, All CH
EFFECTS Volume: minimum)
Maximum Output Level + 17.5 dB
(10k-ohms, THD 0.296, 20 Hz - 20 kHz)
Maximum Voltage Gain
CH INPUT to MONITOR OUT 68 dB
CH INPUT to EFFECTS SEND 58 dB
CH INPUT to TAPE OUT 46 dB
TAPE IN to STEREO OUT 12 dB
TAPE IN to MONITOR OUT _ 22 dB
AUX IN to STEREO OUT 16 dB
ST INSERT IN to STEREO OUT 6 dB
Crosstalk (1 kHz) 7
Input CH to Output CH — 60 dB
Equalizer Characteristics
LOW-EO (100 Hz Shelving} | + 15 dB
Power Requirements | |
(UL, U.S.A.) AC120 V, 60 Hz
(General) AC110, 120, 220, 240 V
50/60 Hz
Specifications subject to change without notice.
*Measured with a —6 dB/octave LPF 12.7 kHz.
0 dB=0.775 V r.m.s.
