22

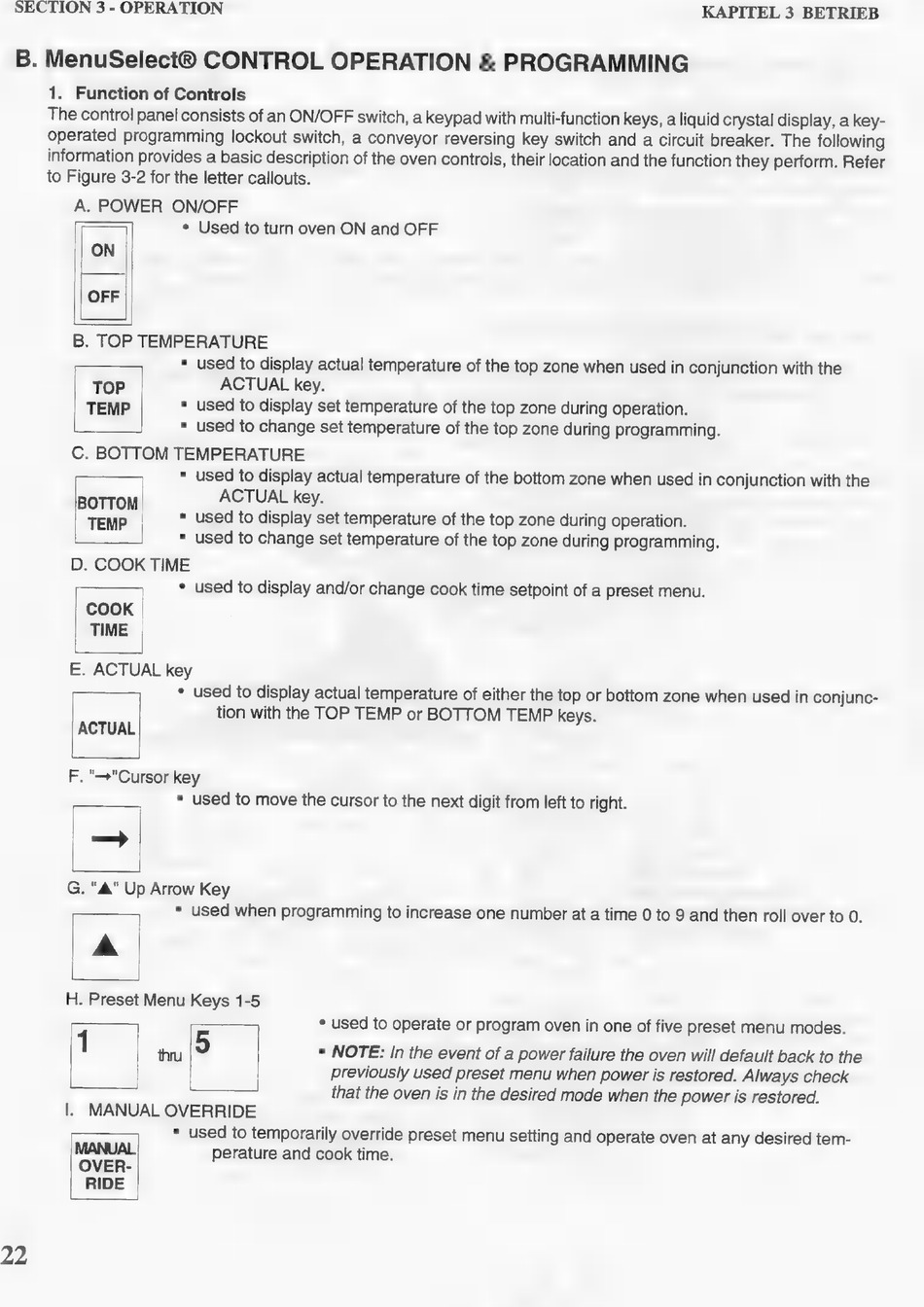

1. Function of Controls
A. POWER ON/OFF
* Used to turn oven ON and OFF
| |
B. TOP TEMPERATURE
* used to display actual temperature of the top zone when used in conjunction with the
TOP | ACTUAL key.
TEMP |
* used to display set temperature of the top zone during operation.
* used to change set temperature of the top zone during programming.
C. BOTTOM TEMPERATURE
—A
° used to display actual temperature of the bottom zone when used in conjunction with the
БЕМ! ACTUAL key.
TEMP |
* used to display set temperature of the top zone during operation.
* used to change set temperature of the top zone during programming.
D. COOK TIME
—
° used to display and/or change cook time setpoint of a preset menu.
| COOK |
TIME |
[x]
E. ACTUAL key
* used to display actual temperature of either the top or bottom zone when used in conjunc-
. "="Cursor key
* used to move the cursor to the next digit from left to right.
=
G. "A" Up Arrow Key
——
* used when programming to increase one number at a time 0 to 9 and then roll over to 0.
H. Preset Menu Keys 1-5
E
l. MANUAL OVERRIDE
RIDE
