Electrical installation
Power supply
Circuit breaker
RCCB
Pre-Installation
> Installing a permanent power supply line:
Install separate circuit breaker and residual-current
circuit breaker (RCCB) upstream
Connect all pole disconnector mains switch upstream
located outside specified protection zones (0 - 2)
Leave 3000 mm of feed cable exposed
> Laying an equipotential bonding cable:
Leave 3000 mm of cable exposed
18

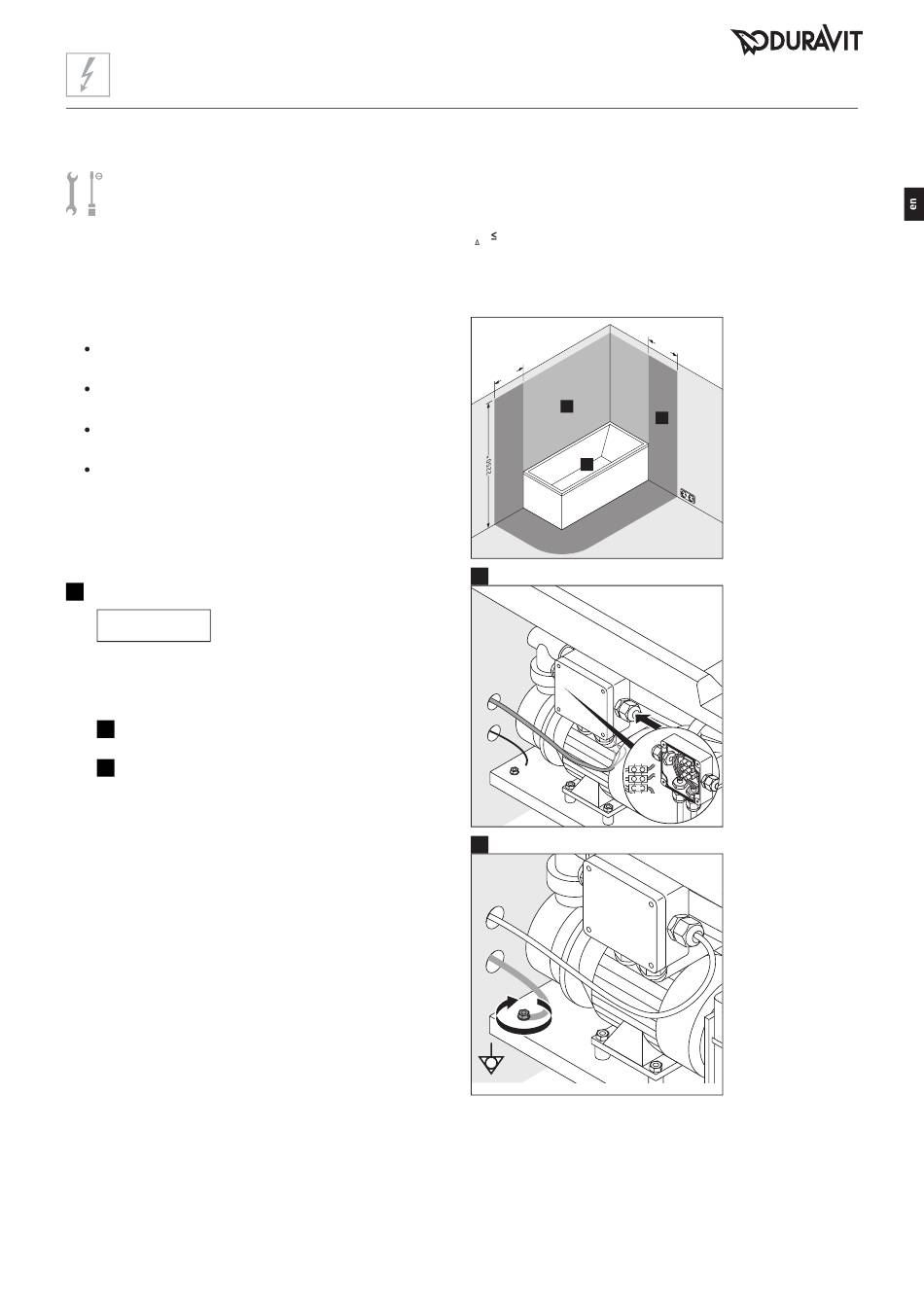

Connecting the whirltub (Diagram 18)
Malfunctions due to incorrect
NOTICE
installation!
> Do not fasten the cables together with cable ties.
> Do not install the supply line parallel to the control
cables.
I
Connect the supply line to the mains supply socket.
II
Connect the potential equalisation cable to the
whirltub.
All manuals and user guides at all-guides.com
76xxxx xx x xx xx00: 50 Hz, 220 - 240 V AC
76xxxx xx x xx xx06: 60 Hz, 220 - 240 V AC
I = 16 A
N
I
N
Safety areas in accordance with DIN VDE 0100-701
I
II
30 mA
6 0
0
0
6 0
1
2
0
L
N
PE
WH_M_Sundeck_built-in_rail-mounting-system/15.11.1
* or the height
of the highest
shower head /
water outlet that
is permanently
installed,
depending on
which is higher
