Electrical Installation - Duravit Sundeck 760066 Montageanleitung

Electrical installation

Power supply
Circuit breaker
RCCB
Pre-Installation
> Installing a permanent power supply line:
Install separate circuit breaker and residual-current
circuit breaker (RCCB) upstream
Connect all pole disconnector mains switch upstream
located outside specified protection zones (0 - 2)
Leave 3000 mm of feed cable exposed
> Laying an equipotential bonding cable:
Leave 3000 mm of cable exposed
32

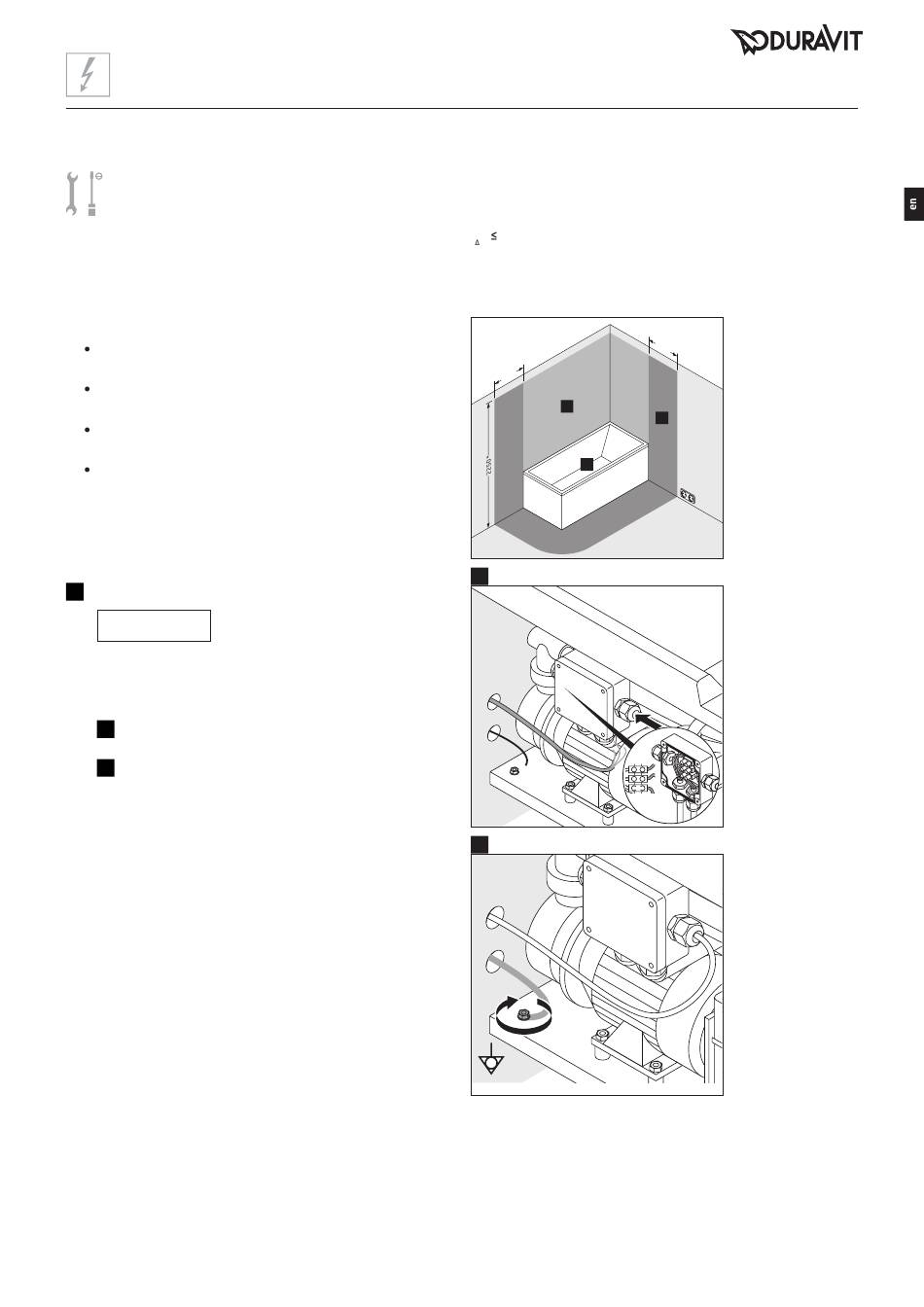

Connecting the whirltub (Diagram 32)
Malfunctions due to incorrect
NOTICE
installation!
> Do not fasten the cables together with cable ties.
> Do not install the supply line parallel to the control
cables.
I
Connect the supply line to the mains supply socket.
II
Connect the potential equalisation cable to the
whirltub.
76xxxx xx x xx xx00: 50 Hz, 220 - 240 V AC
76xxxx xx x xx xx06: 60 Hz, 220 - 240 V AC
I = 16 A
N
I 30 mA
N
Safety areas in accordance with DIN VDE 0100-701
0
6 0
1
0
I
L
N
PE
II
6 0
0
* or the height
2
of the highest
shower head /
water outlet that
is permanently
installed,
depending on
which is higher
WH_M_Sundeck_withPanel_short-pillar/15.11.1
7
