Have a qualified electrician fit a country-specific 230-
V single-phase or AC connector based on the voltage
rating ordered.
i
Machine variants supporting 110 V single-phase AC
come with a connector.

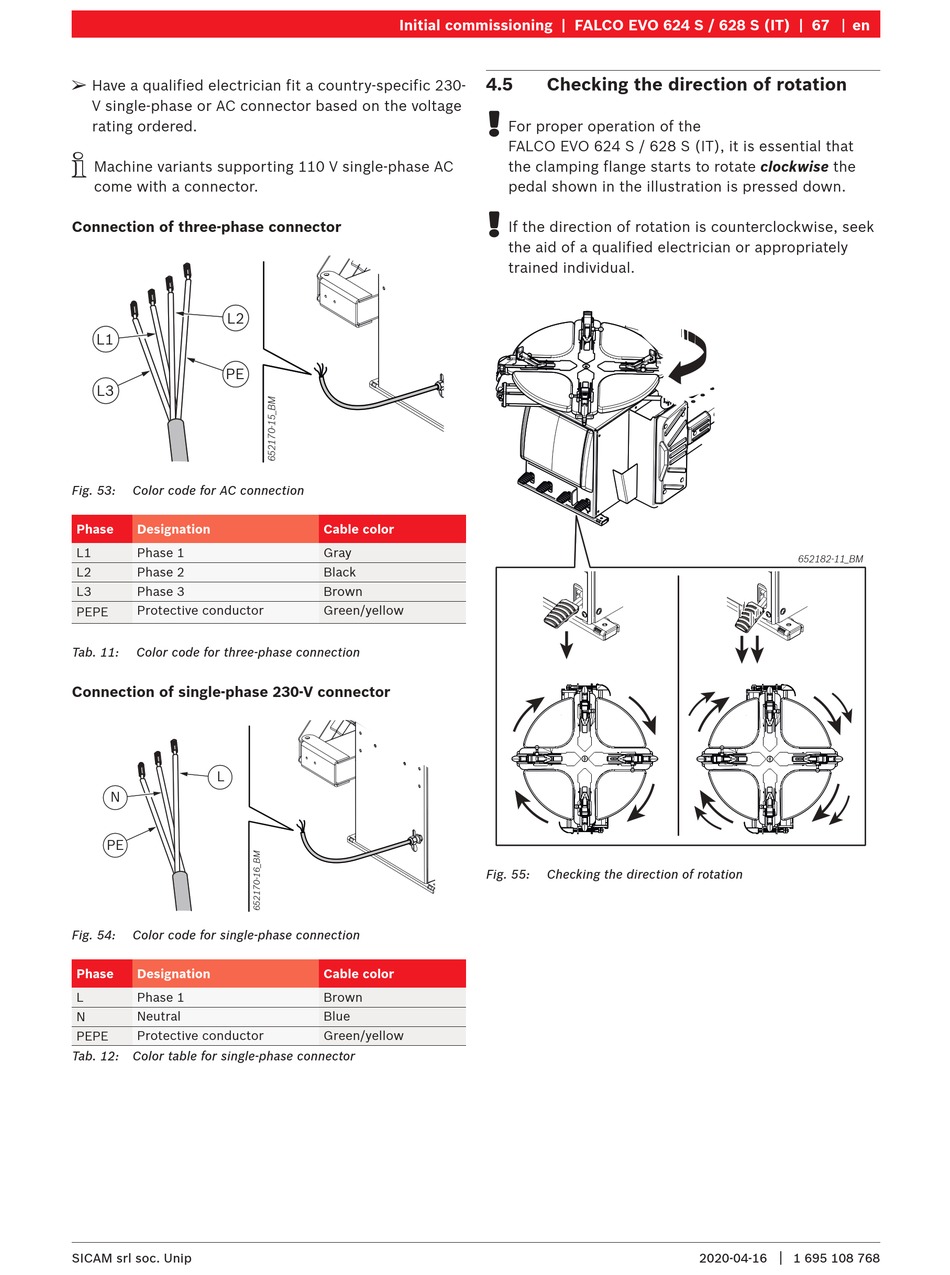

Connection of three-phase connector
L2
L1
PE
L3
Fig. 53:
Color code for AC connection
Phase
Designation
L1
Phase 1
L2
Phase 2
Phase 3
L3
Protective conductor
PEPE
Tab. 11:
Color code for three-phase connection
Connection of single-phase 230-V connector
L
N
PE
Fig. 54:
Color code for single-phase connection
Phase
Designation
L
Phase 1
Neutral
N
PEPE
Protective conductor
Tab. 12:
Color table for single-phase connector
SICAM srl soc. Unip
Initial commissioning | FALCO EVO 624 S / 628 S (IT) | 67
4.5
!
!
Cable color
Gray
Black
Brown
Green/yellow
Fig. 55:
Cable color
Brown
Blue
Green/yellow
Checking the direction of rotation
For proper operation of the
FALCO EVO 624 S / 628 S (IT), it is essential that
the clamping flange starts to rotate clockwise the
pedal shown in the illustration is pressed down.
If the direction of rotation is counterclockwise, seek
the aid of a qualified electrician or appropriately
trained individual.
Checking the direction of rotation
en
652182-11_BM
|
2020-04-16
1 695 108 768
