Datenblatt
Durchflussdiagramme,
DN 40 (continuous)
© Danfoss | 2020.06
Strangregulierventil LENO™ MSV-B
Einstellung
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7

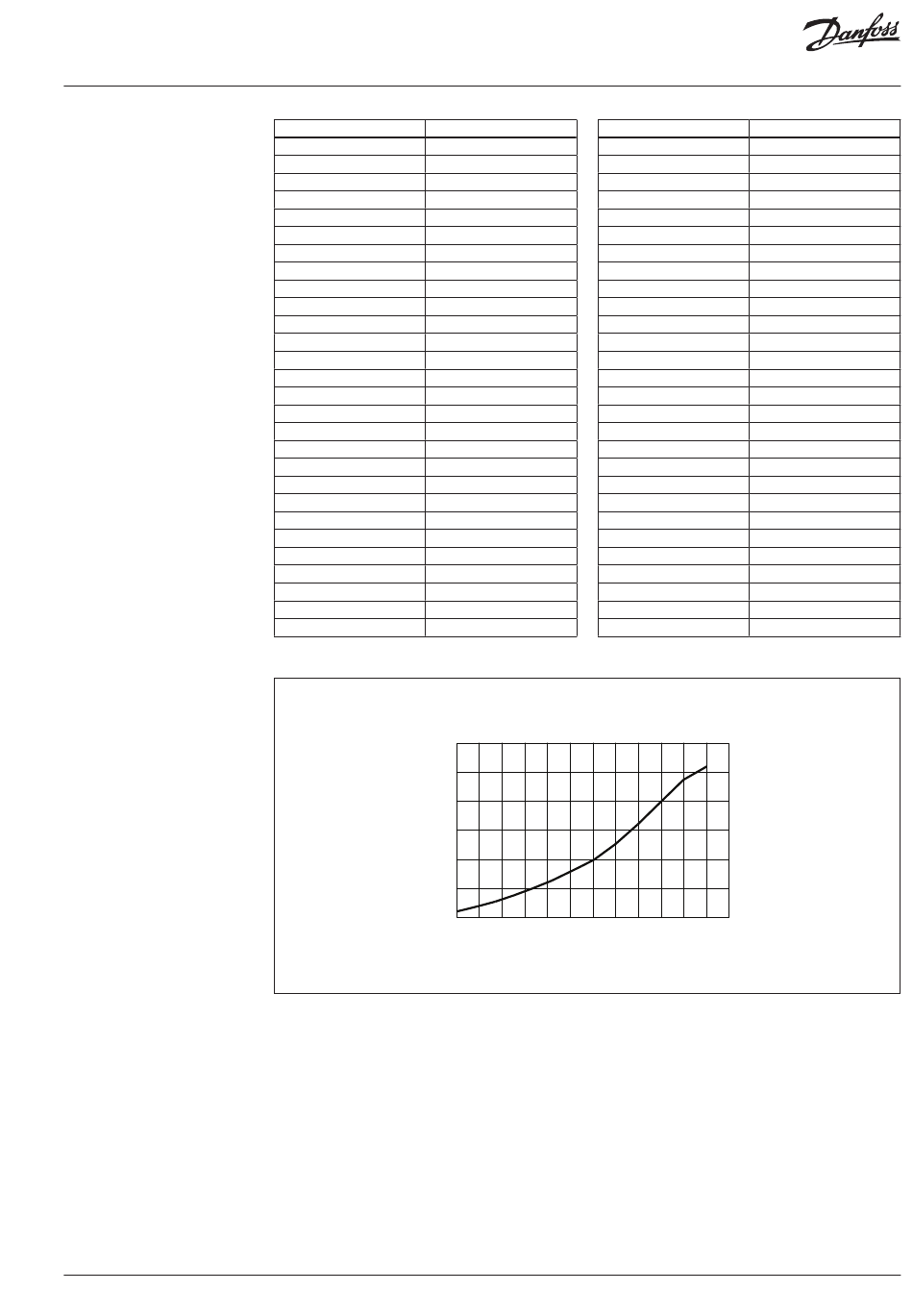

Durchflusscharakteristik
K
v
30
25
20
15
10
5
0
kV-Wert
1.06
1.21
1.38
1.56
1.76
1.97
2.20
2.43
2.68
2.93
3.19
3.46
3.73
4.01
4.29
4.58
4.87
5.17
5.47
5.78
6.09
6.41
6.74
7.09
7.44
7.80
8.18
8.58
-value
0
1 . 0
2 . 0
3 . 0
Setting
Einstellung
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.0
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
5.0
5.1
5.2
5.3
5.4
5.5
4 . 0
5 . 0
6 . 0
AI100486471298de-000401 | 21
kV-Wert
9.00
9.44
9.90
10.38
10.89
11.43
12.00
12.60
13.22
13.88
14.56
15.28
16.02
16.79
17.57
18.38
19.19
20.02
20.82
21.61
22.38
23.12
23.81
24.44
25.00
25.46
25.80
26.00
