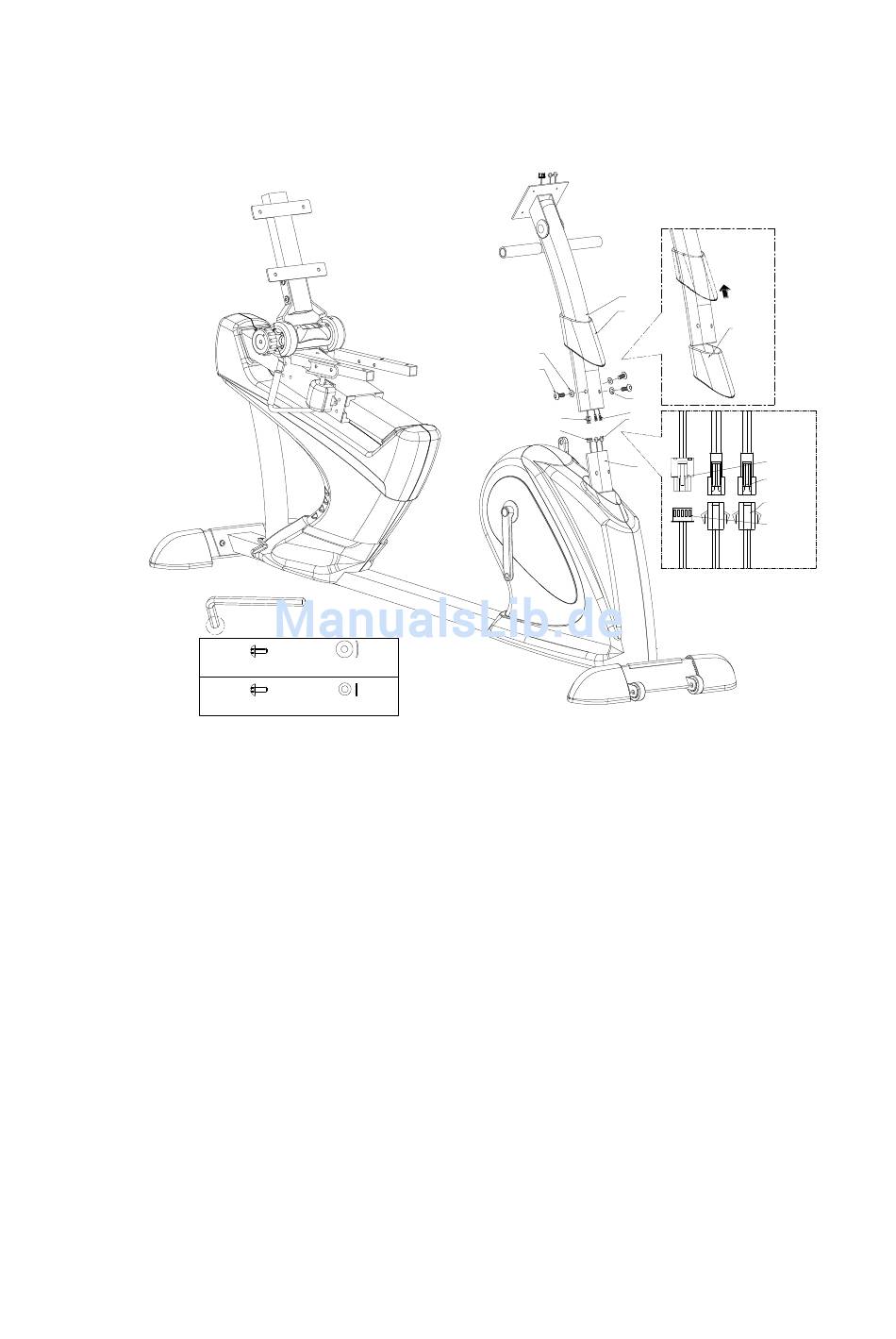

Step 2
a
(x1)
FIG.2
b
(x2)
1. Cover the Upper protective cover (64) into the Handlebar post (5), then lift the upper protective cover.
2. Connect the Upper hand pulse cable (46) and Upper computer cable (52) with Middle hand pulse cable
(52A) and the Lower computer cable (53A) respectively.
3. Fix the handlebar post (5) on the Main frame (1) with one Flat washer (13) and one Inner hex bolt (14)
separately on the left and right side, on the front side using the one Curved washer (11) and one Inner
hex bolt (14).
M8*15L D16*D8.5*1.5T
M8*15L
D16*D8.5*1.2T
13
14
52
53A
9
(A)
5
64
64
106
46
(B)
50A
52
1
46
50A
53A
