3.11 Accesories

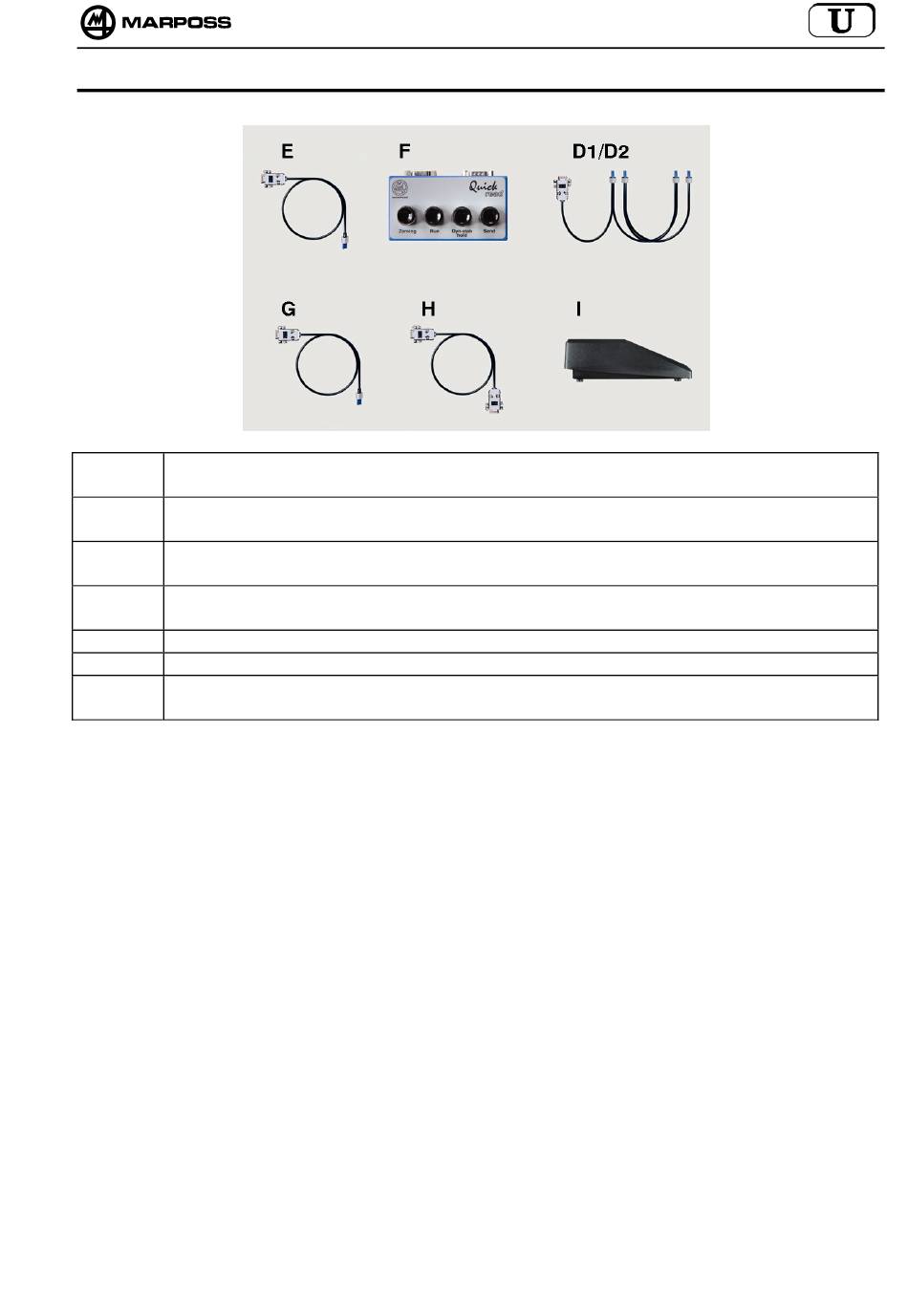

D1
Chain serial cable (L = 4 m) for connection of up to four Quick Read to pushbutton
box, footswitch or PC (9 pins); distance between each Quick Read = 300 mm
D2
Chain serial cable (L = 4 m) for connection of up to four Quick Read to pushbutton
box, footswitch or PC (9 pins); distance between each Quick Read = 600 mm
E
Serial cable (L = 2 m) for connection of one Quick Read to pushbutton box,
footswitch or PC (9 pins)
F
Pushbutton box for remote control of zeroing, dynamic cycle and data transmission
to PC
G
Power supply cable (L = 2 m) for pushbutton box (power feed is from Quick Read)
H
Serial cable (L = 3 m) to connect pushbutton box to PC (9 pins)
I
Footswitch with 1,5 m cable for connection to pushbutton box or to Quick Read (in
this case cable E is needed)
Footswitch
The footswitch can be used to carry out remote zeroing of the Quick Read or dynamic measurements.
3.11.1
Performing remote zeroing with the footswitch
1.
Connect the Quick Read to the footswitch I (code 6738099030) through the serial
cable E (code 6739696157) if only one unit is used, through serial cable D1 or D2
(code 6739696299 or 6739696300 respectively) if more units (max. 4) are used
2.
Enter the programming mode
3.
Program SYST. ID of each Quick Read as a unique number
4.
Program for each Quick Read COM.MODE = i/o zero (all of the units must have the
same programming)
5.
Push the footswitch
•
ZEROED is displayed first on each unit, then the measuring value 0.000
3.11.2
Performing dynamic elaboration with the footswitch
A) With only one Quick Read
1.
Connect the footswitch I (code 6738099030) to the Quick Read through the serial
cable E (code 6739696157).
