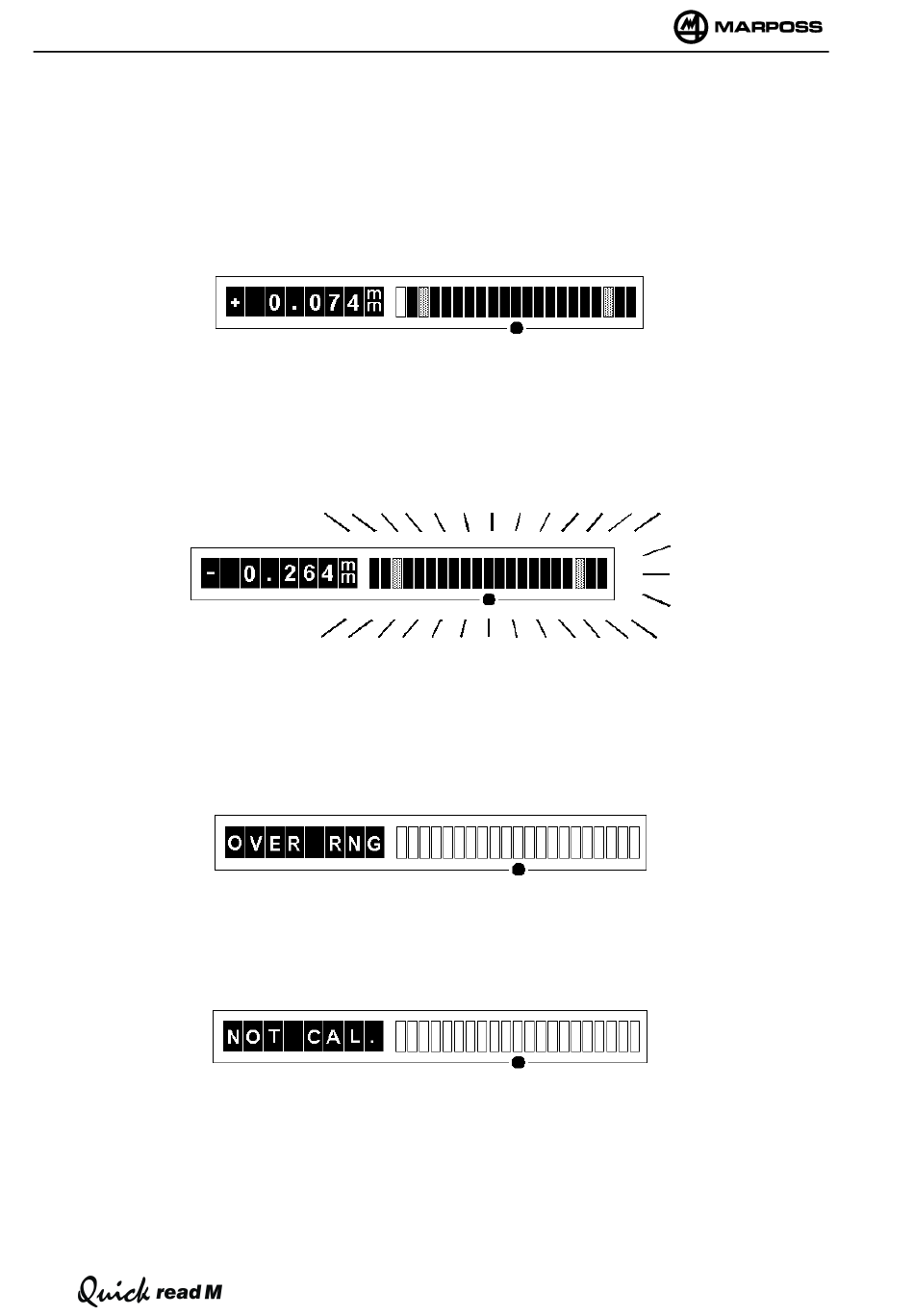

Digital display:
Analog display:
b. Measuring value out of tolerance limits, but lower than the programmed analog scale
range
Digital display:
Analog display:
c. Measuring value higher than the programmed analog scale range, but within the
working range of the gauge
Digital display:
Analog display:
d. Measurement value outside the working range of the gauge (PreTRAV. = off)
Measurement value bigger than the programmed pretravel value (PreTRAV. = on)
Digital display:
Analog display:
e. System not zeroed
Digital display:
Analog display:
54
numeric value of the measurement
green bars for the measuring value;
yellow leds for the tolerance limits
numeric value of the measurement
red bars for the measuring value;
yellow leds for the tolerance limits
numeric value of the measurement
red blinking bars for the measuring value;
yellow blinking bars for the tolerance limits
"OVER RNG" (over range) is displayed
disabled
"NOT CAL" (not calibrated) is displayed
disabled
