JUMPER SETTING & CONNECTORS:
JP4 and JP5:
RI = The pin 9 is connected with the RI signal (Ring Indicator).
as standard RS-232 definition (Factory setting)
PWR = On pin 9 now is set the 5V DC voltage.
S1 + S2
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in
doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your
Computer and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of
your computer. Make sure it is the right expansion slot for the card (see card
description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by
force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 2000/XP/Vista & 7:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system "2000" "XP32" "XP64" "Vista32" "Vista64" "Win7_32bit" or "Win7_64bit"
into the box for the Path/Source and click at >next/continue<. Now Windows search
for the drivers in the specified directory. Follow the hardware assistant and finish the
installation. If Windows recognizes other new devices repeat the above described
steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one or more new "PCI Ports" as sample (LPT2) or (Com3). If you see this or similar
entries the card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 till 256.
5
English English English EX- EX EX - - 44092 44092 44092- - - 3IS 3IS 3IS
DRIVER INSTALLATION :
Windows Server 200x:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system for Server 2000: "2000" for Server 2003: "XP32" or "XP64" and for Server
2008: "VISTA32" or "VISTA64" into the box for the Path/Source and click at >next/
continue<. Now Windows search for the drivers in the specified directory. Follow the
hardware assistant and finish the installation. If Windows recognizes other new devices
repeat the above described steps. Attention! Restart Windows in any case after in-
stalling the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one or more new "PCI Ports" as sample (LPT2) or (Com3). If you see this or similar
entries the card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 till 256.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard IO ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
English English English
S2 9 Pin Stecker
S1 9 Pin Stecker
Die EX-44092-3IS ist eine PCI-Express serielle RS-232 Karte mit 2 seriellen FIFO
16C95x Ports, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten
(z.B. Terminal, Modem, Plotter usw.). Sie unterstützt ESD Surge Protection bis 15KV auf
allen Leitungen und Optical Isolation bis 2.5KV. Der serielle PCI-Express Bus unterstützt
dabei optimal die Leistung des schnellen 16C95x Chip-Set mit 128byte FIFO Cache.
Die EX-44092-3IS gewährleistet so eine sichere Datenübertragung und exzellente
Performance von bis zu 921KBaud/s für jedes angeschlossene Gerät! Sie unterstützt
alle PCI-Express Slots von x1 bis x16. Es ist nicht möglich die I/O Adressen und Inter-
rupts manuell einzustellen, da die Einstellungen der Karte vom System (BIOS) und
beim Installieren des Betriebssystems automatisch vorgenommen werden. Mit dem
Jumper JP4 & JP5 können Sie 5V auf Pin 9 des seriellen Anschlusses leiten. Achten
Sie bitte darauf dass die Angeschlossenen Geräte dies auch unterstützen.
Kompatibilität:
Betriebs Systeme:
Anschlüsse:
Lieferumfang:
Zertifikate:
DB9M:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 1.0 / 28.11.12

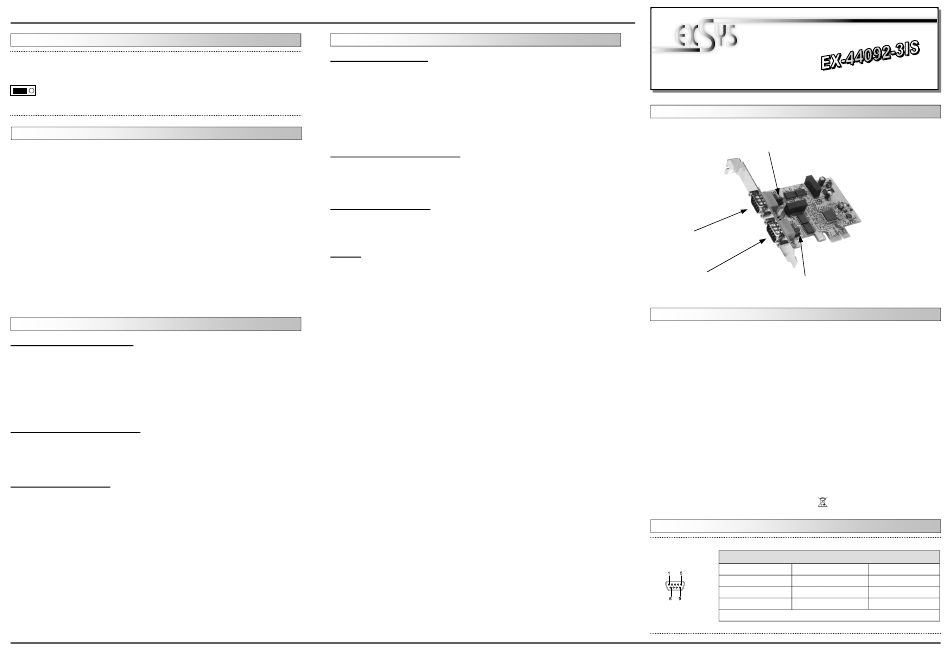

AUFBAU :
JP5 S2 Power auf 9 Pin Stecker Ein/Aus
Seriell Anschluss
JP4 S1 Power auf 9 Pin Stecker Ein/Aus
Seriell Anschluss
BESCHREIBUNG & TECHNISCHE DATEN :
PCI Express x1 bis x16
WIN 9x/ ME/ 2000/ XP/ Vista/7/ 8/ Server 200x/(Linux vom OS)
2 x 9 Pin Sub-D Stecker
EX-44092-3IS, Treiber CD, Anleitung
CE CE CE CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
ANSCHLÜSSE:
Seriell 9 Pin D-SUB Stecker (S1 und S2):
Pin Signal Pin
1 NC 4
2 RXD 5 GROUND
3 TXD 6
NC = Nicht Angeschlossen
1
Signal Pin Signal
NC 7 NC
8 NC
NC 9 NC
