Exsys EX-44095-2 Bedienungsanleitung

EX- EX EX - - 44095- 44095 44095 - - 2 2 2
JUMPER SETTING & CONNECTORS
JP6:
This jumper JP6 is used to control the baud rate clock input of the
UARTs. There are 2 settings.
LOW = The clock is 1.8432MHz, the maximum baud rate is
115.2Kbps.
HI = The clock is 14.7456MHz, the maximum baud rate is
LOW HI
921.6Kbps. (Factory setting)
NOTE: If you use the HI clock setting then you must change the com
port settings in the device manager! Please select detect crystal auto-
matically and set the clock value for your application.
J7:
1 +5V
For aux power (JP3), J7 must be connected to pc power supply!
2 GND
If not, the card won't work.
3 GND
4 +12V
DB9M:
Serial 9 Pin D-SUB connector
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
DB 25F:
Parallel 25 female connector
Pin Signal Pin
1 STROBE 10 ACKNOWLEDGE
2 DATA 0 11
3 DATA 1 12 PAPER EMPTY
4 DATA 2 13 SELECT
5 DATA 3 14 AUTO FEED
6 DATA 4 15 ERROR
7 DATA 5 16
8 DATA 6 17 SELECT INPUT
9 DATA 7 18 GROUND
HARDWARE INSTALLATION
If you are ready with the jumper settings, please proceed with the following installation instructions.
Because there are large differences between PC's, we can give you only a general installation
guide. Please refer to your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/ or sides panels of your Computer and
gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your com-
puter. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card. Make sure
the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
5
English English English EX- EX EX - - 44095 44095 44095-
DRIVER INSTALLATION
Windows 9x/ ME/ 2000/ XP/ Vista/ 7/ 8
After starting Windows it recognizes a new "PCI Controller" and opens the hardware assis-
tant. Please choose manual installation and put the driver CD into your CD-ROM drive. Now
enter the Path "D:\IO\OXFORD\" and then the directory of your operating system into the box
for the Path/Source and click at >next/continue<. Now Windows searches for the drivers in
the specified directory. Follow the hardware assistant and finish the installation. If Windows
recognizes other new devices repeat the above described steps. Attention! Restart Windows
in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
opens select >Device Manager<. Under „Ports (COM and LPT)" you should find a new „PCI
Port" as sample (Com3). If you see this or similar entries the card is installed correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 to
COM256.
Signal Pin Signal Windows Server 200x
DTR 7 RTS After starting Windows it recognizes a new "PCI Controller" and opens the hardware assis-
tant. Please choose manual installation and put the driver CD into your CD-ROM drive. Now
8 CTS
enter the Path "D:\IO\OXFORD\" and then the directory of your operating system for Server
DSR 9 RI
2000 "2000", for Server 2003 "XP32" or "XP64", for Server 2008 „Vista32" or „Vista64" and
for Server 2008 R2 „Win7_8_32bit" or „Win7_8_64bit" into the box for the Path/Source and
click at >next/continue<. Now Windows searches for the drivers in the specified directory.
Follow the hardware assistant and finish the installation. If Windows recognizes other new
devices repeat the above described steps. Attention! Restart Windows in any case after
installing the drivers.
Signal Pin Signal
19 GROUND CHECK THE INSTALLED DRIVER
BUSY 20 GROUND Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
opens select >Device Manager<. Under „Ports (COM and LPT)" you should find a new „PCI
21 GROUND
Port" as sample (Com3). If you see this or similar entries the card is installed correctly.
22 GROUND
CHANGE PORT NUMBER
23 GROUND
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
24 GROUND
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 to
INIT 25 GROUND
COM256.
Windows NT 4.0
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:). Click at
>Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe" then click >OK<. Windows
NT will now start the setup program and install the driver. Please Restart Windows NT after
installing the drivers.
CHECK THE INSTALLED DRIVER
Click at >Start< >Programs< >Administrative
Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09
PCI". Then click at >I/O-Port< here you should see the entries „D400-D407 oxser
„D800-D802
addresses can change depends which system and card is installed. If you see these or similar
entry's the card is installed correctly.
LINUX
There are no drivers available for Linux, but the card is supported by the most versions of
Linux. Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction. Please refer to the installation manual for standard I/O
ports from your Linux version! In some newer versions the card will even be installed automati-
cally after starting Linux.
- - 2 2 2
Tools[Common]< >Windows
oxser 0 PCI" and „DC00-DC1F oxser 0 PCI" for the ports. The I/O
6
English English English
Bedienungsanleitung Bedienungsanleitung
Vers. 1.2 / 13.06.14
AUFBAU
S2: 9 Pin Stecker JP2: Power auf
Serieller 9 Pin Stecker
Anschluss Ein/Aus
S4: 9 Pin Stecker
Serieller
Anschluss
P1: 25 Pin
Buchse
Parallel
Anschluss
S3: 9 Pin Stecker
Serieller Anschluss
S1: 9 Pin Stecker
Serieller Anschluss
BESCHREIBUNG & TECHNISCHE DATEN

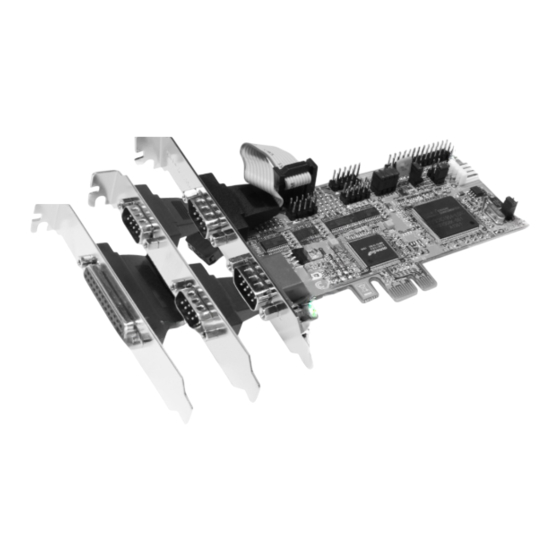

Die EX-44095-2 ist eine PCI-Express Multi I/O Karte mit einem Parallel Centronics EPP/ECP
Port und 4 seriellen FIFO 16C95x Ports, für den Anschluss von High-Speed seriellen RS-232
Peripherie Geräten (z.B. Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unter-
stützt dabei optimal die Leistung des schnellen 16C95x Chipsets mit 128byte FIFO Cache. Die
EX-44095-2 gewährleistet so eine sichere Datenübertragung und exzellente Performance von
bis zu 921KBaud/s für jedes angeschlossene Gerät! Sie unterstützt alle PCI-Express Slots von
x1 bis x16. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustellen, da die
Einstellungen der Karte vom System (BIOS) und beim Installieren des Betriebssystems auto-
matisch vorgenommen werden. Mit dem Jumper JP6 können Sie vom Standard Quarz
(1.843MHz) auf den schnellen (14.7456MHz) Quarz umschalten. Beachten Sie bitte falls Sie
mit dem schnellen Quarz arbeiten, dass die Peripheriegeräte dies auch unterstützen. Im
Gerätemanager muss ausserdem die richtige Teilung (Divisor) & Geschwindigkeit manuell
eingestellt werden.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: WIN 9.x/ ME/ NT4.0/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ (Linux v. OS)
Anschlüsse: 4x 9 Pin D-Sub Stecker, 1x 25 Pin parallel Buchse
Lieferumfang: EX-44095-2, Treiber CD, Anleitung, 2x 9 Pin Kabel, 1x 25 Pin Kabel
Zertifikate: CE CE CE CE / FCC / RoHS / WEEE
NT-
oxser 0
JUMPER EINSTELLUNG & ANSCHLÜSSE
0 PCI"
JP2:
DIS = Am Pin 9 liegt das Standard Signal RI (Ring Indicator) an.
(Werkseinstellung)
PWR = Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V
eingestellt werden.
Die Einstellung der Spannung nehmen Sie mit dem JP3 vor. Dies sollte
aber bei Standard Anwendungen nicht verstellt werden.
JP3:
Wenn Sie den Jumper JP2 für auf PWR gesetzt haben, können Sie mit
dem Jumper JP3 den Spannungswert einstellen. Es gibt 3 verschiedene
Spannungsquellen.
AUX5V
(Nur in Verbindung mit JP2 auf PWR!!!)
AUX12V
PCI12V
AUX 5V = 5Volt vom PC-Netzteil
AUX 12V = 12Volt vom PC-Netzteil
PCI 12V = 12Volt vom Mainboard (Werkseinstellung)
J12: Interner JP3: Jumper für die
Parallel Port Stromquelle
für 25 Pin Kabel (Netzteil oder
PCI-Express Bus)
J7: Anschluss für
Strom vom
PC Netzteil
JP6: Umschalter
Baudrate
JP5: UART Mode Einstellung
(Nur für Testzwecke)
J1-J4: Interne Serielle
Anschlüsse
DE97424562 / WHQL
