JUMPER SETTING & CONNECTORS
J7:
1 +5V
For aux power (JP3), J7 must be connected to pc power supply !
2 GND
3 GND If not, the card wont work.
4 +12V
DB 9M:
Serial 9 Pin D-SUB connector
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because there are large differences between PC's, we can give you only a
general installation guide. Please refer to your computer's reference manual whenever
in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/ or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows 9x/ ME/ 2000/ XP/ Vista/ 7/ 8
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system into the box for the Path/Source and click at >next/continue<. Now Windows
searches for the drivers in the specified directory. Follow the hardware assistant and
finish the installation. If Windows recognizes other new devices repeat the above de-
scribed steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that opens select >Device Manager<. Under „Ports (COM and LPT)" you should find
a new „PCI Port" as sample (Com3). If you see this or similar entries the card is in-
stalled correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM3 to COM256.
5
English English English EX EX- EX - - 44092- 44092 44092
DRIVER INSTALLATION
Windows Server 200x
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system for Server 2000 "2000", for Server 2003 "XP32" or "XP64", for Server 2008
„Vista32" or „Vista64" and for Server 2008 R2 „Win7_8_32bit" or „Win7_8_64bit" into
the box for the Path/Source and click at >next/continue<. Now Windows searches for
Signal Pin Signal the drivers in the specified directory. Follow the hardware assistant and finish the instal-
lation. If Windows recognizes other new devices repeat the above described steps.
DTR 7 RTS
Attention! Restart Windows in any case after installing the drivers.
8 CTS
CHECK THE INSTALLED DRIVER
DSR 9 RI
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that opens select >Device Manager<. Under „Ports (COM and LPT)" you should find
a new „PCI Port" as sample (Com3). If you see this or similar entries the card is in-
stalled correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM3 to COM256.
Windows NT 4.0
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe" then click
>OK<. Windows NT will now start the setup program and install the driver. Please
Restart Windows NT after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at >Start< >Programs< >Administrative Tools[Common]< >Windows NT-
Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09
oxser 0 PCI". Then click at >I/O-Port< here you should see the entries „D400-D407
oxser 0
for the ports. The I/O addresses can change depends which system and card is in-
stalled. If you see these or similar entry's the card is installed correctly.
LINUX
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard I/O ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
- - 2 / 2 / EX 2 / EX EX- - - 44292- 44292 44292 - - 2 2 2
PCI" „D800-D802 oxser 0 PCI" and „DC00-DC1F oxser 0 PCI"
6
English English English
Bedienungsanleitung Bedienungsanleitung
Vers. 1.1 / 02.07.13

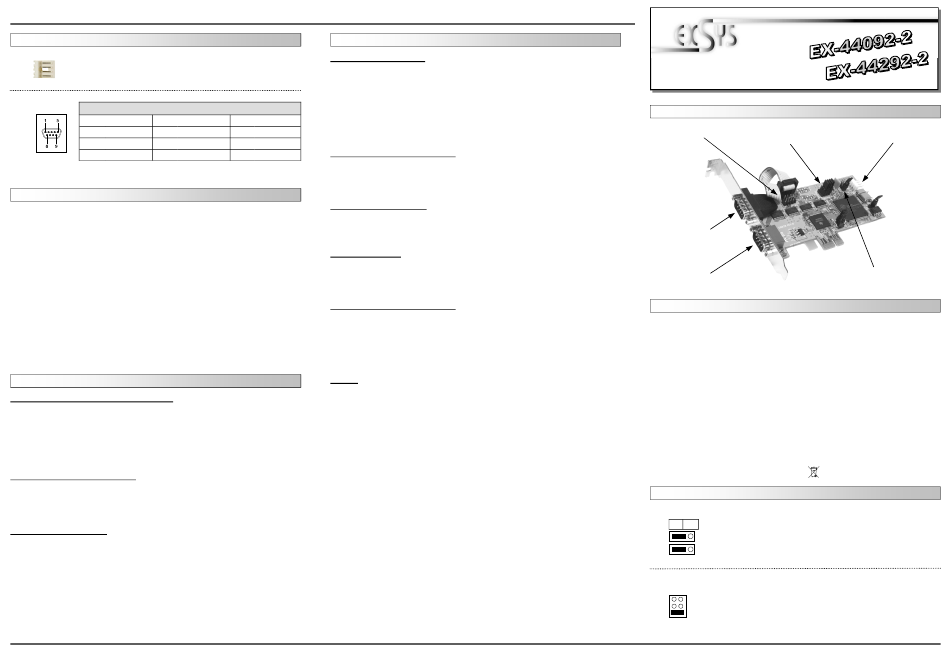

AUFBAU
J1: Interner Serieller JP2: Power auf 9 Pin
Anschluss
S2: 9 Pin Stecker
Serieller Anschluss
S1: 9 Pin Stecker
Serieller Anschluss
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-44092-2 / EX-44292-2 ist eine PCI-Express serielle RS-232 Karte mit 2 seriel-
len FIFO 16C95x Ports, für den Anschluss von High-Speed seriellen RS-232 Peripherie
Geräten (z.B. Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt
dabei optimal die Leistung des schnellen 16C95x Chipset mit 128byte FIFO Cache. Die
EX-44092-2 / EX-44292-2 gewährleistet so eine sichere Datenübertragung und exzel-
lente Performance von bis zu 921KBaud/s für jedes angeschlossene Gerät! Sie unter-
stützt alle PCI-Express Slots von x1 bis x16. Es ist nicht möglich die I/O Adressen und
Interrupts manuell einzustellen, da die Einstellungen der Karte vom System (BIOS) und
beim installieren des Betriebssystems automatisch vorgenommen werden. Im Geräte-
manager muss für höhere Geschwindigkeiten über 115.2Kbaud evtl. die richtige Tei-
lung (Divisor) und Geschwindigkeit manuell eingestellt werden. Bei der EX-44292-2
handelt es sich um eine Low Profile Karte mit 8cm hohem Slotblech.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: WIN 9x/ ME/ NT4.0/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Linux
Anschlüsse: 2x 9 Pin Seriell D-SUB Stecker
Lieferumfang: EX-44092-2 oder EX-44292-2, Treiber CD, Anleitung
Zertifikate: CE / FCC / RoHS / WEEE CE
CE CE
JUMPER EINSTELLUNG & ANSCHLÜSSE
JP2:
DIS = Am Pin 9 liegt das Standard Signal RI (Ring Indicator)
(Werkseinstellung)
DIS PWR
PWR = Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V
eingestellt werden
S1
S2 Die Einstellung der Spannung nehmen Sie mit dem JP3 vor. Dies sollte
aber bei Standard Anwendungen nicht verstellt werden.
Wenn Sie den Jumper JP2 auf PWR gesetzt haben, können Sie mit
JP3:
dem Jumper JP3 den Spannungswert einstellen. Es gibt 3 verschiedene
Spannungsquellen.
AUX5V
(Nur in Verbindung mit JP2 auf PWR!!!)
AUX12V
AUX 5V = 5Volt vom PC-Netzteil
PCI12V
AUX 12V = 12Volt vom PC-Netzteil
PCI 12V = 12Volt vom Mainboard (STANDARD)
J7: Anschluss für Strom
Stecker Ein/Aus vom PC Netzteil
JP3: Jumper für die Stromquelle
(Netzteil oder PCI-Express Bus)
DE97424562 / WHQL
