Exsys EX-44094 Bedienungsanleitung

EX EX- EX - - 44094 44094 44094

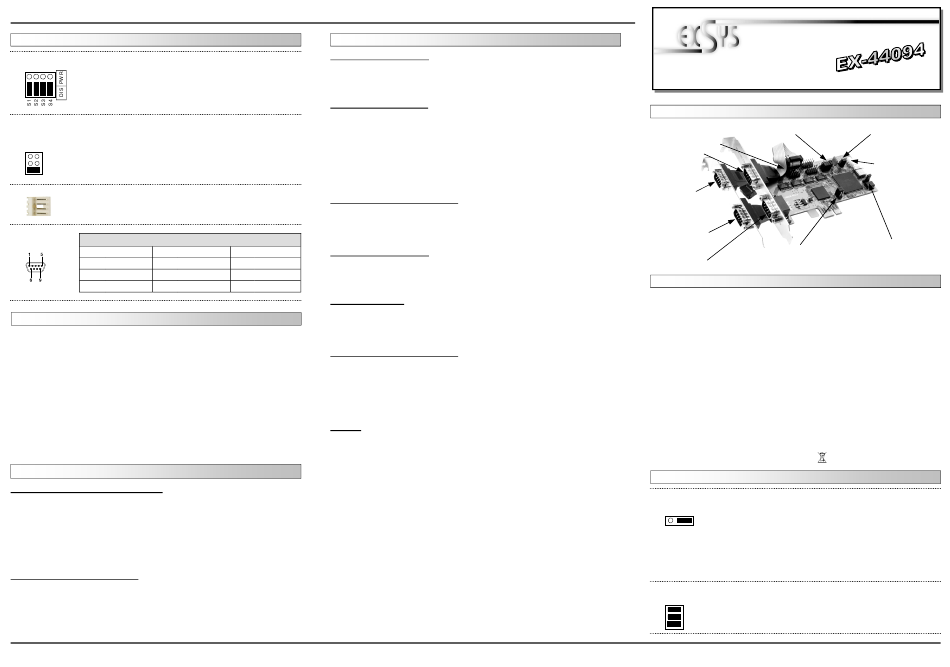

JUMPER SETTING & CONNECTORS:
DIS = The pin 9 is connected with the RI (Ring Indicator)
JP3:
signal as standard RS-232 definition (Factory setting).
PWR = The pin 9 is connected with a power either from PCI
Express slot or from Aux Power connector (J8) The power source is
controlled by JP4 jumper (see the following section).
JP4: Only if JP3 is set to PWR! The pin 9 from the serial port connector will
be supplied with DC5V or DC12V. There are 3 sources depends on the
jumper position of JP4.
AUX5V = DC5V from J8, pc power supply connection is required
AUX5V
AUX12V = DC12V from J8, pc power supply connection is required
AUX12V
PCI12V PCI12V = DC12V from PCI Express (Factory setting) J8 no cable
J8:
1 +5V
For aux power (JP4) J8 must be connected to pc power supply !
2 GND
If not, the card wont work.
3 GND
4 +12V
DB 9M:
Serial 9 Pin D-SUB connector (S1 to S4):
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 9x/ME/2000/XP/Vista & 7:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system "95_98_ME" "2000" "XP32" "XP64" "Vista32" "Vista64" "Win7_32bit" or
"Win7_64bit" into the box for the Path/Source and click at >next/continue<. Now
Windows search for the drivers in the specified directory. Follow the hardware assistant
and finish the installation. If Windows recognizes other new devices repeat the above
described steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one or more new "PCI Ports" as sample (LPT2) or (Com3). If you see this or similar
entries the card is installed correctly.
5
English English English EX EX EX- - - 44094 44094 44094
DRIVER INSTALLATION :
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 till 256. This also applies to the LPT Ports!
Windows Server 200x:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system for Server 2000: "2000" for Server 2003: "XP32" or "XP64" and for Server
2008: "VISTA32" or "VISTA64" into the box for the Path/Source and click at >next/
continue<. Now Windows search for the drivers in the specified directory. Follow the
hardware assistant and finish the installation. If Windows recognizes other new devices
repeat the above described steps. Attention! Restart Windows in any case after install-
ing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under „Ports (COM and LPT)" you should find
one or more new "PCI Ports" as sample (LPT2) or (Com3). If you see this or similar
entries the card is installed correctly.
Signal Pin Signal CHANGE PORT NUMBER:
DTR 7 RTS If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
8 CTS
between COM 3 till 256. This also applies to the LPT Ports!
DSR 9 RI
Windows NT 4.0:
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe and In-
stall_Parallel.exe" then click >OK<. Windows NT will now start the setup program and
install the driver. Please Restart Windows NT after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Programs< >Administrative Tools[Common]< >Windows NT-
Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09
oxser 0 PCI". Then click at >I/O-Port< here you should see the entries „D400-D407
oxser 0
for the ports. The I/O addresses can change depends which system and card is in-
stalled. If you see these or similar entry's the card is installed correctly.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard IO ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
PCI" „D800-D802 oxser 0 PCI" and „DC00-DC1F oxser 0 PCI"
6
English English English
Bedienungsanleitung
Bedienungsanleitung
Vers. 3.2 / 20.07.10
AUFBAU :
S1- Interne Serielle JP3 Power auf 9 Pin Stecker
S4 Anschlüsse
S2 9 Pin Stecker
S4 9 Pin Stecker
S3 9 Pin Stecker
JP2 UART Mode Einstellung
(Nur für Testzwecke im Werk)
S1 9 Pin Stecker
BESCHREIBUNG & TECHNISCHE DATEN :

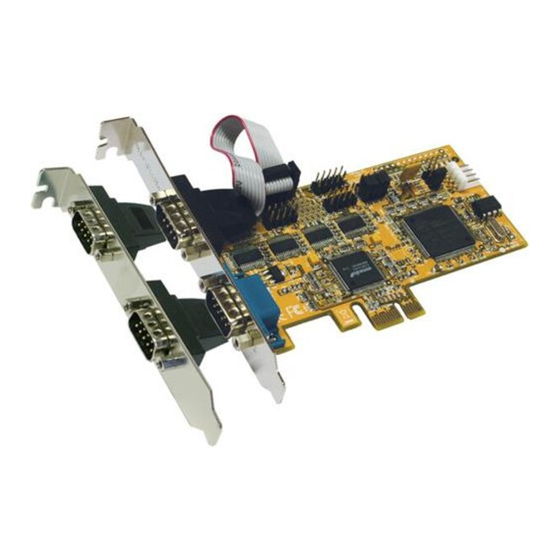

Die EX-44094 ist eine PCI-Express serielle RS-232 Karte mit 4 seriellen FIFO 16C95x
Ports, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B.
Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei optimal
die Leistung des schnellen 16C95x Chip-Sets mit 128byte FIFO Cache. Die Karte
gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu
921KBaud/s für jedes angeschlossene Gerät! Sie unterstützt alle PCI-Express Slots
von x1 bis x16. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustel-
len, da die Einstellungen der Karte vom System (BIOS) und beim Installieren des
Betriebssystems automatisch vorgenommen werden. Mit dem Jumper JP1 können Sie
vom Standard Quarz (1.843MHz) auf den hohen (14.7456MHz) Quarz umschalten.
Beachten Sie bitte falls Sie mit dem hohen Quarz arbeiten, dass die Peripheriegeräte
dies auch unterstützen. Im Gerätemanager muss ausserdem die richtige Teilung
(Divisor) und Geschwindigkeit manuell eingestellt werden!
Kompatibilität: PCI Express x1 bis x16
Betriebs Systeme: WIN 9x/ME/NT4/2000/XP/Vista/7/Server 200x/(Linux vom OS)
Anschlüsse: 4 x 9 Pin Sub-D Stecker
Lieferumfang: EX-44094, Treiber CD, Anleitung, 1 x Bügel mit 2 x 9 Pin Kabel
CE CE CE CE
Zertifikate: / FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE:
JP1: Mit dem Jumper JP1 können sie zwischen zwei Clock Geschwindigkei-
ten wählen für Kompatibilität oder höhere Baudraten.
LOW = Der Quarz ist auf 1.8432Mhz eingestellt für eine maximale
HI LOW
HI = Der Quarz ist auf 14.7456Mhz eingestellt für die maximale
Bemerkung: Bei der Einstellung HI müssen sie im Gerätemanager von
Windows bei den COM Port Einstellungen den Wert des Quarz automa-
tisch suchen und einstellen!
JP2: Die Jumper auf JP2 bitte nicht verändern. Sie sind nur für Testzwecke
im Werk!
M2 M2 = Jumper gesetzt
M1 M1 = Jumper gesetzt
M0 M0 = Jumper gesetzt
JP4 Jumper für die Strom-
quelle (Netzteil oder
PCI-Express Bus)
J8 Anschluss für den
Strom vom Netzteil
JP1 Baudraten Umschalter
(für Geschwindigkeiten
über 115.2KBaud)
DE97424562 / WHQL
Baudrate von 115.2KBaud. (Werkseinstellung). Diese
Einstellung ist für die meisten Anwendungen optimal.
Baudrate von 921.6KBaud.
