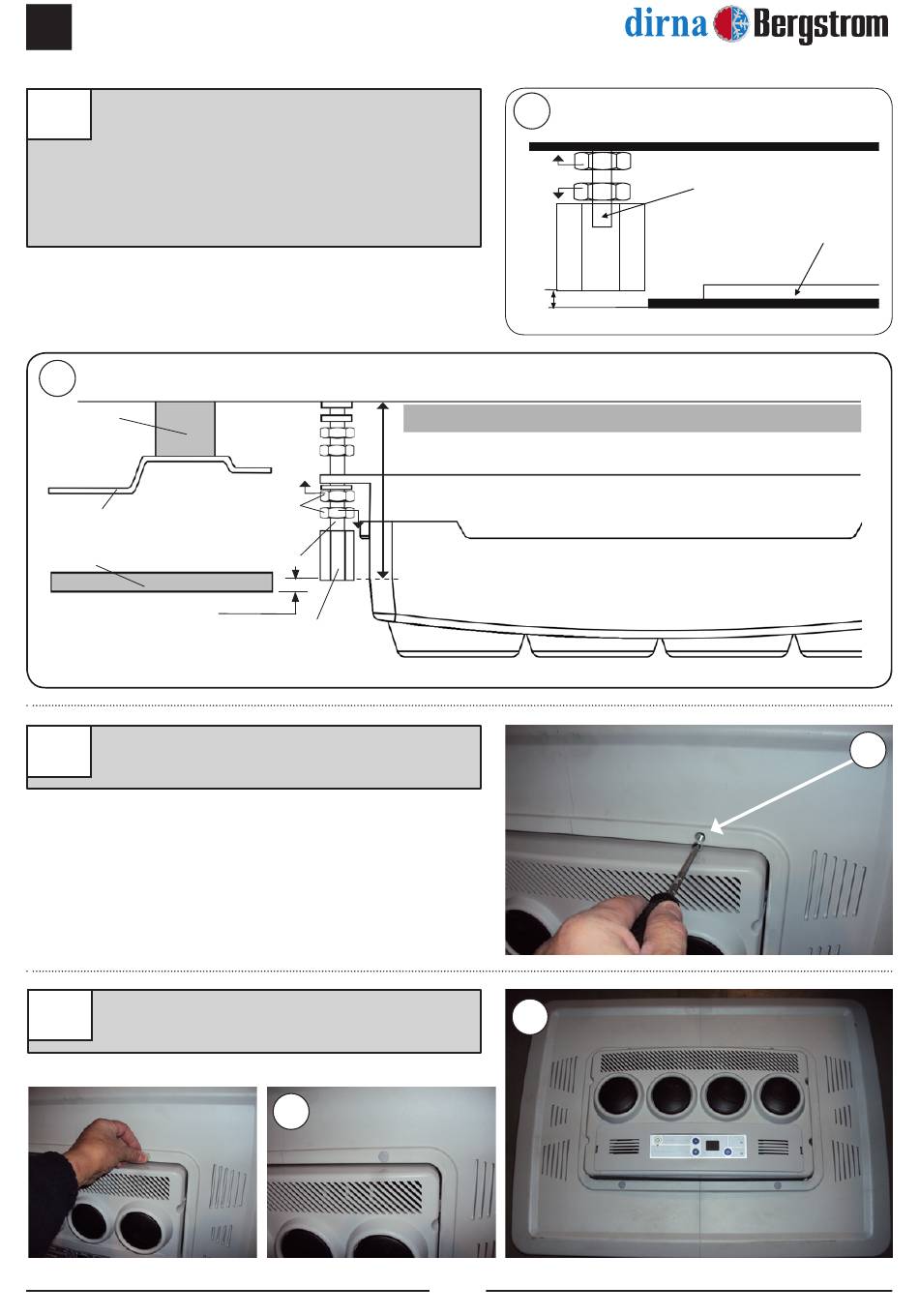

Position nut M6 (A) after the fastening nut of
16
the interior air distribution panel on each stud.
Screw on M6 hexagons up to 1 mm above the
upholstery. Unscrew M6 nuts (A) of this point
until they come into contact with the hexagons,
and tighten against them.
16
EPDM
Gasket
Cabin roof
Upholstey
Place console using (4) M6/100x15 allen head
17
screws bolts.
Cover the (4) nuts M6/100 x 15 allen with the
17a
round protection caps of M6 plastic.
Base
D
(A)
M6 Nut
M6 stud
1 mm.
M6 Hexagons
17a
16
1 mm
Approx.
Interior air distribution panel
17a
26
Base Compact
M6 Hexagons
(A)
Upholstery
Foam
®
17
