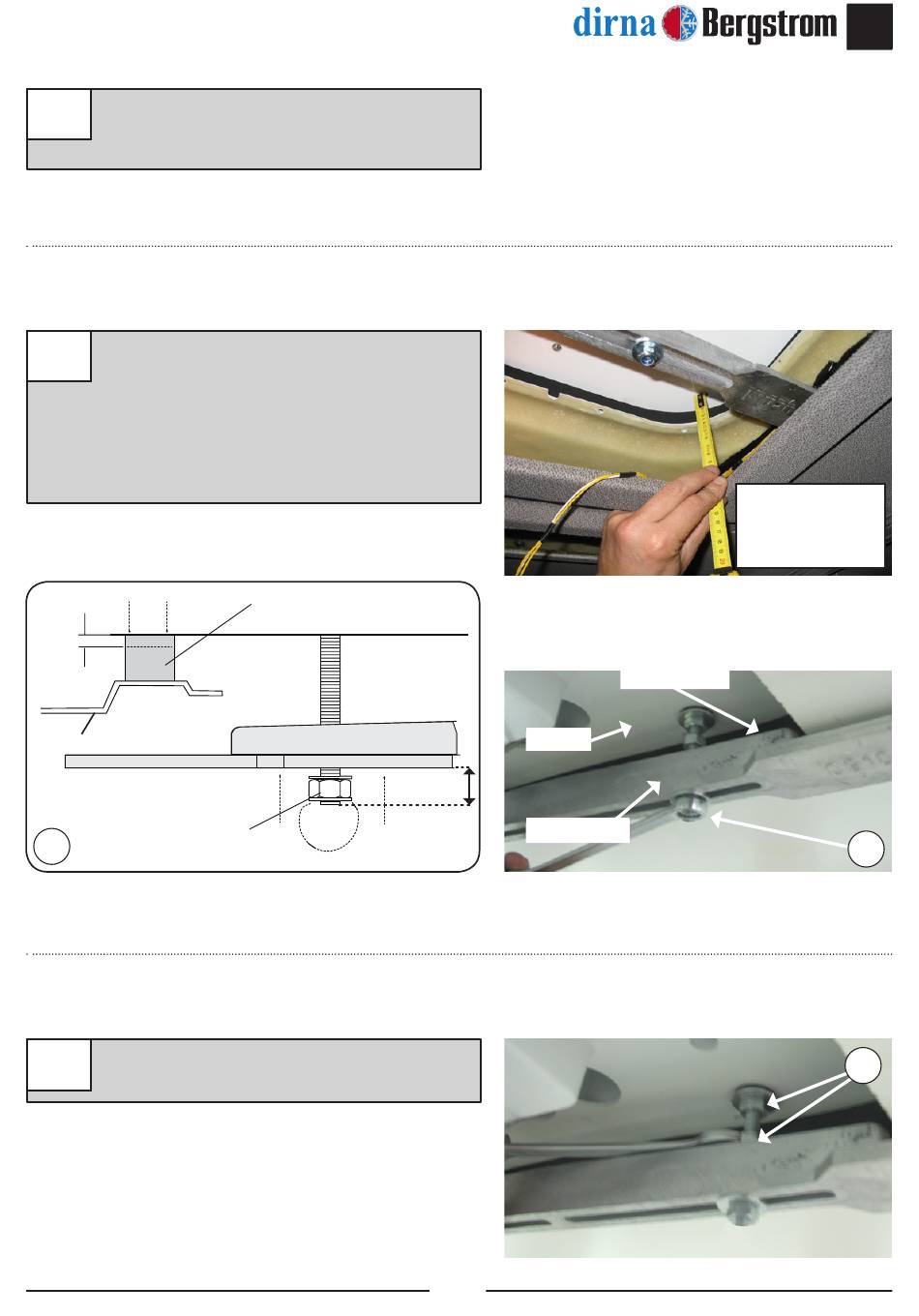

Place console and centre equipment in the
13
most convenient place of cabin roof. Once
centred, remove console for later installation.
Fasten supports tightening nuts until outside
14
EPDM joint of equipment is compressed,
between 3 and 6 mm.
Important: To avoid water from filtering inside
cabin, check EPDM joint tightening with unit
base, as indicated on diagram.
3-6mm.
Cabin roof
Fasten selflocked nut until
EPDM gasket is compressed
14
between 3 and 6 mm.
Tighten (4) M8 nuts to support and (4) to Unit
15
base.
EPDM gasket
10 mm*
(*) (approx. after tightening)
Base
Bracket
25
Check compression
thickness using a
tape measure in the
four corners.
EPDM gasket
