OPERATION

After you connected the effect to the mains, the LED GKF-60 DMX / LED GKF-150 DMX Kaleidoscope Effect
starts running. During the Reset, the motors are trimmed and the device is ready for use afterwards.
Turn the objective-lens for adjusting the focus in order to obtain a sharp projection.

Stand Alone operation

In the Stand Alone mode, the LED GKF-60 DMX / LED GKF-150 DMX Kaleidoscope Effect can be used
without controller. You can do without a controller as the device features a built-in microphone, which
provides automatic sound control.
Disconnect the LED GKF-60 DMX / LED GKF-150 DMX Kaleidoscope Effect from the controller and select
the desired "Master Mode".

Master/Slave-operation

The master/slave-operation enables that several devices can be synchronized and controlled by one master-
device.
On the rear panel of the LED GKF-60 DMX / LED GKF-150 DMX Kaleidoscope Effect you can find an XLR-
jack (DMX Out) and an XLR-plug (DMX In), which can be used for connecting several devices.
Choose the device which is to control the effects. This device then works as master-device and controls all
other slave-devices, which are to be connected to the master-device via a balanced microphone lead.
Connect the DMX OUT-jack with the DMX IN-plug of the next device.
Set the desired Master-mode for the master-device. Set the respective Slave-mode for all slave-devices.
Please refer to the instructions under Control Board.

Control Board

The Control Board offers several features: you can e. g. easily set the starting address or choose a desired
program.
Enter the menu by pressing the Mode-button. You can change the selection by pressing Up or Down. You
can leave every mode by pressing the Menu-button. The functions provided are described in the following
sections.
After you connected the effect to the mains, the display shortly indicates "rSt" followed by:

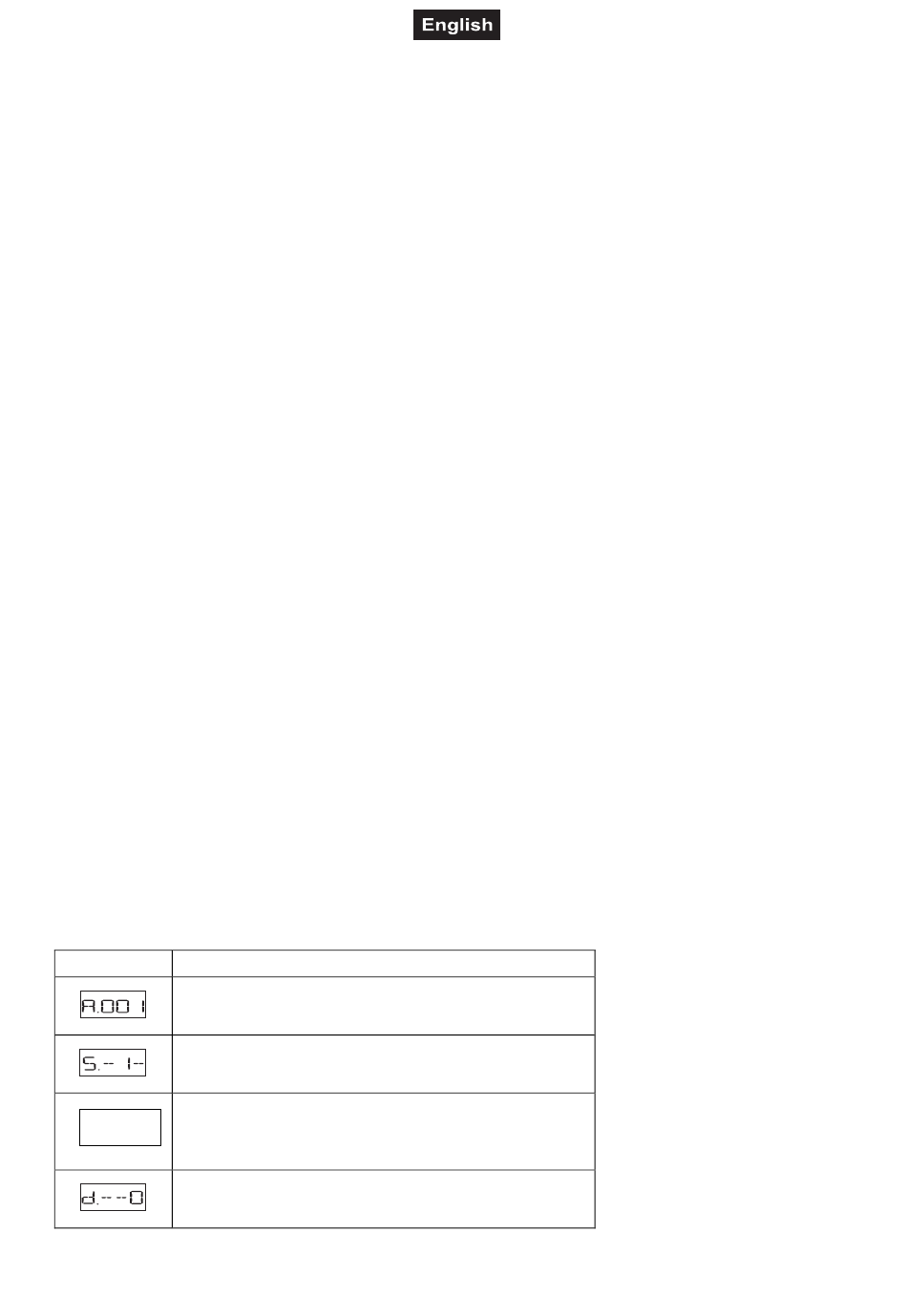

Main menu Function
DMX address setting
With this function, you can adjust the desired DMX
512 address via the Control Board.
Slave setting
With this function, you can define the device as slave
(up to 4 slaves).
Master Mode setting
n-1-: Master-Mode, sound-controlled mode
n n n n - - - - 1 1 1 1 - - - -
n-2-: Master-Mode, automatic program mode,
n-3-: Blackout
Display shut off
d--0: Display steady on
d--1: Display switches off after 5 seconds
