4.4 Content of delivery

Machine stand
Extension table assembly
Belt guards
Horizontal fence
Back stop
Mitre gauge assembly
1 sanding belt
Operating tools
Assembly kit
Operating manual
Spare parts list.
5. Transport and start up

5.1 Transport and installation

For transport use a forklift or hand
trolley. Make sure the machine does
not tip or fall off during transport.
The machine is designed to operate in
closed rooms and must be placed
stable on firm and levelled ground.
The machine can be bolted down if
required.
For packing reasons the machine is
not completely assembled.
5.2 Assembly
If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with
a mild solvent.
Attach the four rubber pads (A, Fig. 1)
to the bottoms of the side panels with
4 screws, 4 flat washers and 4 hex
nuts.

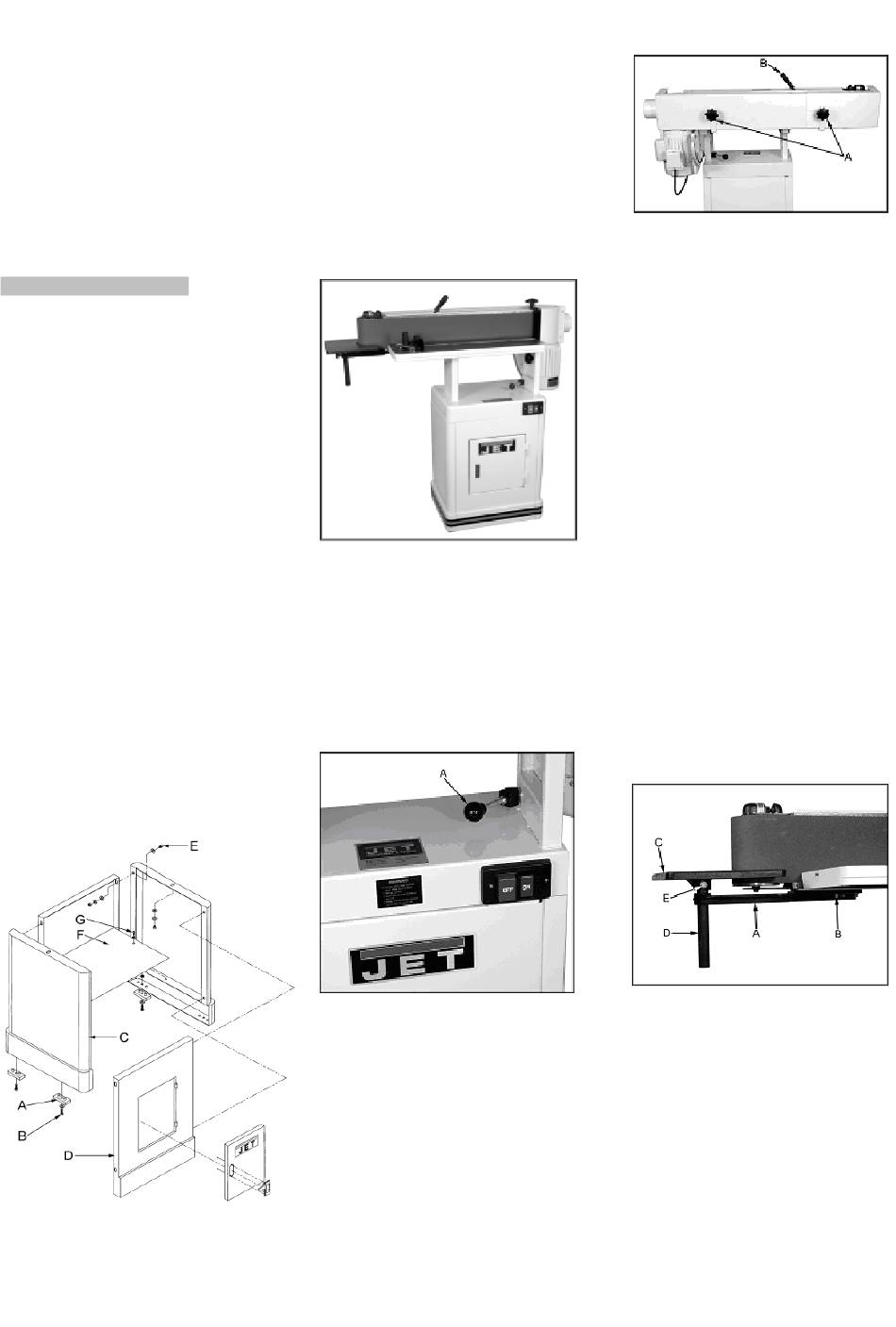

Fig 1
Attach the side panels (C, Fig. 1) to
the front panel (D, Fig. 1) with 4 hex
cap bolts, 8 flat washers, 4 lock
washer, and 4 hex nuts (E, Fig. 1).
Mount the shelf (F, Fig 1) to the inside
of the stand with 2 pan head screws
M5 (G, Fig 1) and 2 lock washers.
Finish stand assembly by attaching
rear panel to side panels. Make sure
stand is sitting evenly on a level
surface before tightening hardware.
Fig 2
WARNING Main unit is heavy! Use
great care and adequate resources
when lifting the unit up onto the stand
(Fig 2).
Through the door in the cabinet attach
main unit to stand with two hex cap
bolts and two flat washers.
Fig 3
Unlock the platen assembly
(A, Fig. 3), tilt sanding unit to the
vertical position, and lock handle.
5
Fig 4
Remove the belt guards by
unscrewing two lock knobs (A, Fig. 4).
Take out sanding belt and fence
packed behind the belt guard. Move
handle (B, Fig. 4) to the no belt-
tension position.
Place belt on both rollers so that the
edge of the belt is even with the edge
of the rollers.
Observe direction arrow on inside of
sanding belt. Make sure that direction
arrow on belt matches direction
indicator on the belt cover.
Tension the belt if in place.
Rotate the belt by hand in the
direction indicated by the arrow on the
belt guard (If belt tracking needs
adjustment see "Belt Tracking
Adjustment" chapter 8.1)
Attach the extension bracket (A, Fig.
5) using 4 hex cap bolts, 4 lock
washers and 4 flat washers (The
hardware can be found in the bag with
the 3mm hex wrench).
Fig 5
Fasten the support rod (D, Fig. 5) to
the extension table (C, Fig. 5) by
tightening the hex cap screw (E, Fig.
5) against the flat on the support rod.
Tighten the jam nut.
Raise table to a good height and
tighten two set screws on the bracket
Mount the belt guard!
