2.6

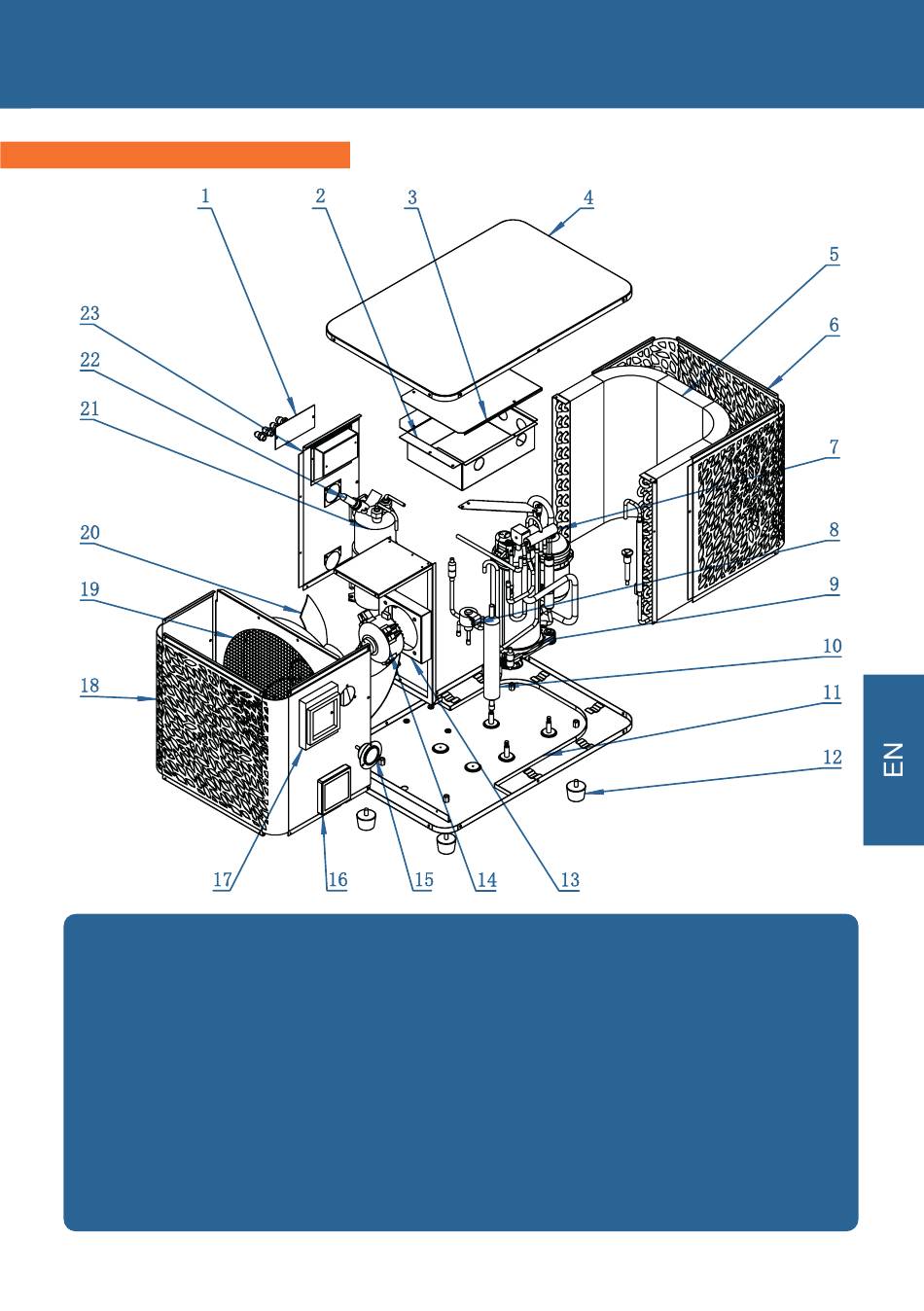

Exploded view

1. Terminal block
2. Electrical box
3. Electrical box cover
4. Top cover
5. Evaporator
6. Back panel
7. 4-way valve
8. Electrical expansive valve
9. Compressor
10. EVI tank
11. Base plate
12. Rubber feet
2. DESCRIPTION
13. Fan motor support
14. Fan motor
15. Manometer
16. Control panel
17. Control panel cover
18. Front panel
19. Wind deflector
20. Fan blade
21. Titanium heat exchanger
22. Water flow switch
23. Left side panel
EN | 9
