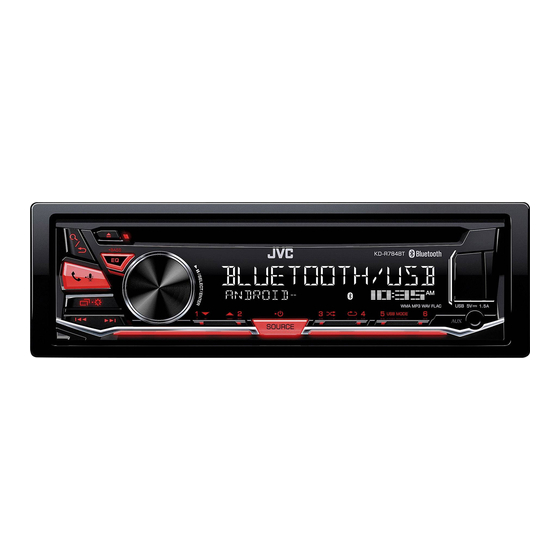

KD-R981BT / KD-R889BT / KD-R881BT /
KD-R784BT / KD-R782BT
CD RECEIVER
INSTRUCTION MANUAL
RÉCEPTEUR CD
MANUEL D'INSTRUCTIONS
CD-RECEIVER
BEDIENUNGSANLEITUNG
CD-PECИBEP
ИHCTPУKЦИЯ ПO ЭKCПЛУATAЦИИ
B5A-1353-00 [E]

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für JVC KD-R889BT

  • Seite 1 ENGLISH FRANÇAIS DEUTSCH РУCCKИЙ KD-R981BT / KD-R889BT / KD-R881BT / KD-R784BT / KD-R782BT CD RECEIVER INSTRUCTION MANUAL RÉCEPTEUR CD MANUEL D’INSTRUCTIONS CD-RECEIVER BEDIENUNGSANLEITUNG CD-PECИBEP ИHCTPУKЦИЯ ПO ЭKCПЛУATAЦИИ B5A-1353-00 [E]...
  • Seite 2 упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в l’élimination des déchets aideront à conserver les ressources et à nous préserver des leurs effets nocifs sur частности, гарантийного обслуживания JVC, которое он может получить в соответствии с законом о notre santé et sur l’environnement.
  • Seite 3 For Israel The marking of products using lasers The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.
  • Seite 4 Deste modo, a JVCKENWOOD declara que o equipamento de EU Representative: radio « KD-R981BT/KD-R889BT/KD-R881BT/KD-R784BT/ rádio “KD-R981BT/KD-R889BT/KD-R881BT/KD-R784BT/ JVC Technical Services Europe GmbH KD-R782BT » est conforme à la directive 2014/53/UE. KD-R782BT” está em conformidade com a Diretiva Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany L’intégralité...
  • Seite 5 Herved erklærer JVCKENWOOD, at radioudstyret Šiuo JVCKENWOOD pažymi, kad radijo įranga С настоящото JVCKENWOOD декларира, че radioutrustningen “KD-R981BT/KD-R889BT/ “KD-R981BT/KD-R889BT/KD-R881BT/KD-R784BT/ „KD-R981BT/KD-R889BT/KD-R881BT/KD-R784BT/ радиооборудването на “KD-R981BT/KD-R889BT/ KD-R881BT/KD-R784BT/KD-R782BT” är i enlighet KD-R782BT” er i overensstemmelse med Direktiv KD-R782BT“ atitinka 2014/53/EB direktyvos KD-R881BT/KD-R784BT/KD-R782BT” е в med direktiv 2014/53/EU.
  • Seite 6: Inhaltsverzeichnis

    SPECIFICATIONS How to read this manual • Operations are explained mainly using buttons on the faceplate of KD-R981BT and KD-R889BT. • English indications are used for the purpose of explanation. You can select the display language from the menu. ( 5) •...
  • Seite 7: Basics

    BASICS Faceplate Attach KD-R981BT/KD-R784BT/KD-R782BT: Volume knob Loading slot Display window Detach Detach button KD-R889BT/KD-R881BT: Loading slot Display window How to reset Detach button On the faceplate KD-R981BT/KD-R784BT/KD-R782BT: KD-R889BT/KD-R881BT: Turn on the power Press Press • Press and hold to turn off the power.
  • Seite 8: Getting Started

    To adjust the clock Turn the volume knob to select [CLOCK ADJUST], then press the knob. Turn the volume knob to make the settings, then press the knob. KD-R889BT/KD-R881BT: Hour  Minute Turn the volume knob to select [CLOCK FORMAT], then press the knob.
  • Seite 9: Set The Basic Settings

    CLOCK DISPLAY ON: The clock time is shown on the display even when the unit is turned press the knob. off. ; OFF: Cancels. Press to select an item KD-R889BT/KD-R881BT: ENGLISH (see the following table), then press Select the display language for menu and music information if applicable. РУССКИЙ...
  • Seite 10: Radio

    Search for a station Select a stored station Press (for KD-R981BT/KD-R784BT/KD-R782BT) or (for Press one of the number buttons (1 to 6). KD-R889BT/KD-R881BT) repeatedly to select FM or AM. (or) Press to search for a station automatically. Press (or) KD-R981BT/KD-R784BT/KD-R782BT: Turn the volume knob to select Press and hold until “M”...
  • Seite 11 FM stations, but sound quality will not be Press to select an item KD-R889BT/KD-R881BT: degraded and the stereo effect will remain. (see the following table), then press MONO SET ON: Improves the FM reception, but the stereo effect will be lost. ;...
  • Seite 12: Cd/Usb/Ipod/Android

    When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. For more information, visit <http://www.jvc.net/cs/car/>.
  • Seite 13: Audio Mode

    While in ANDROID source, press repeatedly. Control Android device from this unit via JVC MUSIC AUTO MODE: PLAY application installed in the Android device. AUDIO MODE: Control Android device using the Android device...
  • Seite 14 Settings to use JVC Remote application Press (for KD-R981BT/KD-R889BT/KD-R881BT)) Press to select a folder/list, then press JVC Remote application is designed to control the JVC car receiver’s operations Press to select a file, then press from the iPhone/iPod (via USB input terminal). Quick search...
  • Seite 15: Bluetooth

    Ensure that the passkeys appear on the unit and Bluetooth device are the same. Press the volume knob (for KD-R981BT/KD-R784BT/KD-R782BT) or (for KD-R889BT/KD-R881BT) to confirm the passkey. Rear panel Operate the Bluetooth device to confirm the passkey. (B) “[Device Name]”...
  • Seite 16 – [AUTO PAIRING] is set to [ON]. ( 16) KD-R889BT/KD-R881BT: – JVC MUSIC PLAY application is installed on the The symbolic button will blink in the color you have selected in [RING COLOR]. ( 14) Android device ( 8) and [AUTO MODE] is selected KD-R784BT/KD-R782BT: ( 9).
  • Seite 17 The following operations may differ or not available depending on the connected phone. Improve the voice quality While talking on the phone..On the faceplate Press and hold KD-R981BT/KD-R784BT/KD-R782BT KD-R889BT/KD-R881BT KD-R981BT/KD-R784BT/KD-R782BT: Turn the volume knob to select an item First incoming call... (see the following table), then press the Answer a call Press or the volume knob.
  • Seite 18: Auto Answer

    (Applicable only if the phone supports PBAP.) OFF: Cancels. 1 Press the volume knob (for KD-R981BT/KD-R784BT/KD-R782BT) or (for KD-R889BT/KD-R881BT) to select a name or a phone number. RING COLOR KD-R981BT/KD-R889BT/KD-R881BT: • “<” indicates call received, “>“ indicates call made, “M” indicates call missed.
  • Seite 19 Make a call from memory Press to enter Bluetooth mode. Press one of the number buttons (1 to 6). Press the volume knob (for KD-R981BT/KD-R784BT/KD-R782BT) or (for KD-R889BT/KD-R881BT) to call. “NO PRESET” appears if there is no contact stored. ENGLISH...
  • Seite 20 1 Turn the volume knob (for KD-R981BT/KD-R784BT/KD-R782BT) or press (0000) same passkey appears on the unit and Bluetooth device, then (for KD-R889BT/KD-R881BT) to select a number. operate the Bluetooth device to confirm the passkey. 2 Press to move the entry position.
  • Seite 21 Press (for KD-R981BT/KD-R784BT/KD-R782BT) or (for KD-R889BT/ KD-R881BT) repeatedly to select BT AUDIO. • KD-R889BT/KD-R881BT: Pressing enters BT AUDIO directly. Operate the Bluetooth audio player to start playback. On the faceplate Playback/pause KD-R981BT/KD-R784BT/KD-R782BT: Press the volume knob.
  • Seite 22 IOS CONNECTED: You are able to use the application using the iPhone/iPod Preparation: connected via Bluetooth or USB input terminal. Install the latest version of JVC Remote application on your device before IOS NOT CONNECTED: No IOS device is connected to use the application. connecting. For more information, visit <http://www.jvc.net/cs/car/>.
  • Seite 23: Audio Settings

    KD-R981BT/KD-R784BT/KD-R782BT: Turn the volume knob to select an item (see the following table), then press the knob. Press to select an item KD-R889BT/KD-R881BT: (see the following table), then press KD-R889BT/KD-R881BT: Repeat step until the desired item is selected/activated or follow the instructions stated on the selected item.
  • Seite 24 AUDIO SETTINGS BALANCE * PRO EQ Adjust your own sound settings. POSITION L15 to POSITION R15 (POSITION 00): Adjusts the left and • The settings are stored to [USER]. right speaker output balance. • The settings made may affect the current settings of [EASY EQ]. VOLUME ADJUST LEVEL –15 to LEVEL +06 (LEVEL 00): Preset the initial volume level 62.5HZ...
  • Seite 25 AUDIO SETTINGS KD-R889BT/KD-R881BT/KD-R782BT: SOUND EFFECT Audio signal through lineout terminal Setting on SPACE ENHANCE (Not applicable for TUNER source.) [SPK/PRE OUT] SMALL/MEDIUM/LARGE: Virtually enhances the sound space. ; FRONT REAR/SW OFF: Cancels. REAR/REAR Front speakers output Rear speakers output SND RESPONSE LEVEL1/LEVEL2/LEVEL3: Virtually makes the sound more realistic. ;...
  • Seite 26 AUDIO SETTINGS 2-way crossover setting items Crossover settings Below are the available setting items for 2-way crossover and 3-way SPEAKER SIZE crossover. FRONT SIZE 8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/ Caution 5×7/6×8/6×9/7×10 Select a crossover type according to how the speakers are connected. TWEETER SMALL/MIDDLE/LARGE/NONE (not connected) ( 32) REAR * 8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/5×7/6×8/6×9/...
  • Seite 27 AUDIO SETTINGS 3-way crossover setting items Digital Time Alignment settings Digital Time Alignment sets the delay time of the speaker output to SPEAKER SIZE create a more suitable environment for your vehicle. TWEETER SMALL/MIDDLE/LARGE • For more information, 24, Determining the value for [DISTANCE] and [GAIN] MID RANGE 8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/5×7/6×8/6×9 of [DTA SETTINGS].
  • Seite 28: Display Settings

    4 Set the [DISTANCE] calculated in step individual speakers. 5 Adjust [GAIN] for individual speakers. Example: When [FRONT ALL] is selected as the listening position KD-R889BT/KD-R881BT: Symbolic button Before making an adjustment, select the speaker: When 2-way crossover is selected: FRONT LEFT/FRONT RIGHT/REAR LEFT/REAR RIGHT/SUBWOOFER –...
  • Seite 29 DISPLAY SETTINGS Default: XX COLOR (for KD-R981BT/KD-R889BT/KD-R881BT) DISPLAY For KD-R981BT: DIMMER Dim the illumination. PRESET Select illumination colors for button and display separately. OFF: Dimmer is turned off. Brightness changes to [DAY] setting. Default color: ON: Dimmer is turned on. Brightness changes to [NIGHT] setting.
  • Seite 30: References

    REFERENCES DISPLAY SETTINGS Maintenance For KD-R889BT/KD-R881BT (symbolic button only): Cleaning the unit PRESET Select an illumination color for the symbolic button. Wipe off dirt on the faceplate with a dry silicone or soft cloth. Default color: [COLOR FLOW01] • COLOR 01 to COLOR 49 Cleaning the connector •...
  • Seite 31: About Bluetooth

    • It is not possible to browse video files on the “Videos” menu in [HEAD MODE]. For USB mass storage class device: • The song order displayed on the selection menu of this unit may differ from that of the KD-R981BT/KD-R889BT/KD-R881BT: MP3 (.mp3), WMA (.wma), AAC (.aac), WAV (.wav), iPod/iPhone. FLAC (.flac) •...
  • Seite 32: Display Information

    * KD-R981BT: The illumination colors of the buttons and display change and synchronises with the music. “READING” keeps flashing. • Do not use too many hierarchical levels KD-R889BT/KD-R881BT: The illumination color of the symbolic button changes and synchronises with and folders.
  • Seite 33 Remedy “UNSUPPORTED DEVICE” • Check whether the connected device is compatible with Cannot playback at • Make sure JVC MUSIC PLAY APP is installed on the appears. this unit and ensure the file systems are in supported [AUTO MODE]. Android device. ( 8) formats.
  • Seite 34: Installation/Connection

    3 Install the unit to your car. See Installing the unit (in-dash mounting). ( 31) 4 Connect the terminal of the car battery. 5 Press (for KD-R981BT/KD-R784BT/KD-R782BT) or (for KD-R889BT/KD-R881BT) to turn on the power. 6 Detach the faceplate and reset the unit. ( 3) ENGLISH...
  • Seite 35: Installing The Unit (In-Dash Mounting)

    INSTALLATION/CONNECTION Installing the unit (in-dash mounting) Part list for installation (A) Faceplate (B) Trim plate Do the required wiring. ( 32) (C) Mounting sleeve (D) Wiring harness Hook on the top side Orientate the trim plate Dashboard of as illustrated before your car fitting.
  • Seite 36: Wiring Connection

    INSTALLATION/CONNECTION Wiring connection When connecting to an external amplifier, connect its ground wire to the Output car’s chassis to avoid damaging the unit. terminals ( 31) Microphone input jack ( 11) Antenna terminal Fuse (10 A) Connecting the ISO connectors on some Yellow (Battery wire) Light blue/yellow VW/Audi or Opel (Vauxhall) automobiles...
  • Seite 37: Specifications

    SPECIFICATIONS Subject to change without notice. Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step) USB Standard USB 1.1, USB 2.0 (Full speed) Usable Sensitivity (S/N = 26 dB) 0.71 μV/75 Ω (8.2 dBf) Compatible Devices Mass storage class Quieting Sensitivity 2.0 μV/75 Ω File System FAT12/16/32 (DIN S/N = 46 dB) Maximum Supply Current DC 5 V   1.5 A Frequency Response (±3 dB) 30 Hz —...
  • Seite 38 SPECIFICATIONS Maximum Output Power 50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω) Full Bandwidth Power 22 W × 4 (at less than 1 % THD) Speaker Impedance 4 Ω — 8 Ω Preout Level/Load (CD/USB) 4 000 mV/10 kΩ load Preout Impedance ≤ 600 Ω Operating Voltage 14.4 V (10.5 V — 16 V allowable) Maximum Current Consumption 10 A Operating Temperature Range –10°C —...
  • Seite 39 ENGLISH...
  • Seite 40: Avant L'utilisation

    Comment lire ce manuel • KD-R981BT KD-R889BT Les opérations sont expliquées principalement en utilisant les touches de la façade du • Les indications en anglais sont utilisées dans un but explicatif. Vous pouvez choisir la langue d’affichage à partir du menu.
  • Seite 41: Fonctionnement De Base

    FONCTIONNEMENT DE BASE Façade Attachez KD-R981BT/KD-R784BT/KD-R782BT: Bouton de volume Fente d’insertion Fenêtre d’affichage Détachez Touche de détachement KD-R889BT/KD-R881BT: Fente d’insertion Fenêtre d’affichage Comment réinitialiser Touche de détachement Sur la façade Pour KD-R981BT/KD-R784BT/KD-R782BT: KD-R889BT/KD-R881BT: Mettez l’appareil sous Appuyez sur Appuyez sur tension •...
  • Seite 42: Prise En Main

    [CLOCK ADJUST] Tournez le bouton de volume pour choisir , puis appuyez sur le bouton. KD-R889BT/KD-R881BT: Tournez le bouton de volume pour faire les réglages, puis appuyez sur le bouton. Heure  Minute Tournez le bouton de volume pour choisir [CLOCK FORMAT] , puis appuyez sur le bouton.
  • Seite 43: Faites Les Réglages De Base

    CLOCK DISPLAY : L’horloge apparaît sur l’affichage même quand l’appareil est hors tension. ; tableau suivant), puis appuyez sur le : Annulation. bouton. KD-R889BT KD-R881BT ENGLISH Appuyez sur pour Sélectionnez la langue d’affichage pour le menu et l’information sur le morceau si elle est sélectionner un élément (voir le...
  • Seite 44: Radio

    à (ou) KD-R981BT KD-R784BT KD-R782BT KD-R889BT/KD-R881BT: Maintenez enfoncé le bouton de volume jusqu’à ce que “PRESET MODE” clignote. Tournez le bouton de volume pour choisir un numéro de préréglage, puis appuyez sur le bouton. Le numéro de préréglage clignote et “MEMORY” apparaît.
  • Seite 45 : Il y a des interférences des stations FM tableau suivant , puis appuyez sur le adjacentes, mais la qualité du son n’ e st pas dégradée et l’ e ffet stéréo est conservé. bouton. KD-R889BT KD-R881BT Appuyez sur pour MONO SET : Améliore la réception FM mais l’...
  • Seite 46: Aux

    Ne laissez pas le câble à l’intérieur de la voiture quand il n’ e st pas utilisé. Lors de la connexion d’un périphérique Android, “Press [VIEW] to install JVC MUSIC PLAY APP” apparaît. Suivez les instructions pour installer l’application. Vous pouvez aussi intaller la dernière version de l’application JVC MUSIC PLAY sur votre périphérique Android avant la connexion.
  • Seite 47 Quand la source est ANDROID, appuyez répétitivement sur AUTO MODE Commandez le périphérique Android à partir de cet appareil via l’application JVC MUSIC PLAY installée sur le périphérique Android. Sources sélectionnables: AUDIO MODE : Commandez le périphérique Android en utilisant le...
  • Seite 48 (via la prise d’entrée USB). Appuyez sur pour choisir un fichier, puis appuyez Préparation: Installez la dernière version de l’application JVC Remote sur votre périphérique avant la connexion. Pour plus d’informations, consultez <http://www.jvc.net/cs/car/>. Recherche rapide (applicable uniquement pour la source CD, USB et ANDROID) Vous pouvez réaliser les réglages de la même façon que la connexion via Bluetooth.
  • Seite 49: Bluetooth

    Profiles Bluetooth pris en charge Appuyez sur (pour KD-R981BT KD-R784BT KD-R782BT ) ou (pour KD-R889BT – Hands-Free Profile — Profile mains libres (HFP) R881BT ) pour mettre l’appareil sous tension. – Advanced Audio Distribution Profile — Profile de Cherchez et sélectionnez “KD-R9 BT”/“KD-R8...
  • Seite 50: Réception D'un Appel

    ( 16) est réglé sur La touche symbolique clignote dans la couleur que vous avez sélectionnée dans [RING COLOR] ( 14) – L’application JVC MUSIC PLAY est installée sur le KD-R784BT KD-R782BT périphérique Android ( 8) [AUTO MODE] Les touches clignotent de la façon que vous avez sélectionnée dans...
  • Seite 51 Quand vous parlez au téléphone..Sur la façade Maintenez enfoncée Pour KD-R981BT KD-R784BT KD-R782BT KD-R981BT/KD-R784BT/KD-R782BT KD-R889BT/KD-R881BT Tournez le bouton de volume pour Premier appel entrant... sélectionner un élément voir le tableau suivant , puis appuyez sur le bouton. Répondre à un appel...
  • Seite 52: Faire Un Appel

    , puis appuyez sur le “(Nom du premier périphérique)” apparaît. bouton. • Si deux téléphones Bluetooth sont connectés, appuyez de nouveau sur pour connecter sur KD-R889BT KD-R881BT un autre téléphone. Appuyez sur pour sélectionner un élément “(Nom du deuxième périphérique)” apparaît.
  • Seite 53 KD-R981BT KD-R784BT KD-R782BT Appuyez sur le bouton de volume pour appeler. Appuyez sur pour entrer en mode Bluetooth. KD-R889BT KD-R881BT Tournez le bouton de volume pour choisir [RECENT CALL] [PHONEBOOK] Appuyez sur pour sélectionner un numéro (0 à 9) ou un caractère [DIAL NUMBER] , puis appuyez sur le bouton.
  • Seite 54 : Annulation. sélectionner un élément voir le tableau INITIALIZE : Initialise tous les réglages Bluetooth (y compris le pairage mémorisé, le suivant , puis appuyez sur le bouton. KD-R889BT KD-R881BT répertoire téléphonique, etc.). ; : Annulation. Appuyez sur pour sélectionner un élément voir le tableau suivant...
  • Seite 55 “PBAP OK”* : Compatible Compatible avec le Profile mains libres (HFP) KD-R889BT/KD-R881BT: Compatible avec le Profile de distribution audio avancé (A2DP) Compatible avec le Profile d’accès au répertoire d’adresses (PBAP) Après 30 secondes, “PAIRING DELETED” apparaît pour indiquer que le pairage a été...
  • Seite 56 Préparation: IOS NOT CONNECTED : Aucun périphérique IOS n’ e st connecté pour utiliser l’application. Installez la dernière version de l’application JVC Remote sur votre périphérique avant la ANDROID CONNECTED : Vous pouvez utiliser l’application à l’aide du smartphone Android connexion.
  • Seite 57: Réglages Audio

    KD-R981BT KD-R784BT KD-R782BT : Tournez le bouton de volume pour sélectionner un élément voir le tableau suivant , puis appuyez sur le bouton. KD-R889BT KD-R881BT Appuyez sur pour sélectionner un élément voir le tableau suivant , puis appuyez sur KD-R889BT/KD-R881BT: Répétez l’étape...
  • Seite 58 RÉGLAGES AUDIO BALANCE * PRO EQ Ajustez vos propres ajustements sonores. POSITION L15 POSITION R15 POSITION 00  à   ( ): Règle la balance de sortie • [USER] Les réglages sont mémorisés dans des enceintes gauche et droite. • [EASY EQ] Les réglages réalisés peuvent affecter les réglages actuels de VOLUME ADJUST LEVEL –15 LEVEL +06...
  • Seite 59 RÉGLAGES AUDIO KD-R889BT/KD-R881BT/KD-R782BT: SOUND EFFECT Signal audio via la prise de sortie de ligne Réglage sur SPACE ENHANCE (Ne s’applique pas à la source TUNER.) [SPK/PRE OUT] SMALL/MEDIUM/LARGE : Améliore virtuellement l’ e space sonore. ; FRONT REAR/SW : Annulation. REAR/REAR Sortie des enceintes avant Sortie des enceintes arrière...
  • Seite 60 RÉGLAGES AUDIO Options de réglage de la transition 2 voies Réglages de transition Voici les options de réglage disponibles pour la transition 2 voies et la transition SPEAKER SIZE 3 voies. FRONT SIZE 8CM/10CM/12CM/13CM/16CM/17CM/18CM 4×6 Précautions 5×7 6×8 6×9 7×10 Sélectionnez un type de transition en fonction de la connexion de vos enceintes.
  • Seite 61 RÉGLAGES AUDIO Options de réglage de la transition 3 voies Réglages de l’alignement temporel numérique L’alignement temporel numérique règle la temporisation de la sortie d’enceinte pour SPEAKER SIZE créer un environnement qui convient mieux à votre véhicule. TWEETER SMALL/MIDDLE/LARGE • Pour plus d’informations, 24, Déterminez la valeur pour [DISTANCE] et [GAIN] de [DTA SETTINGS]...
  • Seite 62: Réglages D'affichage

    [FRONT ALL] Exemple: Quand est sélectionné comme position d’ é coute Avant de réaliser un ajustement, choisissez l’ e nceinte: Quand la transition 2 voies est sélectionnée: KD-R889BT/KD-R881BT: FRONT LEFT FRONT RIGHT REAR LEFT REAR RIGHT SUBWOOFER Touche symbolique...
  • Seite 63 RÉGLAGES D’AFFICHAGE Défaut: COLOR KD-R981BT KD-R889BT KD-R881BT (pour DISPLAY KD-R981BT Pour DIMMER Assombrit l’ é clairage. PRESET Sélectionnez les couleurs d’ é clairage des touches et de l’affichage séparément. : Le gradateur est désactivé. La luminosité change sur le réglage [DAY] Couleur par défaut:...
  • Seite 64: Références

    à partir d’un dossier ou d’une liste. ; Pour: – Les dernières mise à jour du micrologiciel et la liste de compatibilité la plus récente : Annulation. – Application originale JVC – Autres informations récentes Consultez <http://www.jvc.net/cs/car/>.
  • Seite 65: À Propos De Bluetooth

    Fichier audio reproductible: Made for Pour les disques: – iPod touch (5th et 6th generation) KD-R981BT KD-R889BT KD-R881BT : MP3 (.mp3), WMA (.wma), AAC (.aac) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE KD-R784BT KD-R782BT MP3 (.mp3), WMA (.wma)
  • Seite 66: Guide De Dépannage

    * KD-R981BT : Les couleurs d’ é clairage des touches et de l’affichage changent et sont synchronisées avec la musique.   KD-R889BT KD-R881BT : La couleur de l’ é clairage de la touche symbolique change et est synchronisée avec la musique.
  • Seite 67 Lecture impossible en mode • Vérifiez si le périphérique connecté est compatible avec cet appareil et Assurez-vous que JVC MUSIC PLAY APP est installé sur le périphérique [AUTO MODE] ( 8) assurez-vous que le système de fichiers est dans un format compatible.
  • Seite 68: Installation/Raccordement

    Reportez-vous à Installation de l’appareil (montage encastré). ( 31) Connectez la borne de la batterie de la voiture. KD-R981BT KD-R784BT KD-R782BT Appuyez sur (pour ) ou (pour KD-R889BT KD-R881BT ) pour mettre l’appareil sous tension. ( 3) Détachez la façade et réinitialisez l’appareil. FRANÇAIS...
  • Seite 69 INSTALLATION/RACCORDEMENT Installation de l’appareil (montage encastré) Liste des pièces pour l’installation Façade Plaque d’assemblage Réalisez les connexions ( 32) nécessaires. Manchon de montage Faisceau de fils Crochet sur le côté supérieur Orientez la plaque de garniture Tableau de bord de votre de la façon illustrée avant la voiture fixation.
  • Seite 70 INSTALLATION/RACCORDEMENT Connexions Lors de la connexion à un amplificateur extérieur, connectez son fil de masse au châssis de la voiture Prises de sortie pour éviter d’ e ndommager l’appareil. ( 31) ( 11) Prise d’ e ntrée du microphone Borne de l’antenne Fusible (10 A) Connexion des connecteurs ISO sur certaines voitures VW/Audi ou Opel...
  • Seite 71: Spécifications

    SPÉCIFICATIONS Sujet à changement sans notification. Plage de fréquences 87,5 MHz — 108,0 MHz (pas de 50 kHz) Standard USB USB 1.1, USB 2.0 (Vitesse maximale) Sensibilité utilisable (S/B = 26 dB) 0,71 μV/75 Ω (8,2 dBf) Périphériques compatibles À mémoire de grande capacité Seuil de sensibilité (DIN S/N = 46 dB) 2,0 μV/75 Ω Système de fichiers FAT12/16/32 Réponse en fréquence (±3 dB)
  • Seite 72 SPÉCIFICATIONS Puissance de sortie maximum 50 W × 4 ou 50 W × 2 + 50 W × 1 (Caisson de grave = 4 Ω) Pleine Puissance de Largeur de Bande 22 W × 4 (avec moins de 1% DHT) Impédance d’ e nceinte 4 Ω — 8 Ω Niveau de préamplification/charge (CD/USB) 4 000 mV/10 kΩ en charge Impédance du préamplificateur ≤ 600 Ω...
  • Seite 74 TECHNISCHE DATEN Wie Sie diese Anleitung lesen • Die Bedienung wird im Wesentlichen anhand der Tasten auf der Frontblende des KD-R981BT KD-R889BT erläutert. • Englischsprachige Anzeigen werden zur Erklärung verwendet. Sie können die Anzeigesprache im Menü wählen. ( 5) • [XX] zeigt die gewählten Punkte an.
