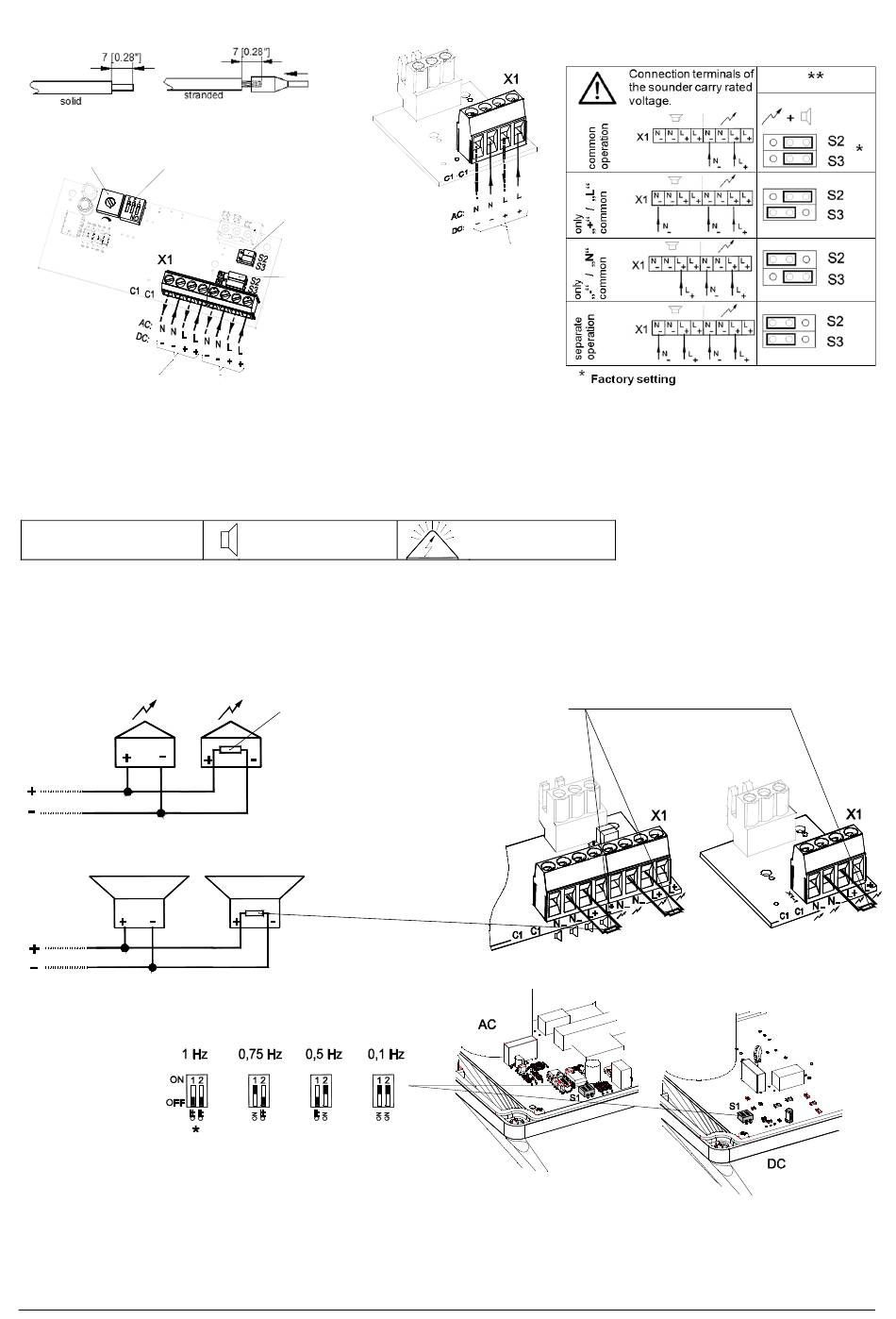

Electrical connection:

Connecting cables
Volume Control
S1,
Tone Selector Switch
Operation voltage for sounder
**:
Combined beacon-sounders (PY X-LA-15) can be operated commonly or separately. Adjust S2 and S3 as shown in the table.
Option –SSM (Soft-Start-Module) (24V DC only):
- Limiting of the switch-on current peak to:
PY X-L(A)-15 -SSM:
- Connection of the operating voltage to the equipment starts at >7V
- Resistance for the line monitoring mounted.
Operating voltage range: 19.2 – 28.8V DC
Connection of a resistor for line monitoring: (dc versions only)
Only in case of separate operation of beacon and sounder:
Flash Frequency adjustment:
S1:
(Beacon)
*
Factory setting
Note: Depending on the adjusted flash frequency the appearance of the first flash after switching on may take up to 10 s.
085 501 995a
(PCB in base part)
DC versions only
AC versions only
PY X-LA-15
Operation voltage for beacon
: max. 4.25 A
Resistor for Line Monitoring (1K Ohm)
at the terminal for operating voltage.
Position of the resistor with parallel connection of
multiple beacons in the last unit
Remove unneeded resistors.
PY X-LA-15
Connection for
operation voltage
PY X-L-15
: max. 4.25 A
PY X-LA-15
7
PY X-L-15
PCB
in lens
30396-004-1a
