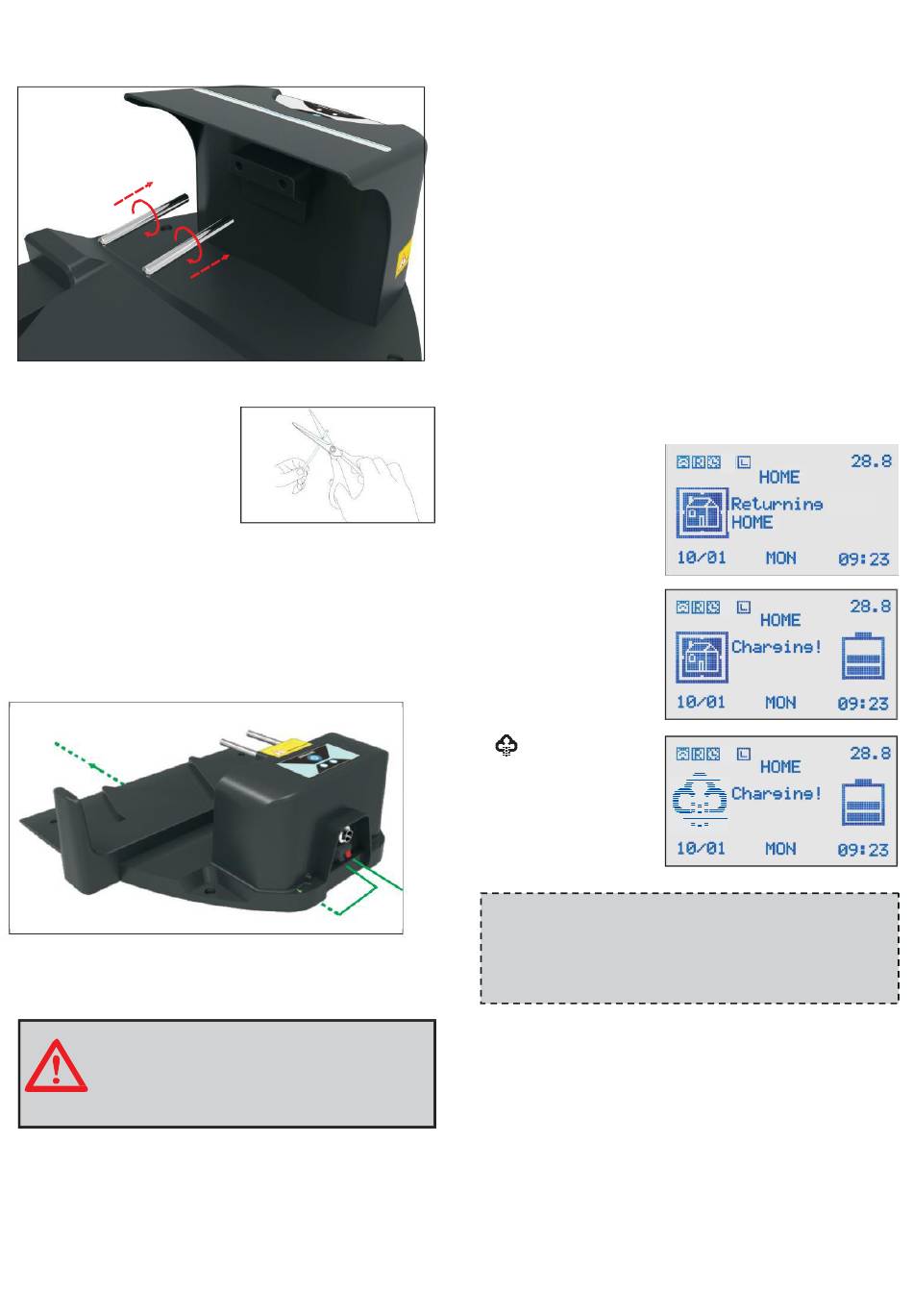

Charging head installation.
3.5
Please fasten the charging heads on the charging
station in clockwise.
Virtual wire and charging station connecting.
3.6
1. Cut the two ends of virtual
wire to a length of 1cm that's
convenient for reaching
the virtual wire terminal on
charging station.
Strip the two ends of wire.
2. Connect the cut two ends of virtual wire to virtual wire
terminal located on charging station.
Pls take care of positive and negative terminal.
3.The virtual wire light turns colorless while virtual wire
connected well with charging station.
A failed connecting between virtual wire and charging
station cause a blinking red light and send out a
beeping from charging station.
WARNING
Redundant virtual wire at back of charging station
must be cut off.
3. INSTALLATION
Power connection.
3.7
1. Connect the charger with power supply.
2.Charging light on station in green: Non-recharging.
charging light on station in red: recharging.
Recharge.
3.8
1. Recharge Voltage: 24V
Recharge current: 4A
2. When the display
shows picture to the
right, the robot is
going to find virtual
wire and follow it back
to station for recharge.
3. The display is showing
picture to the right,
it's in recharging.
4.
The display is showing
picture to the right,
it's in recharging.
rain sensors are
activated
IMPORTANT INFORMATION
All the buttons (except the emergency switch and
power button ) are locked which can not be used
during the robot is in recharging.
5. The mower reverses several centimeters and stop
there with entering standby mode after fully
recharged.
