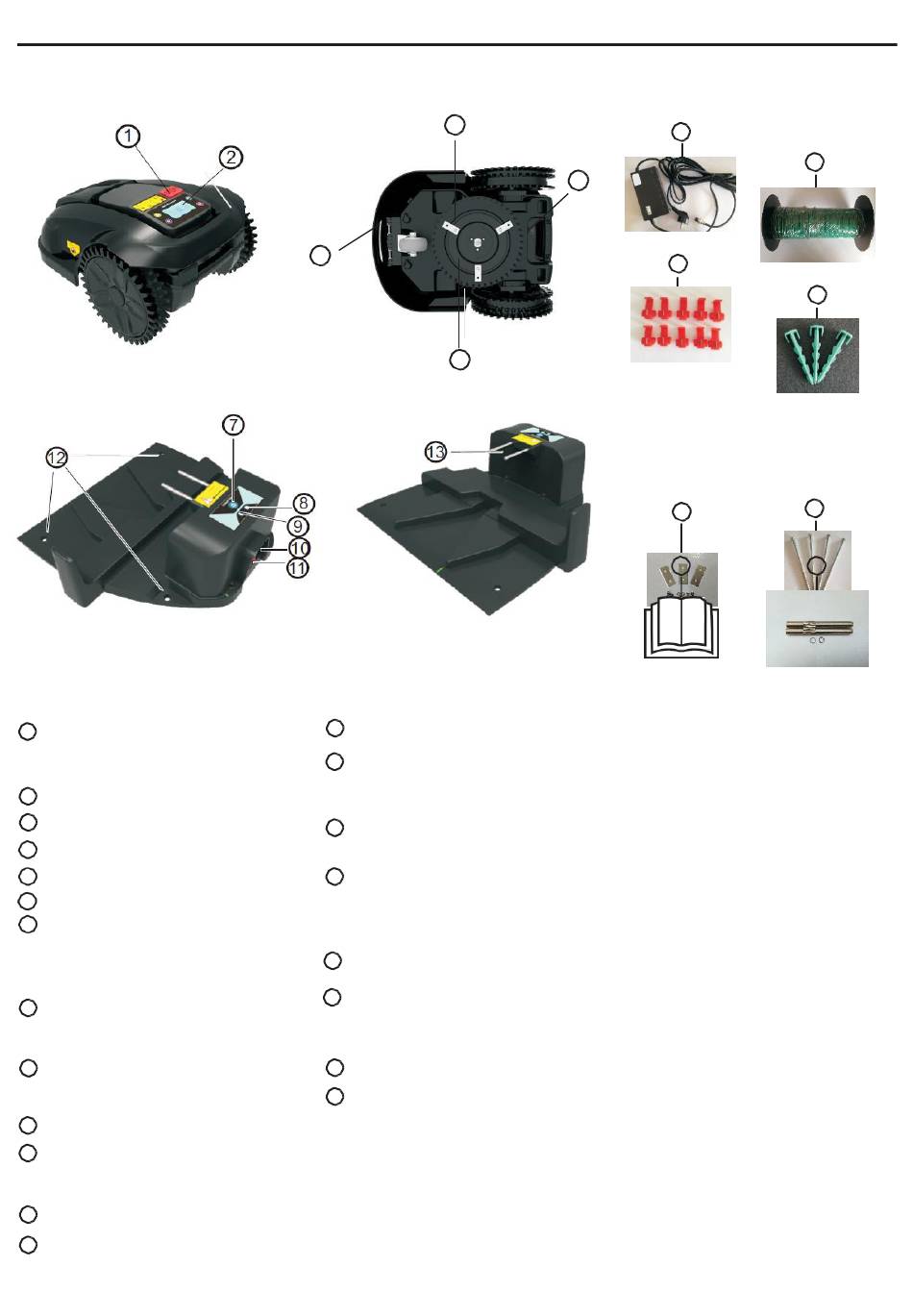

PRESENTATION

2.
This chapter contains information you should be aware of before placing the installation.
1
12
Emergency button
1
Rotate it to turn on the mower.
Press it to turn off the mower.
LCD display
2
Power button
3
Blade shield
4
Charging sheet
5
Blade
6
Home button
7
Press it when the mower is on,
it goes back to charging station
automatically.
Charging light
8
Red: charging
Green: full charged / idle.
Virtual wire light
9
Colorless: in good connecting
Red: Broken wire/ idle
Power terminal
10
Virtual wire terminal
11
red terminal
black terminal
Hole for stake
12
13
Charging head
2. PRESENTATION
2
5
7
8
9
10
11
Charger
14
Virtual wire (100m):
15
Used to mark mowing area and
create a virtual wall for the mower.
Virtual wire connectors (10pcs):
16
Used to connect virtual wire.
17 Pegs (100pcs):
Used to fix the virtual wire to the
ground around the lawn perimeter
and around obstacles.
Blades for replacement (3pcs)
18
Stakes (4pcs):
19
Used to fix the charging station to
the ground.
English user manual
20
Charging head
21
6
3
4
13
- 3 -
14
15
16
17
19
18
20 21

Consumable parts:

1. Blades
2. Virtual wire
3. Virtual wire connectors
4. Pegs
5. Stakes
6. Rear running wheels
7. Front wheels
