- Usethe virtual wire to isolate areas inside the working
area by creating islands around obstacles that can
not withstand a collision, for example, flower beds and
fountains. Run the wire out to the area, route it
around the area to be isolated and then back along
the same route. If pegs are used, the wire should be
laid under the same peg on the return route. When
the virtual wire to and from the island with a maximum
distance of 1cm, the mower can drive over the wire.
- If protected obstacles are grouped closely together
isolate them individually. Continuous virtual island
if obstacles are close to edge, leave them out of the
mowing area.
Max: 1cm
Min: 2m
40cm
Virtual wire

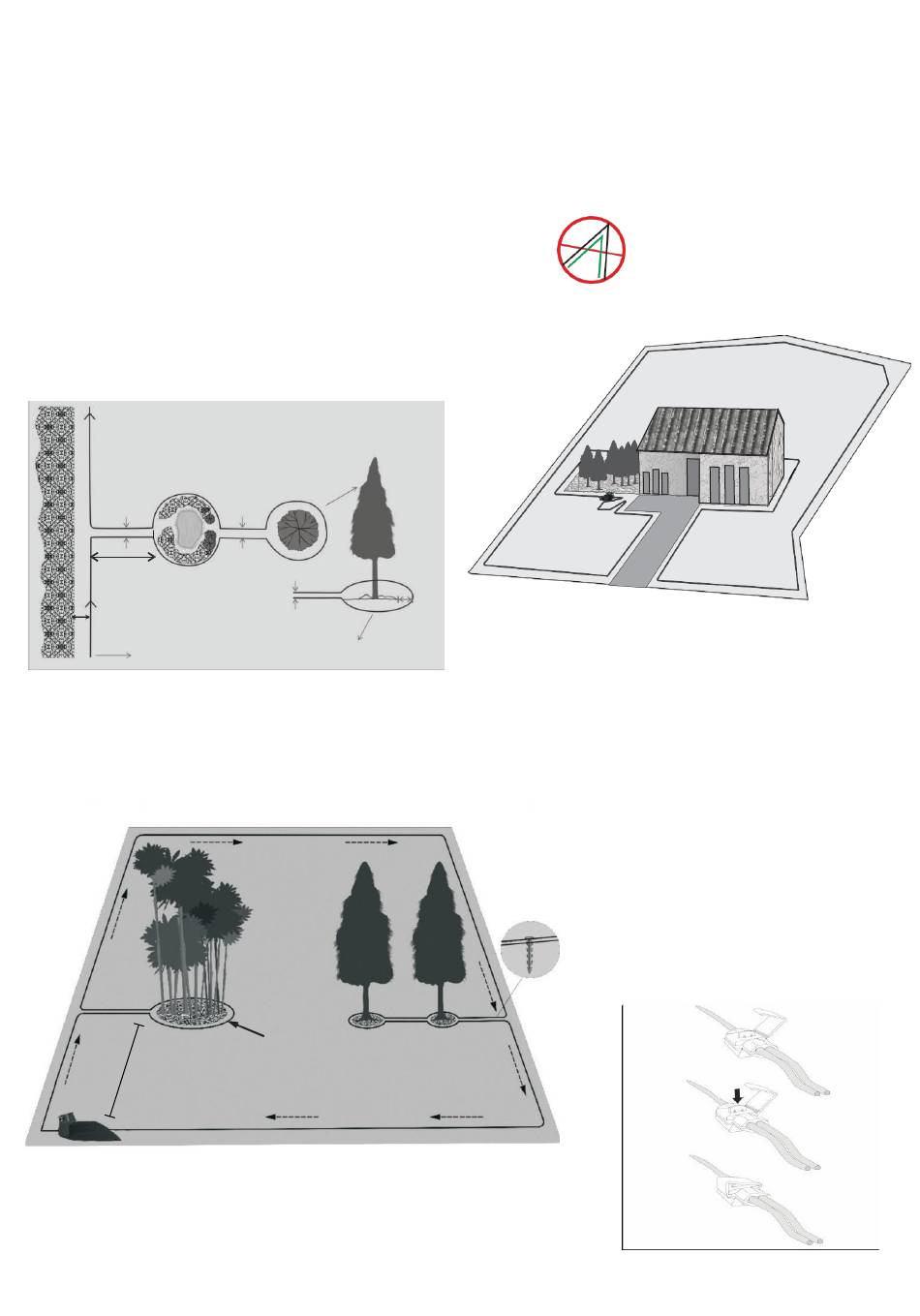

-The distance between charging station and virtual
loop should be 2 meters at least.
Greater
than 2m
3. INSTALLATION
Max: 1cm
Max: 1cm
Virtual wire
Tree with hole or flowers
around require placing a
wire around it
- Care must be taken not to create a corner sharper
shorter than 90 degrees when setting up virtual wire.
A corner sharper less than 90 degrees can cause the
mower to lose track of virtual wire. We can make
greater than 90 degrees corner like follow picture
shows.
Incorrect corner
setup

Proper setup in sharp corners

Virtual wire connecting
- Joining the virtual wire .
If the virtual wire is not long enough
and needs to be spliced: Use supplied
wire connector. It is waterproof and
gives a reliable electrical connection.
To splice: Insert both cable ends in the
connector. Now press down the button on
top of the connector fully. Use a pair of
pliers or the like, as the button on the
connector is difficult to press down by
hand.
1cm
- 8 -
Correct corner set up,
using several angle to
avoid an angle of less
than 90°.
Greater than
2m
