Installation
4.3.2

Direct wall mounting

Proceed as follows to mount the device directly on the wall:
1. 2 Drill 2 holes (see dimensions, →  2,  28)
2. Attach the device to the wall with 2 screws 5 mm (0.2 in).
4.3.3 Pipe mounting
The mounting bracket is suited for pipes with a diameter between
38 to 84 mm (1.5 to 3.3 in).

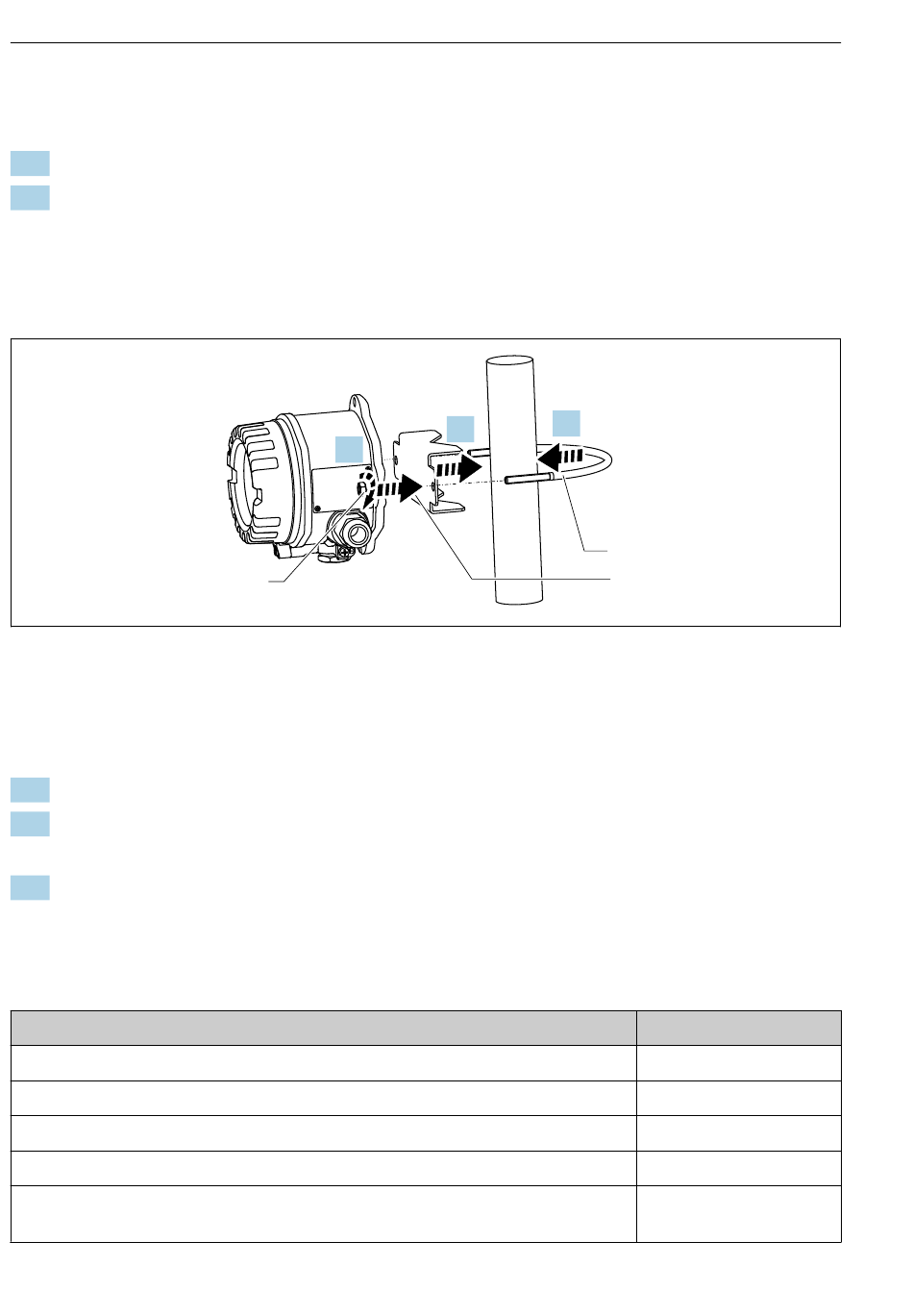

 5 Proceed as follows to mount the device on a pipe:
1 Mounting plate
2 Mounting bracket
3 2 nuts M6
1. Attach the mounting bracket to the pipe
2. For pipes with a diameter 38 to 56 mm (1.5 to 2.2 in)
Position the mounting plate on the mounting bracket
3. Fix the device to the mounting bracket with the two nuts supplied (M6)
4.4

Post-installation check

After installing the device, always run the following final checks:
Device condition and specifications
Is the device damaged?
Is the sealing ring undamaged?
Is the device fixed securely to the wall or mounting plate?
Is the front cover fixed tightly?
Does the device comply with the measurement point specifications, such as ambient
temperature, measurement range etc.?
30
3.
3
1.
2.
2
1
RIA14
A0011258
Notes
Visual check
Visual check
-
-
See Section "Technical data".
