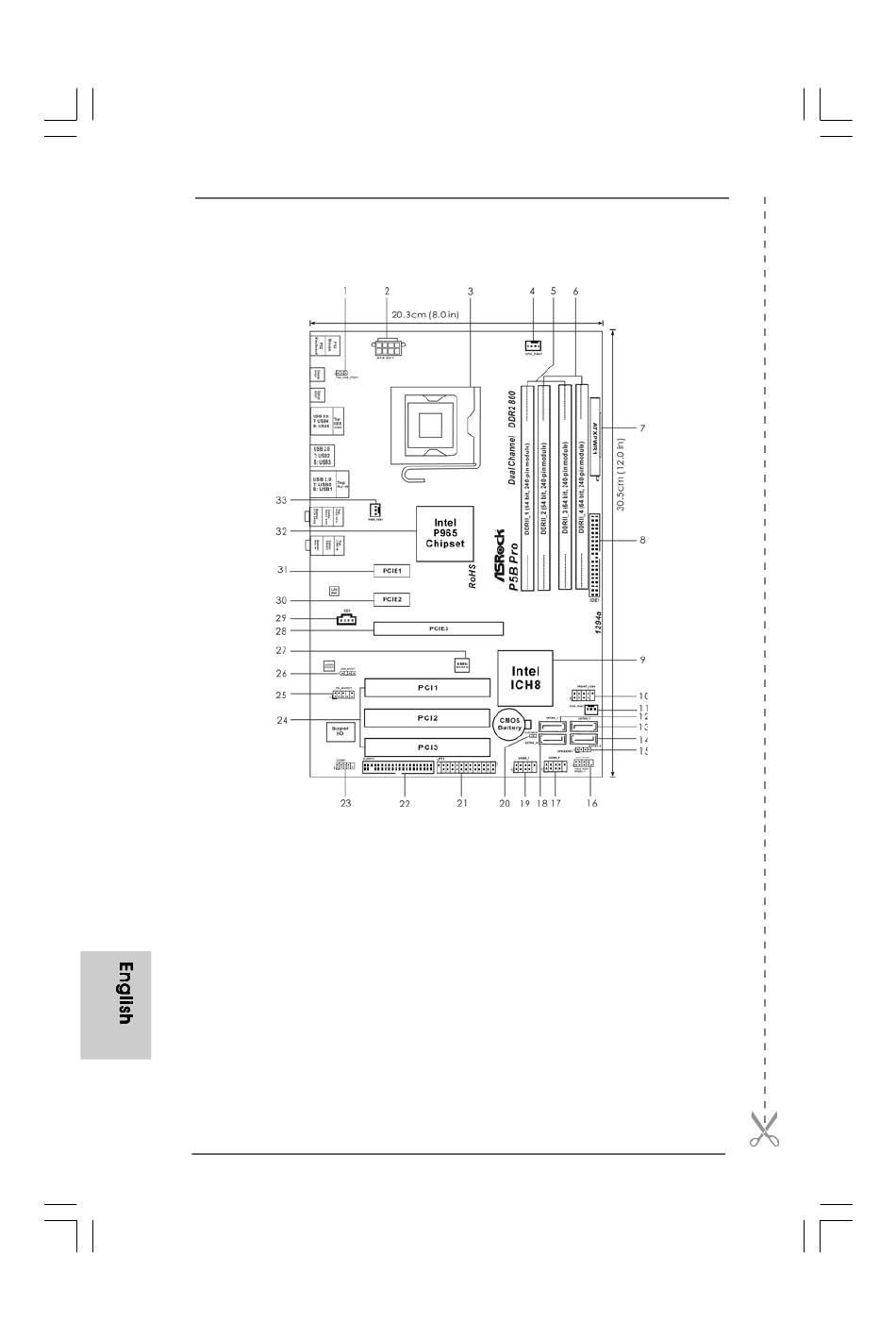

Motherboard Layout
Motherboard Layout
Motherboard Layout
Motherboard Layout
Motherboard Layout
1
PS2_USB_PWR1 Jumper
2
ATX 12V Connector (ATX12V1)
3
775-Pin CPU Socket
4
CPU Fan Connector (CPU_FAN1)
5
2 x 240-pin DDR2 DIMM Slots
(Dual Channel A: DDRII_1, DDRII_3; Yellow)
6
2 x 240-pin DDR2 DIMM Slots
(Dual Channel B: DDRII_2, DDRII_4; Orange)
7
ATX Power Connector (ATXPWR1)
8
IDE1 Connector (IDE1, Blue)
9
South Bridge Controller
10
Front Panel IEEE 1394 Header
(FRONT_1394; Red)
11
Chassis Fan Connector (CHA_FAN1)
12
Third SATAII Connector (SATAII_3; Orange)
13
Primary SATAII Connector (SATAII_1; Red)
14
Secondary SATAII Connector (SATAII_2; Red)
15
Chassis Speaker Header (SPEAKER 1, Purple)
16
System Panel Header (PANEL1, Orange)
2 2 2 2 2
17
USB 2.0 Header (USB8_9, Blue)
18
Fourth SATAII Connector (SATAII_4; Orange)
19
USB 2.0 Header (USB6_7, Blue)
20
Clear CMOS Jumper (CLRCMOS1)
21
Print Port Header (LPT1, Purple)
22
Floppy Connector (FLOPPY1)
23
COM Port Header (COM1)
24
PCI Slots (PCI1- 3)
25
Front Panel Audio Header
(HD_AUDIO1, Lime)
26
HDMI_SPDIF Header (HDMI_SPDIF1, Yellow)
27
BIOS SPI Chip
28
PCI Express x16 Slot (PCIE3)
29
Internal Audio Connector: CD1 (Black)
30
PCI Express x1 Slot (PCIE2)
31
PCI Express x1 Slot (PCIE1)
32
North Bridge Controller
33
Power Fan Connector (PWR_FAN1)
ASRock P5B Pro Motherboard
