Copyright Notice:
Copyright Notice:
Copyright Notice:
Copyright Notice:
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documen-
tation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifica-
tion or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Disclaimer:
Disclaimer:
Disclaimer:
Disclaimer:
Specifications and information contained in this guide are furnished for informational
use only and subject to change without notice, and should not be constructed as a
commitment by ASRock. ASRock assumes no responsibility for any errors or omissions
that may appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or
conditions of merchantability or fitness for a particular purpose. In no event shall
ASRock, its directors, officers, employees, or agents be liable for any indirect, special,
incidental, or consequential damages (including damages for loss of profits, loss of
business, loss of data, interruption of business and the like), even if ASRock has been
advised of the possibility of such damages arising from any defect or error in the guide
or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate"
ASRock Website: http://www.asrock.com
Copyright©2009 ASRock INC. All rights reserved.
Published August 2009

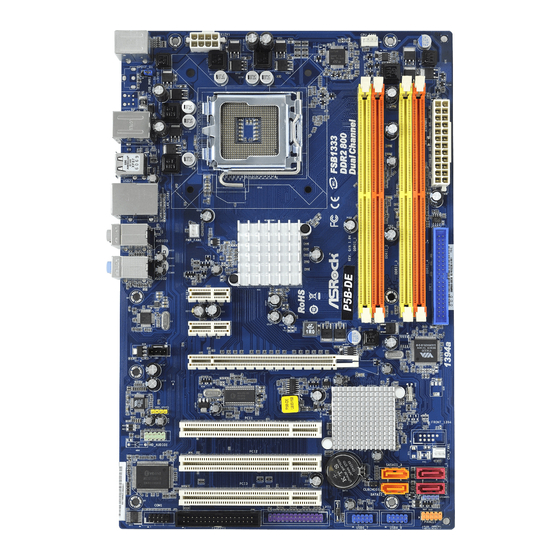

ASRock P5B-DE Motherboard
1 1 1 1 1

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für ASROCK P5B-DE

  • Seite 1 ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
  • Seite 2: Motherboard-Layout

    Secondary SATAII Connector (SATAII_2; Red) PCI Express x1 Slot (PCIE1) Chassis Speaker Header (SPEAKER 1, Purple) North Bridge Controller System Panel Header (PANEL1, Orange) Power Fan Connector (PWR_FAN1) USB 2.0 Header (USB8_9, Blue) 2 2 2 2 2 ASRock P5B-DE Motherboard...
  • Seite 3 See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker (No. 8) (No. 5) (No. 6) (No. 4) 3 3 3 3 3 ASRock P5B-DE Motherboard...
  • Seite 4 In “Advanced Options” screen, select “Independent Headphone”, and click “OK” to save your change. If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only choose to enable either Multi-Streaming function or Side Speaker function. 4 4 4 4 4 ASRock P5B-DE Motherboard...
  • Seite 5: Package Contents

    In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.
  • Seite 6 - 1 x ATA133 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x Print port header - 1 x COM port header - 1 x HDMI_SPDIF header 6 6 6 6 6 ASRock P5B-DE Motherboard...
  • Seite 7 - Microsoft ® Windows ® 2000 / XP / XP 64-bit / Vista Vista 64-bit / Win7 compliant Certifications - FCC, CE, WHQL * For detailed product information, please visit our website: http://www.asrock.com 7 7 7 7 7 ASRock P5B-DE Motherboard...
  • Seite 8 64-bit / Vista / XP 64-bit / XP SP1 or SP2 / 2000 SP4. It is a user-friendly ASRock overclocking tool which allows you to surveil your system by hardware monitor function and overclock your hardware devices to get the best system performance under Windows ®...
  • Seite 9 Please visit our website for the operation procedures of Intelligent Energy Saver. ASRock website: http://www.asrock.com 11. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS ®...
  • Seite 10 CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged. ASRock P5B-DE Motherboard...
  • Seite 11 Use your left hand index finger and thumb to support the load plate edge, engage PnP cap with right hand thumb and peel the cap from the socket while pressing on center of PnP cap to assist in removal. ASRock P5B-DE Motherboard...
  • Seite 12 Step 5. Connect fan header with the CPU fan connector on the motherboard. Step 6. Secure excess cable with tie-wrap to ensure cable does not interfere with fan operation or contact other components. ASRock P5B-DE Motherboard...
  • Seite 13 Channel, for example, installing a pair of memory modules in DDRII_1 and DDRII_2, it is unable to activate the Dual Channel Memory Technology . It is not allowed to install a DDR memory module into DDR2 slot; otherwise, this motherboard and DIMM may be damaged. ASRock P5B-DE Motherboard...
  • Seite 14: Installing A Dimm

    DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated. ASRock P5B-DE Motherboard...
  • Seite 15: Installing An Expansion Card

    Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Step 3. Align the card connector with the slot and press firmly until the card is completely seated on the slot. Step 4. Fasten the card to the chassis with screws. ASRock P5B-DE Motherboard...
  • Seite 16 To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short 2 pins on CLRCMOS1 for 5 seconds. ASRock P5B-DE Motherboard...
  • Seite 17 SATAII_4 SATAII_2 3.0 Gb/s data transfer rate. Serial ATA (SATA) Either end of the SATA data cable Data Cable can be connected to the SATA / SATAII hard disk or the SATAII (Optional) connector on the motherboard. ASRock P5B-DE Motherboard...
  • Seite 18 D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select Chipset Configuration. Set the Front Panel Control option from [Auto] to [Enabled]. ASRock P5B-DE Motherboard...
  • Seite 19 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13. 20-Pin ATX Power Supply Installation ASRock P5B-DE Motherboard...
  • Seite 20 HDMI_SPDIF cable to the (Optional) HDMI_SPDIF header on the motherboard. Then connect the white end (B or C) of HDMI_SPDIF cable to the HDMI_SPDIF connector of HDMI VGA card. A. black end B. white end (2-pin) C. white end (3-pin) ASRock P5B-DE Motherboard...
  • Seite 21 PCI / PCIE buses are in the fixed mode so that FSB can operate under a more stable overclocking environment. Please refer to the warning on page 8 for the possible overclocking risk before you apply Untied Overclocking Technology. ASRock P5B-DE Motherboard...
  • Seite 22 ROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double- click on the file “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus. ASRock P5B-DE Motherboard...
  • Seite 23: Einführung

    1. Einführung 1. Einführung 1. Einführung Wir danken Ihnen für den Kauf des ASRock P5B-DE Motherboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit.
  • Seite 24: Spezifikationen

    - 6 x Standard-USB 2.0-Anschlüsse - 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED) - HD Audiobuchse: Lautsprecher seitlich / Lautsprecher hinten / Mitte/Bass / Audioeingang/ Lautsprecher vorne / Mikrofon (siehe VORSICHT 6) ASRock P5B-DE Motherboard...
  • Seite 25 Multianpassung - Unterstützt Smart BIOS Support-CD - Treiber, Dienstprogramme, Antivirussoftware (Probeversion) Einzigartige - ASRock OC Tuner (siehe VORSICHT 9) Eigenschaft - Intelligent Energy Saver (Intelligente Energiesparfunktion) (siehe VORSICHT 10) - Sofortstart - ASRock Instant Flash (siehe VORSICHT 11) - ASRock OC DNA (siehe VORSICHT 12)
  • Seite 26 Vor Installation der SATAII-Festplatte an den SATAII-Anschluss lesen Sie bitte “Setup-Anleitung für SATAII-Festplatte” auf Seite 26 der “Bedienungsanleitung” auf der Support-CD, um Ihre SATAII-Festplatte dem SATAII-Modus anzugleichen. Sie können die SATA-Festplatte auch direkt mit dem SATAII-Anschluss verbinden. ASRock P5B-DE Motherboard...
  • Seite 27 Dateisystem FAT32/16/12 benutzen muss. 12. Allein der Name – OC DNA* – beschreibt es wörtlich, was die Software zu leisten vermag. OC DNA ist ein von ASRock exklusiv entwickeltes Dienstprogramm, das Nutzern eine bequeme Möglichkeit bietet, Übertaktungseinstellungen aufzuzeichnen und sie Anderen mitzuteilen.
  • Seite 28 Gemäß einer Empfehlung von Intel muss eine EuP-fähige Stromversorgung dem Standard entsprechen, was bedeutet, dass bei einem Stromverbrauch von 100 mA die 5-Volt-Standby-Energieeffizienz höher als 50% sein sollte. Für die Wahl einer EuP-fähigen Stromversorgung empfehlen wir Ihnen, weitere Details beim Hersteller der Stromversorgung abzufragen. ASRock P5B-DE Motherboard...
  • Seite 29: Einstellung Der Jumper

    Systeminformationen wie Systemkennwort, Datum, Zeit und System-Setupeinstellungen. Um die Einstellungen zu löschen und Default-Werte wiederherzustellen, schalten Sie den Computer aus, ziehen Sie den Netzstecker und überbrücken Sie 2-pin von CLRCMOS1 mithilfe des Jumpers für 5 Sekunden. ASRock P5B-DE Motherboard...
  • Seite 30: Integrierte Header Und Anschlüsse

    (SATAII_1: siehe S.2, Punkt 12) unterstützen interne SATA- (SATAII_2: siehe S.2, Punkt 13) SATAII_3 SATAII_1 oder SATA II-Festplatten. Die (SATAII_3: siehe S.2, Punkt 11) aktuelle SATAII-Schnittstelle (SATAII_4: siehe S.2, Punkt 17) SATAII_4 SATAII_2 ermöglicht eine Datenübertragungsrate bis 3,0 Gb/s. ASRock P5B-DE Motherboard...
  • Seite 31 MPEG-Karten mit Ihrem System zu verbinden. Anschluss für Audio auf Dieses Interface zu einem der Gehäusevorderseite Audio-Panel auf der Vorderseite Ihres Gehäuses, ermöglicht (9-Pin HD_AUDIO1) Ihnen eine bequeme (siehe S.2 - No. 24) Anschlussmöglichkeit und Kontrolle über Audio-Geräte. ASRock P5B-DE Motherboard...
  • Seite 32 (3-pin PWR_FAN1) (siehe S.2, No. 32) CPU-Lüfteranschluss Verbinden Sie das CPU - 4 3 2 1 Lüfterkabel mit diesem (4-pin CPU_FAN1) Anschluss und passen Sie den (siehe S.2 - No. 4) schwarzen Draht dem Erdungsstift an. ASRock P5B-DE Motherboard...
  • Seite 33 Sie bitte Ihre Energieversorgung zusammen mit dem Pin 1 und Pin 5 ein. Installation der 4-Pin ATX 12V Energieversorgung COM-Anschluss-Header Dieser COM-Anschluss- Header wird verwendet, um (9-pin COM1) ein COM-Anschlussmodul zu (siehe S.2 - No. 22) unterstützen. ASRock P5B-DE Motherboard...
  • Seite 34 Ende (A) des (Option) HDMI_SPDIF-Kabels mit dem HDMI_SPDIF-Anschluss am Motherboard. Schließen Sie dann das weiße Ende (B oder C) des HDMI_SPDIF-Kabels an den HDMI_SPDIF-Anschluss der HDMI-VGA-Karte an. A. Schwarzes Ende B. Weißes Ende (zweipolig) C. Weißes Ende (dreipolig) ASRock P5B-DE Motherboard...
  • Seite 35 ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menügesteuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert. ASRock P5B-DE Motherboard...
  • Seite 36: Contenu Du Paquet

    1. Introduction 1. Introduction Merci pour votre achat d’une carte mère ASRock P5B-DE, une carte mère très fiable produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste conformément à l’engagement d’ASRock sur la qualité...
  • Seite 37 - 6 x ports USB 2.0 par défaut - 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et LED VITESSE) - Prise HD Audio: Haut-parleur latéral / Haut-parleur arrière / Central /Basses / Entrée Ligne / Haut-parleur frontal / Microphone (voir ATTENTION 6) ASRock P5B-DE Motherboard...
  • Seite 38 - Prise en charge du Smart BIOS CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (Version d’essai) Caractéristique - Tuner ASRock OC (voir ATTENTION 9) unique - Économiseur d’énergie intelligent (voir ATTENTION 10) - l'Instant Boot - ASRock Instant Flash (voir ATTENTION 11) - ASRock OC DNA (voir ATTENTION 12) - L’accélérateur hybride:...
  • Seite 39 Guide « Installation du disque dur SATAII » à la page 26 du « Manuel de l’utilisateur » qui se trouve sur le CD de support pour régler votre lecteur de disque dur SATAII au mode SATAII. Vous pouvez aussi directement connecter le disque dur SATA au connecteur SATAII. ASRock P5B-DE Motherboard...
  • Seite 40 Energy Saver. Site Web ASRock : http://www.asrock.com 11. O ASRock Instant Flash é um utilitário de flash do BIOS incorporado na memória Flash ROM. Esta prática ferramenta de actualização do BIOS permite-lhe actualizar o BIOS do sistema sem necessitar de entrar nos ®...
  • Seite 41 Pour améliorer la dissipation de la chaleur, n’oubliez pas de mettre de la pâte thermique entre le CPU le dissipateur lors de l’installation du PC. ASRock P5B-DE Motherboard...
  • Seite 42 Pour restaurer les paramètres système à leur valeur par défaut, éteignez l’ordinateur et débranchez le câble d’alimentation. Puis placez un cavalier sur les pins CLRCMOS1 pendant 5 secondes. N’oubliez pas de retirer le cavalier avant après avoir restauré le CMOS. ASRock P5B-DE Motherboard...
  • Seite 43 SATAII_3 SATAII_1 SATA ou SATAII pour les (SATAII_3: voir p.2 fig. 11) dispositifs de stockage (SATAII_4: voir p.2 fig. 17) SATAII_4 SATAII_2 interne. L’interface SATAII actuelle permet des taux transferts de données pouvant aller jusqu’à 3,0 Go/s. ASRock P5B-DE Motherboard...
  • Seite 44 DVD-ROM, un tuner TV ou une carte MPEG. Connecteur audio panneau C’est une interface pour un câble avant audio en façade qui permet le branchement et le contrôle (HD_AUDIO1 br. 9) commodes de périphériques (voir p.2 No. 24) audio. ASRock P5B-DE Motherboard...
  • Seite 45 (PWR_FAN1 br. 3) (voir p.2 No. 32) Connecteur du ventilateur Veuillez connecter le câble de 4 3 2 1 de l’UC ventilateur d’UC sur ce connecteur et brancher le fil (CPU_FAN1 br. 4) (voir p.2 No. 4) ASRock P5B-DE Motherboard...
  • Seite 46 1 et la broche 5. 4-Installation d’alimentation à 4 broches ATX 12V En-tête de port COM Cette en-tête de port COM est utilisée pour prendre en charge (COM1 br.9) un module de port COM. (voir p.2 No. 22) ASRock P5B-DE Motherboard...
  • Seite 47 HDMI_SPDIF de la carte-mère. Connectez ensuite l’extrémité blanche (B ou C) du câble HDMI_SPDIF au connecteur HDMI_SPDIF de la carte VGA HDMI. A. extrémité noire B. extrémité blanche C. extrémité blanche (2 briches) (3 briches) ASRock P5B-DE Motherboard...
  • Seite 48 CD-ROM. Le Menu principal s’affiche automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, localisez dans le CD technique le fichier “ASSETUP.EXE” dans le dossier BIN et double-cliquez dessus pour afficher les menus. ASRock P5B-DE Motherboard...
  • Seite 49: Contenuto Della Confezione

    Grazie per aver scelto una scheda madre ASRock P5B-DE, una scheda madre affidabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità e della resistenza.
  • Seite 50 / bassi / ingresso linea / cassa frontale / microfono (vedi ATTENZIONE 6) Connettori - 4 x connettori SATAII 3.0Go/s (Non supporta le funzioni “RAID” e “Collegamento a caldo”) (vedi ATTENZIONE 7) - 1 x connettori ATA133 IDE (supporta fino a 2 dispositivi IDE) ASRock P5B-DE Motherboard...
  • Seite 51 Compatibi- - Microsoft ® Windows ® 2000 / XP / XP 64 bit / Vista lità SO Vista 64 bit / Win7 Certificazioni- FCC, CE, WHQL * Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com ASRock P5B-DE Motherboard...
  • Seite 52 SATAII per la modalità SATAII. È anche possibile connettere il disco rigido SATA direttamente al connettore SATAII. ® La Gestione Risorse per USB 2.0 funziona perfettamente con Microsoft ® Windows Vista 64-bit / Vista / XP 64 bit / XP SP1; SP2/2000 SP4. ASRock P5B-DE Motherboard...
  • Seite 53 Si tratta di uno strumento di sicronizzazione ASRock di face uso in grado di implementare il controllo del sistema tramite la funzione di hardware monitor e sincronizzare le Vostre unita‘ hardware per ottenere la migliore prestazione in Windows ® . Prego visitare il nostro sito Internet per ulteriori dettagli circa l‘uso del Sintonizzatore ASRock OC.
  • Seite 54 Per pulire I parametri di sistema e resettare ai parametri di default, spegnere il computer e scollegare l’alimentatore, poi collegare il jumper sul CLRCMOS1 per 5 secondi. ASRock P5B-DE Motherboard...
  • Seite 55 (SATAII_3: vedi p.2 Nr. 11) funzioni di archiviazione (SATAII_4: vedi p.2 Nr. 17) SATAII_4 SATAII_2 interna. ATAII (SATAII) suppo- rtano cavi SATAII per dispositivi di memoria interni. L’interfaccia SATAII attuale permette velocità di trasferimento dati fino a 3.0 Gb/s. ASRock P5B-DE Motherboard...
  • Seite 56 (CD1: vedi p.2 Nr. 28) ROM,TV tuner, o schede MPEG. Connettore audio sul È un’interfaccia per il cavo del pannello frontale pannello audio. Che consente connessione facile e controllo (9-pin HD_AUDIO1) dei dispositivi audio. (vedi p.2 Nr. 24) ASRock P5B-DE Motherboard...
  • Seite 57 (3-pin PWR_FAN1) (vedi p.2 Nr. 32) Connettore ventolina CPU Collegare il cavo della ventolina 4 3 2 1 CPU a questo connettore e far (4-pin CPU_FAN1) combaciare il filo nero al pin (vedi p.2 Nr. 4) terra. ASRock P5B-DE Motherboard...
  • Seite 58 4-pin ATX 12V, prego collegare la presa elettrica al Pin 1 e Pin 5. Installazione elettrica 4-Pin ATX 12V Collettore porta COM Questo collettore porta COM è utilizzato per supportare il (9-pin COM1) modulo porta COM. (vedi p.2 Nr. 22) ASRock P5B-DE Motherboard...
  • Seite 59 HDMI_SPDIF all’intestazione HDMI_SPDIF sulla scheda madre. Quindi collegare l’estremità bianca (B o C) del cavo HDMI_SPDIF al connettore HDMI_SPDIF della scheda HDMI VGA. A. estremità nera B. estremità bianca (2 pin) C. estremità bianca (3 pin) ASRock P5B-DE Motherboard...
  • Seite 60 Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul file “ASSETUP.EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù. ASRock P5B-DE Motherboard...
  • Seite 61: Contenido De La Caja

    1. Introducción 1. Introducción Gracias por su compra de ASRock P5B-DE placa madre, una placa de confianza producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock.
  • Seite 62 - 1 x Puerto LAN RJ-45 con LED (LED de ACCIÓN/ENLACE y LED de VELOCIDAD) - Conexión de audio: Altavoz lateral / Altavoz trasero / Central/Bajos / Entrada de línea / Altavoz frontal / Micrófono (ver ATENCIÓN 6) ASRock P5B-DE Motherboard...
  • Seite 63 CD de soport - Controladores, Utilerías, Software de Anti Virus (Versión de prueba) Característica - Sintonizador de ASRock OC (vea ATENCIÓN 9) Única - Administrador de energía inteligente (vea ATENCIÓN 10) - Instant Boot - ASRock Instant Flash (vea ATENCIÓN 11) - ASRock OC DNA (vea ATENCIÓN 12)
  • Seite 64 “Guía de instalación de discos duros SATAII” en la página 26 del “Manual de usuario” que se incluye en el CD de soporte para configurar su disco duro SATAII en modo SATAII. También puede conectar un disco duro SATA directamente al conector SATAII. ASRock P5B-DE Motherboard...
  • Seite 65 Intelligent Energy Saver. Sitio web de ASRock: http://www.asrock.com 11. ASRock Instant Flash es una utilidad de programación del BIOS que se encuentra almacenada en la memoria Flash ROM. Esta sencilla herramienta de actualización de BIOS le permitirá actualizar el BIOS del sistema sin necesidad de acceder a ningún sistema operativo, como MS-DOS o...
  • Seite 66 CPU de la placa base funciona apropiadamente y desconecte el cable de alimentación, a continuación, vuelva a conectarlo. Para mejorar la disipación de calor, acuérdese de aplicar thermal grease entre el procesador y el disipador de calor cuando usted instala el sistema de PC. ASRock P5B-DE Motherboard...
  • Seite 67 Para limpiar y reconfigurar los parametros del sistema a la configuración de la fábrica, por favor apague el computador y desconecte el cable de la fuente de electricidad, ponga en cortocircuito los pins de CLRCMOS1 por más que 5 segundos usando un jumper cap. ASRock P5B-DE Motherboard...
  • Seite 68 HDDs SATA o SATAII para (SATAII_2: vea p.2, N. 13) SATAII_3 SATAII_1 dispositivos de almacenamiento (SATAII_3: vea p.2, N. 11) interno. La interfaz SATAII (SATAII_4: vea p.2, N. 17) SATAII_4 SATAII_2 actual permite una velocidad de transferencia de 3.0 Gb/s. ASRock P5B-DE Motherboard...
  • Seite 69 (CD1: vea p. 2, N. 28) tarjeta MPEG. Conector de audio de Este es una interface para panel frontal cable de audio de panel frontal que permite conexión y control (9-pin HD_AUDIO1) conveniente de apparatos de (vea p.2, N. 24) Audio. ASRock P5B-DE Motherboard...
  • Seite 70 Conector del ventilador Conecte el cable del ventilador 4 3 2 1 de la CPU de la CPU a este conector y haga coincidir el cable negro (4-pin CPU_FAN1) con el conector de tierra. (vea p.2, N. 4) ASRock P5B-DE Motherboard...
  • Seite 71 Pin 1 y Pin 5. Instalación de Fuente de Energía de 4-Pin ATX 12V Cabezal del puerto COM Este cabezal del puerto COM se utiliza para admitir un (9-pin COM1) módulo de puerto COM. (vea p.2, N. 22) ASRock P5B-DE Motherboard...
  • Seite 72 HDMI_SPDIF de la placa base. Conecte después el extremo blanco (B o C) del cable HDMI_SPDIF en el conector HDMI_SPDIF de la tarjeta VGA HDMI. A. Extremo negro B. Extremo blanco (2 patillas) C. Extremo blanco (3 patillas) ASRock P5B-DE Motherboard...
  • Seite 73 Para iniciar la instalación, ponga el CD en el lector de CD y se desplegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el archivo “ASSETUP.EXE” para iniciar la instalación. ASRock P5B-DE Motherboard...
  • Seite 74 ASRock P5B-DE Motherboard...
  • Seite 75 ® ® ® ® ® ® ® ® ASRock P5B-DE Motherboard...
  • Seite 76 ® ® ASRock P5B-DE Motherboard...
  • Seite 77 ® ® ® ® ® ® ® ASRock P5B-DE Motherboard...
  • Seite 78 ASRock P5B-DE Motherboard...
  • Seite 79 ASRock P5B-DE Motherboard...
  • Seite 80 SATAII_3 SATAII_1 SATAII_4 SATAII_2 ASRock P5B-DE Motherboard...
  • Seite 81 4 3 2 1 ASRock P5B-DE Motherboard...
  • Seite 82 ASRock P5B-DE Motherboard...
  • Seite 83 ® ® ASRock P5B-DE Motherboard...
  • Seite 84 ASRock P5B-DE Motherboard...
